。Description。Who doesn't occasionally need power regulation? We certainly do， so we've designed the SparkFun BabyBuck Regulator Breakout to help us with just such a task. Featuring the AP63203 from Diodes Inc， this breakout board takes advantage of a 2A synchronous buck converter that has a wide input voltage range of 3.8V to 32V and fully integrated 125mΩ high-side power MOSFET/68mΩ lowside power MOSFET to provide high-efficiency step-down DC/DC conversion. All of this snuggled up in a low-profile， TSOT26 package that's integrated into a 0.4in by 0.5in board.。Unlike it's sibling， the BabyBuck sacrifices power option flexibility for space. Don't worry， though， because you can still use the plated through holes for input and output power. With some simple right-angle headers， you'll be up and running in no time.。Frequency Spread Spectrum(FSS)reduces EMI and a proprietary gate driver scheme resists switching node ringing without sacrificing MOSFET turn-on and turn-off times， which further erases high-frequency radiated EMI noise.。Get Started with the SparkFun Buck Regulator Hookup Guide。Features。Low-Profile Footprint。VIN 3.8V to 32V。VOUT 3.3V。Up to 2A Continuous Output Current。0.8V ± 1% Reference Voltage。22μA Ultralow Quiescent Current。Switching Frequency - 1.1MHz。Supports Pulse Frequency Modulation(PFM)。Up to 80% Efficiency at 1mA Light Load。Up to 88% Efficiency at 5mA Light Load。Fixed Output Voltage - 3.3V。Proprietary Gate Driver Design for Best EMI Reduction。Frequency Spread Spectrum(FSS)to Reduce EMI。Precision Enable Threshold to Adjust UVLO。Protection Circuitry。Overvoltage Protection。Cycle-by-Cycle Peak Current Limit。Thermal Shutdown

Description。The Raspberry Pi Compute Module 3+ Lite contains the guts of a Raspberry Pi 3 Model B+(the BCM2837 processor and 1GB LPDDR2 RAM). This module allows a designer to leverage the Raspberry Pi hardware and software stack in their own custom systems and form factors. In addition this module has extra IO interfaces over and above what is available on the Raspberry Pi model A/B boards， opening up more options for the designer.。This is all integrated onto a small(67.6mm×31mm)board that fits into a standard DDR2 SODIMM connector. You get the full flexibility of the BCM2837 SoC(which means that many more GPIOs and interfaces are available than with a standard Raspberry Pi)， and designing the Module into a custom system should be relatively straightforward because all the tricky bits have been put onto the Module itself.。The CM3+ Lite product is the same as CM3+ except the eMMC Flash is not fitted， and the SD/eMMC interface pins are available for the user to connect their own SD/eMMC device. Note that the CM3+ is electrically identical and， with the exception of higher CPU z-height， physically identical to the legacy CM3 products.。Note：The CM3+ modules require a software/firmware image dated November 2018 or newer to function correctly.。Features。Broadcom BCM2837B0， Cortex-A53(ARMv8)64-bit SoC @ 1.2GHz。1GB LPDDR2 SDRAM。Operating Supply Voltage：1.8V， 3.3V。Minimum Operating Temperature：-25C。Maximum Operating Temperature：+80C。HDMI， MIPI， USB， and GPIO interfaces on edge connector

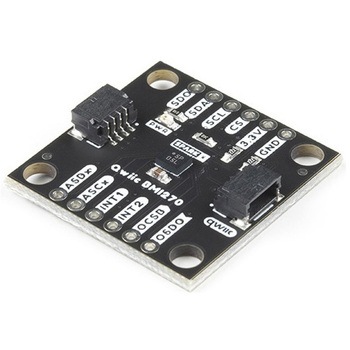

Description。The BMI270 from Bosch Sensortec is a highly integrated， low power IMU designed for wearable， smart clothing and AR/VR applications. Not only does the BMI270 comprise a fast and sensitive accelerometer and gyro pair， but it also contains a number of intelligent， on-chip motion-triggered interrupt features.。Our Qwiic BMI270 IMU Breakout makes it easy to add this sensor to your project using our solderless Qwiic cables and compatible controllers. If you still prefer to use a breadboard， don't worry， we've still broken out all IO pins to 0.1" spaced pin-headers along the sides of the board. On-board solder jumpers allow you to easily select the device address， remove the I2C pull-ups， and disable the power LED if need be.。The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.。Experimental Product：SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to our forum for support or to ask a question.。Features。16-bit 3-axis accelerometer with ±2g/±4g/±8g/±16g range。16-bit 3-axis gyroscope with ±125dps/±250dps/±500dps/±1000dps/±2000dps range。400kHz AUX sensor interface with hardware synchronization。1.8v and 3.3v operation。Ultra-low current consumption。Smart features。Significant motion / Any motion / Motion detect。No motion / Stationary detect。Wrist wear wakeup / Wrist worn step counter。Activity change recognition。Wrist gesture recognition
