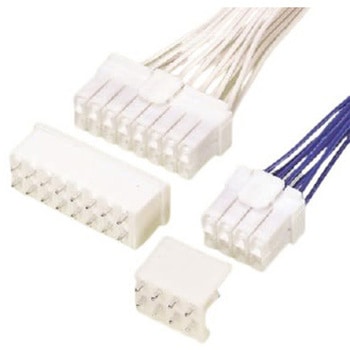

JST 基板接続用ピンヘッダ 4極 5.0mm 2列 S04P-XL-HDB (LF)(SN)
仕様Reliable housing construction Since all contacts are individually and totally surrounded by housing walls， and since the connector pitch is 5.0mm (.197″)， the creep and space distances between the contacts are large enough to meet stringent Safety requirements. Easy contact insertion The contacts can be inserted into the housing easily and smoothly. Box-shaped contact The box-shaped contact used successfully in the VH and NH connectors is also used in the XL connectors. This contact is adaptable to a wide range of applications， from low-voltage， low-current signal circuits to power supply circuits. Two kinds of connections The XL connectors can be used for wire-to-wire connection and for printed circuit board connection.
ピッチ(mm)5
極数4
シリーズXL
定格電流(A)10
行数2
材質(コンタクト)真鍮
RoHS指令(10物質対応)対応
定格電圧(kV)150
結線方法はんだ
シュラウド/アンシュラウドシュラウド
実装タイプスルーホール実装
接続方向ライトアングル
内容量1袋(5個)
