押しボタンスイッチ モーメンタリ パネルマウント 双極双投 DPDT

Actuator button is not supplied with the switch and must be ordered separately
For a suitable 15mm black button see stock number ； 7830053 7830053 Momentary switches have the momentary state displayed in brackets， e.g
on - (on)
TE Connectivity - MPGシリーズスイッチ

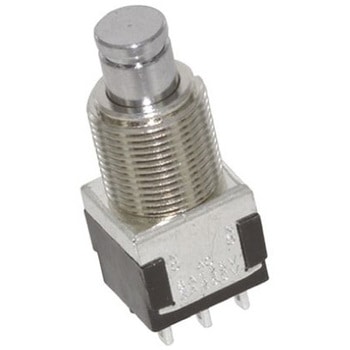

TE Connectivity MPG series of miniature Push Button switches are available in a choice of SPDT or DPDT contact configurations with momentary switching function and solder terminals
MPG switches are designed to be panel mounted
They have a contact resistance less than 10mΩ and an insulation resistance greater than 1000MΩ
They are epoxy sealed with a flux proof construction
Accessories for the MPG miniature Push Button switches include a brass chromium-plated bezel and a 15mm diameter black actuator button， see stock numbers ； 134-2462 134-2462 and ； 7830053 7830053 respectively
モメンタリ又はオルタネートスイッチ機能 最大スイッチ定格: 6 A @ 125 V ac、3 A @ 250 V ac 銀クラッド銅に金フラッシュのコンタクト M6ブッシュ はんだ端子 接触抵抗 ；最大10 mΩ 絶縁強度: 1500 V ac、1分間 絶縁抵抗: 1000 MΩ以上 機械的寿命 50，000回 動作温度範囲: -20 → +80℃
