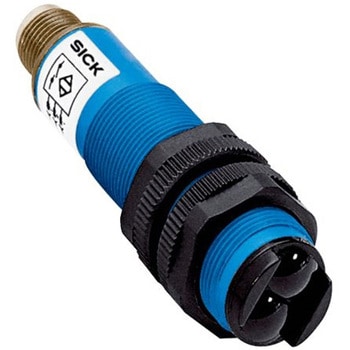

光電センサ 円柱 検出範囲 3 → 200 mm

光電センサ 円柱 検出範囲 3 → 200 mm - SICK

OverviewThe V18 product family has the widest range of M18 sensors on the market
The user has the possibility to choose from a number of options: sensors with or without adjustments, plastic or metal boxes and straight or angled
This makes this product family the ideal solution for countless applications
Some of these applications are the detection of transparent glass in packaging machines, the detection of parts on presses or the detection of products on conveyors.At a glanceCylindrical photoelectric sensors in standard M18 housing The largest range of M18 photoelectric sensors Available with or without the possibility of adjustment, with plastic or metal housing and with straight or angled shape
3- or 4-wire versions and AC or DC types are also availableYour BenefitSimple standard shape simplifies assembly, adjustment and replacement Cost-effective solution for standard applications in storage, material handling and the packaging industry The diversity of sensor types gives the user every possibility to find the best solutionNote

仕様●センサーのスタイル:円柱●検出タイプ:エネルギー用●検出範囲:3 → 200 mm●出力タイプ:PNP●電気的接続:M12オスコネクタ●最大DC電圧:30V●接続方式:コネクタ●ライトソース:LED●IP保護等級:IP67●電流 Max:100 mA●応答時間:0.002 秒●材質:プラスチック●ねじの呼び:M12●コード番号:231-1898アズワン品番65-7303-64内容量1個
1件中 11各品番毎の詳細は注文コードをクリックしてください
注文コード
品番
参考基準価格 (税別)販売価格(税別)販売価格(税込)
出荷目安
数量
69891668VTE18-4P2740
27,200
26,980
29,678(税込)
7日以内出荷
返品不可
各品番毎の詳細は注文コードをクリックしてください
