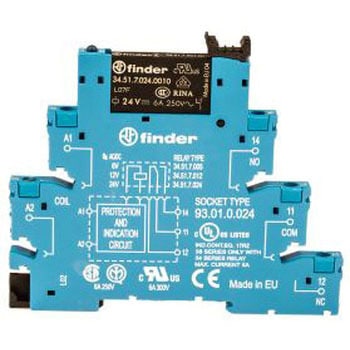

Finder インターフェイスリレー 24V ac/dc 38 Series

コイル電圧 = 24V ac/dc
接点構成 = SPDT
取り付けタイプ = DINレール
極数 = 1
ターミナルタイプ = ねじ
奥行き = 75.6mm
高さ = 87.9mm
長さ = 6.2mm
シリーズ = 38 Series
接点材質 = 銀合金
入力電流 = 12mA
寸法 = 6.2 x 75.6 x 87.9mm
Finder Interface Relay ModuleThe Finder interface relay module is an innovative， ultra-compact electromechanical device equipped with a 24AC/DC coil and an SPDT 1C/O contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC. The high number of approvals make it useful for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space-saving is essential.Features and BenefitsThe contact rated voltage is 250VAC and switching current of 6A The input and output circuits and the voltage supply are completely electrically isolated Instant ejection of relay by plastic retaining clip Integral coil indication and protection circuit Operating temperature ranges from -40℃ to 70℃ AgNi contact material Screw type terminal connection DIN rail type mountingApplicationsPackaging machines Traffic light controls Vending machines Programmable controllers Control panels for electrical distribution Labelling machine Bottling plants Industrial process control Motor control applications Electrical isolation Signal matching between electronic controlsCertificationsIP20 rated CE certified CSA certified EAC certified cRUus certified
