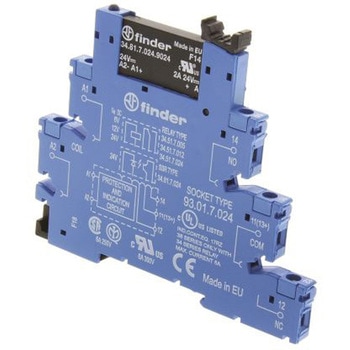

Finder インターフェイスリレー 24V dc 38 Series 1.5 → 33V dc

コイル電圧 = 24V dc
接点構成 = SPST
取り付けタイプ = DINレール
ターミナルタイプ = ねじV dc
奥行き = 75.6mm
高さ = 87.9mm
長さ = 6.2mm
シリーズ = 38 Series
入力電流 = 10.5mA
動作時間 = 0.2ms
Finder Interface Relay ModuleThe Finder interface relay module is an innovative， ultra-compact electromechanical device equipped with a 24VDC coil and an SPNO contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC. The high number of approvals make it useful for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space-saving is essential.Features and BenefitsThe contact rated voltage is 24VDC and switching current of 6A The input and output circuits and the voltage supply are completely electrically isolated Instant ejection of relay by plastic retaining clip Integral coil indication and protection circuit Silent high speed switching Long electrical life Operating temperature ranges from -20℃ to 55℃ AgNi contact with optionally hard gold-plating available Screw type terminal connection DIN rail type mountingApplicationsPackaging machines Traffic light controls Vending machines Programmable controllers Control panels for electrical distribution Labelling machine Bottling plants Industrial process control Motor control applications Electrical isolation Signal matching between electronic controlsCertificationsIP20 rated CE certified CSA certified EAC certified cRUus certified
