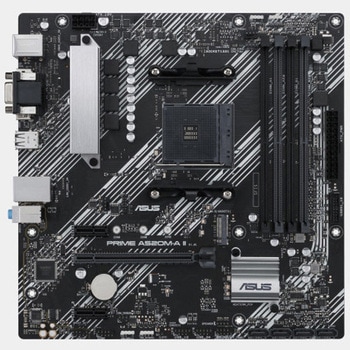

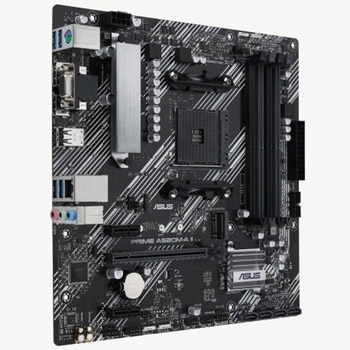

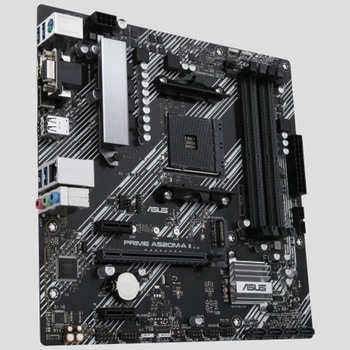

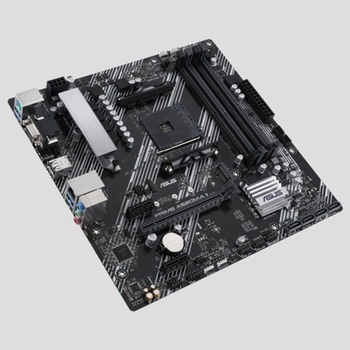

ASUS PRIME A520M-A II 第3世代AMD Ryzen対応 mATX マザーボード

BIOS：128 Mb Flash ROM， UEFI AMI BIOS、ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- VRM heatsink design

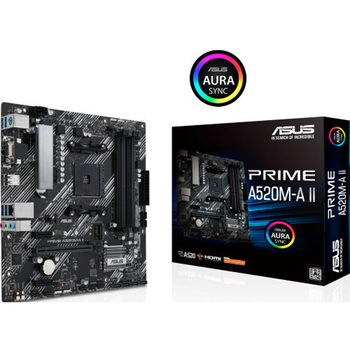

AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack detection， Multi-streaming， Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

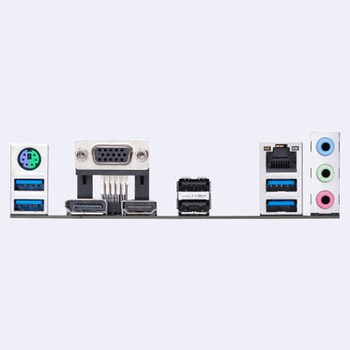

Rear USB:Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
M.2 slot (Key M)， type 2242/2260/2280 (supports PCIe 3.0×4 & SATA modes)
AMD A520 Chipset
4 x SATA 6Gb/s ports
Support Raid 0， 1， 10

1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60Hz)
1 x D-Sub
Graphics specifications may vary between CPU types

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
