DescriptionThis is a two pack of Zrn coated flat mills from Carbide 3D that are perfect for fabricating with aluminum. Each mill in this pack features a cutting and shank diameter of 0.25 inches and a cutting length of 0.75 inches. These cutters really are great for precision 3D machining and fabrication.These cutters are coated with Zirconium Nitride(Zrn). This is a specialty coating which makes it most suitable for temperature sensative materials. ZrN had excellent corrosion-resistance， lubricity and hardness to suit many applications. This coating has a unique ability to reduce the build-up edge on cutting tools which results in a better surface finish. ZrN works well for machining Titanium and Aluminum Alloys， Nickel， Brass， Copper， Cast Iron and Zinc. Each cutter is made of solid carbide to ensure long lasting use.FeaturesCutting Diameter：0.25"Cutting Length：0.75"Shank Diameter：0.25"3 Flute， center cutting2.5" Overall Length

DescriptionThe MCP9600 Breakout is a high accuracy Thermocouple Amplifier equipped with an I2C interface， accessed over our Qwiic system. Inside the chip are two temperature sensors， one for the thermocouple itself(the hot junction)and one for the chip itself(the cold junction). As a result， the MCP9600 can read both the ambient temperature and the temperature of whatever you're trying to measure! The MCP9600 can do both with a resolution of 0.0625℃， and an accuracy of ±1.5℃(worst-case). The MCP9600 Thermocouple Amplifier is one of our many Qwiic compatible boards! Simply plug and go. No soldering， no figuring out which is SDA or SCL， and no voltage regulation or translation required!This version of the board comes equipped with screw terminals to allow for your own Thermocouple's wiring to be hooked up with the turn of a screw. This makes it perfect for a variety of applications， from measuring the temperature of your Crock-Pot to making sure your backyard induction furnace is up to temperature.In addition， the MCP9600 has four on-board temperature alerts that you can configure! Instead of constantly polling the sensor over I2C， you can set a temperature limit to trigger an interrupt when the temperature reaches a certain value. This frees up your microcontroller and your I2C bus to do more important things. It's also possible to put the MCP9600 into alternate operation modes in order to save power. The sensor supports a burst mode， where it will take a specified number of samples， return the results， and then go to sleep. This low-power mode makes the MCP9600 perfect for portable applications!We've written an Arduino library to help you get started quickly. You can download the library through the Arduino library manager by searching 'SparkFun MCP9600' or you can get the GitHub repo as a .zip file and install the library from there.The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.Get Started with the Qwiic Thermocouple AmplifierFeaturesTemperature Range of -200℃ to 1350℃Four Onboard Temperature AlertsResolution of 0.0625℃Screw Terminal ConnectorADDR Jumper for variable I2C Addresses(default address of 0x60)2x Qwiic Connectors

DescriptionLeveraging the ultra powerful Artemis Module， the SparkFun MicroMod Artemis Processor is the brain board of your dreams. With a Cortex-M4F with BLE 5.0 running up to 96MHz and with as low power as 6uA per MHz(less than 5mW)， the M.2 MicroMod connector allows you to plug in a MicroMod Carrier Board with any number of peripherals. Let's have a look at what this processor board has to offer! If you need Machine Learning capabilities， Bluetooth， I2C functionality to connect to all our amazing Qwiic boards， and more the Artemis Processor is the perfect choice for your MicroMod Carrier Board.At the heart of SparkFun's Artemis Module is Ambiq Micro's Apollo3 processor， whose ultra-efficient ARM Cortex-M4F processor is spec'd to run TensorFlow Lite using only 6uA/MHz. We've routed two I2C buses， eight GPIO， dedicated digital， analog， and PWM pins， multiple SPI as well as QuadSPI， and Bluetooth to boot. You really can't go wrong with this processor. Grab one today， pick up a compatible carrier board， and get hacking!MicroMod is a modular interface ecosystem that connects a microcontroller "processor board" to various "carrier board" peripherals. Utilizing the M.2 standard， the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!Get Started with the MicroMod Artemis Processor GuideFeaturesArtemis General Features1M Flash / 384k RAM48MHz / 96MHz turbo available6uA/MHz(operates less than 5mW at full operation)48 GPIO - all interrupt capable31 PWM channelsBuilt in BLE radio and antenna10 ADC channels with 14-bit precision with up to 2.67 million samples per second effective continuous， multi-slot sampling rate2 channel differential ADC2 UARTs6 I2C buses6 SPI buses2/4/8-bit SPI busPDM interfaceI2S InterfaceSecure 'Smart Card' interfaceFCC/IC/CE Certified(ID Number 2ASW8-ART3MIS)Specific Peripherals made available on MicroMod Artemis：1x USB dedicated for programming and debug1x UART with flow control2x I2C1x SPI1x Quad-SPI8x Fast GPIO2x Digital Pins2x Analog Pins2x PWM1x Differential ADC pairStatus LEDVIN Level ADCAdditional peripherals are available but are shared on dedicated MicroMod pins.

DescriptionLIDAR has never looked so good! This is the LIDAR-Lite v3HP， a compact， high-performance optical distance measurement sensor from Garmin(TM). The LIDAR-Lite v3HP istheideal optical ranging solution for drone， robot， or unmanned vehicle applications. Each sensor is housed in a durable， IPX7-rated housing and includes all the core features and user configurability of the popular LIDAR-Lite v3.The v3HP is very similar in function to that of the v3 but it can now sample faster at rates greater than 1kHz(where as the v3 is only capable of up to 500Hz). Another improvement is that this v3HP model is more power efficient with current consumption rates 40mA less than the v3(that's 65mA as opposed to 105mA while idle， and 85mA instead of 130mA while acquiring).Each LIDAR-Lite v3HP has a range of 1m to 40m and features an edge-emitting， 905nm(1.3 watts)， single-stripe laser transmitter， 8m Radian beam divergence， and an optical aperture of 12.5mm. This version of the LIDAR-Lite still operates at 5VDC(6V max)with a peak power of 1.3W and still possesses an accuracy of +/- 2.5cm at >2m. On top of everything else， the LIDAR-Lite is user-configurable， allowing adjustment between accuracy， operating range and measurement time and can be interfaced via I2C or PWM with the attached 200mm cable.Note：CLASS 1 LASER PRODUCT CLASSIFIED EN/IEC 60825-1 2014. This product is in conformity with performance standards for laser products under 21 CFR 1040， except with respect to those characteristics authorized by Variance Number FDA-2016-V-2943 effective September 27， 2016.Get Started with the LIDAR-Lite v3HP GuideFeaturesResolution：1 cmTypical accuracy：+/- 2.5cm at distances greater than 2 meters(Refer to operating manual for complete operating specifications)Range：1m to 40mUpdate rate：Greater than 1kHzInterface：I2C or PWMPower(operating voltage)：4.75-5VDC； 6V MaxCurrent consumption：65ma idle； 85ma during acquisitionOperating temperature：-20℃ to 60℃Laser wave length/Peak power：905nm/1.3WBeam divergence：8m RadianOptical aperture：12.5mmWater rating：IPX7Unit dimensions：24.5mm×53.5mm×33.5mm(1.0in×2.1in×1.3in)Weight：34g(1.2oz)

DescriptionThe SparkFun Thing Plus - RP2040 is a low-cost， high performance board with flexible digital interfaces featuring the Raspberry Pi Foundation's RP2040 microcontroller. Besides the Thing Plus orFeatherfootprint(with 18 GPIO pins)， the board also includes an SD card slot， 16MB(128Mbit)flash memory， a JST single cell battery connector(with a charging circuit and fuel gauge sensor)， an addressable WS2812 RGB LED， JTAG PTH pins， four(4-40 screw)mounting holes， and our signature Qwiic connector.The RP2040 contains two ARM Cortex-M0+ processors(up to 133MHz)and features：264kB of embedded SRAM in six banks6 dedicated IO for SPI Flash(supporting XIP)30 multifunction GPIO：Dedicated hardware for commonly used peripheralsProgrammable IO for extended peripheral supportFour 12-bit ADC channels with internal temperature sensor(up to 0.5 MSa/s)USB 1.1 Host/Device functionalityThe RP2040 is supported with both C/C++ and MicroPython cross-platform development environments， including easy access to runtime debugging. It has UF2 boot and floating-point routines baked into the chip. While the chip has a large amount of internal RAM， the board includes an additional 16MB of external QSPI flash memory to store program code.The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.Get Started With the Thing Plus RP2040 Hookup GuideFeaturesSparkFun Thing Plus - RP2040 FeaturesRaspberry Pi Foundation's RP2040 microcontroller16MB QSPI Flash MemoryJTAG PTH PinsThing Plus(or Feather)Form-Factor：18[1]x Multifunctional GPIO Pins[2]Four available 12-bit ADC channels with internal temperature sensor(500kSa/s)Up to eight 2-channel PWMUp to two UARTsUp to two I2C busesUp to two SPI busesUSB-C Connector：USB 1.1 Host/Device functionality2-pin JST Connector for a LiPo Battery(not included)500mA charging circuitQwiic ConnectorButtons：BootResetLEDs：PWR- Red 3.3V power indicatorCHG- Yellow battery charging indicator25- Blue status/test LED(GPIO 25)WS2812- Addressable RGB LED(GPIO 08)Four Mounting Holes：4-40 screw compatibleDimensions：2.3"×0.9"RP2040 General FeaturesDual Cortex M0+ processors， up to 133 MHz264 kB of embedded SRAM in 6 banks6 dedicated IO for QSPI flash， supporting execute in place(XIP)30 programmable IO for extended peripheral supportSWD interfaceTimer with 4 alarmsReal time counter(RTC)USB 1.1 Host/Device functionalitySupported programming languagesMicroPythonC/C++1.Note：GPIO 08is not included in this count， as it passes through the WS2812 addressable RGB LED first.GPIO 07andGPIO 23are counted as a single GPIO because they are tied together.2.Note：The GPIO pins are programmable so you can reconfigure the pins! Check out the RP2040 datasheet for more information on the GPIO functionality.

DescriptionThe SparkFun RTK Surveyor is an easy to use GNSS receiver for centimeter-level positioning. Perfect for surveying， this preprogrammed device can also be used for autonomous driving， navigation， asset tracking and any other application where there is a clear view of the sky. The RTK Surveyor can also be used as a base station. With the flick of a switch， two RTK Surveyors can be used to create an RTK system capable of 14mm horizontal positional accuracy. The built-in Bluetooth(R)connection via an ESP32 WROOM enables the user to use the RTK Surveyor with their choice of GIS application on a phone or tablet. The built in battery allows field use for up to four hours and is compatible with common USB battery banks.This device can be used in four modes：GNSS Positioning(～30cm accuracy)GNSS Positioning with RTK(1.4cm accuracy)GNSS Base StationGNSS Base Station NTRIP ServerIn Position mode the device receives L1/L2 signals from a user-provided antenna and the high-grade GNSS receiver provides lat/long and altitude with accuracies around 300mm.In Positioning with RTK mode the device receives L1/L2 signals from the antenna and correction data from a base station. The correction data can be obtained from a cellular link to online correction sources or over a radio link to a 2nd RTK Surveyor setup as a base station.In Base Station mode the device is mounted to a temporary position(like a tripod)and begins transmitting correction data over a radio or internet connection. A base is often used in conjunction with a second unit set to 'Positioning with RTK' to obtain the 14mm relative accuracy.In Base Station NTRIP Server mode the device is mounted to a semi or permanently fixed position(like a roof)and connects over WiFi to transmit the correction data to a NTRIP caster so that any rover can access the correction data over a cellular or internet connection. This type of base is a very easy way to setup a very precise absolute correction source.Two cables are provided with the RTK Surveyor allowing a user to plug on our easy to use Serial Telemetry Radios or their own radio link. If a local correction source is within 10km， a user can also use their phone to provide correction data over the Bluetooth(R)link(no external radio needed!).Note：The SparkFun RTK Surveyor is just the enclosed device and does NOT include an antenna， serial telemetry radio， or associated mounting pieces. These items will need to be purchased separately from the Hookup Accessories below.Get Started With the SparkFun RTK Surveyor GuideFeaturesGNSS Receiver：ZED-F9PConcurrent reception of GPS， GLONASS， Galileo and BeiDouReceives both L1C/A and L2C bandsCurrent：68mA - 130mA(varies with constellations and tracking state)Time to First Fix：25s(cold)， 2s(hot)Max Navigation Rate：PVT(basic location over UBX binary protocol)- 25HzRTK - 20HzRaw - 25HzHorizontal Position Accuracy：2.5m without RTK0.010m with RTKMax Altitude：50km(31 miles)Max Velocity：500m/s(1118mph)Bluetooth(R)Transceiver：ESP32 WROOMXtensa(R)dual-core 32-bit LX6 microprocessorUp to 240MHz clock frequency16MB of flash storage520kB internal SRAMIntegrated 802.11 BGN WiFi transceiverIntegrated dual-mode Bluetooth(R)(classic and BLE)Hardware accelerated encryption(AES， SHA2， ECC， RSA-4096)2.5 μA deep sleep currentOverall DeviceInternal Battery：LiPo 1000mAh with 500mA chargingRadio Port：3.3V TTL Serial(57600bps RTCM TX/RX)Data Port：3.3V TTL Serial(115200bps NMEA)Weight：132g(entire device including battery)Dimensions：118mm×79mm×30mm(4.7in×3.1in×1.2in)1x Qwiic Connector1x microSD Socket for optional loggingChanges：This version(which replaces SPX-17369)uses a reinforced edge mount SMA connector for better resiliency when a fixed 'stub' antenna is used.

DescriptionNote - Please read before purchasing!：The SparkFun LTE GNSS Breakout - SARA-R5 uses the "00B" product version of the SARA-R5 module(specifically the SARA-R510M8S-00B-00). LTE NB-IoT Radio Access Technology， and the LTE FDD bands：66， 71， 85 are not supported by this version. Refer to the SARA-R5 datasheet for more information.The SparkFun SARA-R5 LTE GNSS Breakout is a robust development tool for u-blox's impressive SARA-R510M8S module. The SARA-R510M8S combines u-blox's UBX-R5 cellular chipset with their M8 GNSS receiver chipset to provide a 5G-Ready wireless IoT device complete with positioning data all on a single chip. As an asset tracker， the LTE GNSS Breakout offers Secure Cloud LTE-M communication for multi-regional use and has an integrated u-blox M8 GNSS receiver for accurate positioning information.The UBX-R5 chipset supports many different forms of data communication from full TCP/IP sockets and packet switched data， through HTTP Get/Put/Post， FTP(the SARA has a built-in file system)， Ping， to good old SMS text messaging! The built-in u-blox M8 GNSS receiver provides accurate and reliable positioning with a separate GNSS antenna interface for an external antenna. Both the GNSS antenna and LTE connections are made via a pair of SMA connectors.This breakout routes nearly all of the functional pins on the SARA-R510M8S module to user interfaces(USB or plated-through hole)so you can take full advantage of all of the features available on this impressive LTE/GNSS module. The SARA-R5's UART interface can be configured into one of five variants， providing connectivity over one or two UARTs. A separate USB port provides access to the SARA's trace log for diagnostic purposes. This breakout provides access to all three interfaces(UART1， UART2 and SARA Diag)via three separate USB-C connections. All eight 3.3V serial signals are available on a 0.1"-pitch breakout header. Separate 0.1"-pitch headers break out the SARA's I2C bus， power pins as well as GPIO pins for various functionalities.Get Started with the SARA-R5 LTE GNSS Breakout GuideFeaturesu-blox SARA-R510M8S module providing Secure Cloud LTE-M data communication for multi-regional usePlease check that your service provider offers LTE-M coverage for your area before purchasingIntegrated u-blox M8 GNSS receiver for accurate positioning informationNano SIM socketSeparate， robust SMA connections for LTE and GNSS antennasSwitchable 3.3V power for an active GNSS antennaUSB-C connectivityLED indicators for：Power(VIN and 3.3V)SARA-R5 onNetwork indicatorGNSS timing pulse(1PPS)3.3V plated through-hole(PTH)pins for：SARA onNetwork indicatorUART1GNSS timing pulse(1PPS)I2C bus

DescriptionThis is a common 555 timer/oscillator from TI. A classic for all of those first year circuits projects where you need to blink an LED， generate tone， and thousands of other great beginning projects. Google around for a huge list of resourc

DescriptionThis is the SparkFun RFM69 Breakout， a small piece of tech that breaks out all the pins available on the RFM69HCW module as well as making the transceiver easy to use. The RFM69HCW is an inexpensive and versatile radio module that operates

DescriptionThe SparkFun Wireless Joystick Kit provides an easy way to control your next XBee project. Before the wireless joystick， radio-controlled projects used hobby RC transmitters， the same ones used for RC cars， boats and planes. The problem with these transmitters is that many aren't customizable， and the ones that are tend to be too expensive for many of us. The Wireless Joystick Kit offers a custom wireless solution for those who want to control their project their own way.Equipped with the increasingly popular SAMD21 onboard， all you need is to assemble the SparkFun Wireless Joystick into the configuration you want and add your own XBee and lithium ion battery into the provided sockets. The Wireless Joystick Kit can be assembled into a configuration that utilizes dual joysticks for better RC steering robots(like tanks)or a single joystick configuration with four 12mm momentary pushbuttons(a setup similar to what older game consoles used). We have provided a full Hookup Guide that gives assembly instructions， as well as a tank-steering motor controller tutorial to help get you started!Please be aware that the SparkFun Wireless Joystick Kit isNOT supported on Windows 7/8due to a lack of support drivers for those specific OS's.Note：This kit will need to be assembled before use， so a beginner's knowledge of soldering will be required. Additionally， in an effort to keep shipping rates down and make this kit available to people throughout the world without delay， there is no XBee or lithium ion battery included.Get Started with the Wireless Joystick Kit Guide

DescriptionThe SparkFun RV-8803 Real Time Clock Module is a Qwiic-enabled breakout board for the RV-8803 RTC. The RV-8803 boasts some impressive features including a temperature compensated crystal providing extremely precise time-keeping， low power consumption， and time stamp event input along with a user-programmable timing offset value. The RV-8803 also has an improved I2C interface compared to the RV-1805 RTC that removes the need to sequence commands/writes to the device. Best of all， the temperature compensation comes factory calibrated. Utilizing our handy Qwiic system so no soldering is required to connect it to the rest of your system. However， we still have broken out 0.1"-spaced pins in case you prefer to use a breadboard.Adding a real-time clock to your project is the perfect way to get more accurate data； timing or otherwise. Using the Qwiic connector makes for a fast， solid way to incorporate this into your project. The RTC module has counters for hundredths of seconds， seconds， minutes， hours， date， month， year and weekday with a number of alarm and interrupt settings available as well. Plus the large operating temperature range(-40 to +105℃)and temperature compensated crystal makes for a good addition for field applications or harsh environments.The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.Get Started with the SparkFun RV-8803 Real Time Clock Module GuideFeaturesFactory Calibrated Temperature CompensationHigh Time Accuracy±1.5 ppm 0 to +50℃±3.0 ppm -40 to +85℃±7.0 ppm +85 to +105℃1.5V to 5.5V Operating Voltage Range240nA @ 3.3v Low-Power ConsumptionI2C Address：0x32Periodic Countdown Timer Interrupt functionPeriodic Time Update Interrupt function(seconds， minutes)Alarm Interrupts for weekday or date， hour and minute settingsExternal Event Input with Interrupt and Time Stamp functionProgrammable Clock Output pin for peripheral devices.Operating temperature range：-40 to +105℃2x Qwiic Connectors

DescriptionNeed to keep track of the airflow in your data center or around your servers? How about making sure your HVAC and air control systems are functioning at full capacity? Well， the new SparkFun FS3000-1005 Air Velocity Sensor Breakout can help you with all that and more! It's super easy and super quick(Qwiic!)to hook up.This breakout board is focused around Renesas' FS3000-1005， a surface-mount air velocity module with a range of 0-7.2m/s(0-16.2mph). It utilizes a MEMS thermopile-based sensor， features a digital output with 12-bit resolution and comprises a "solid" thermal isolation technology and silicon carbide coating to protect it from abrasive wear and water condensation.We've written an Arduino library to help you get started quickly. You can download the library through the Arduino library manager by searching 'SparkFun Air Velocity' or you can get the GitHub repo as a .zip file and install the library from there.The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.Get Started with the Qwiic Air Velocity Sensor BreakoutFeaturesI2C address：0x28Air flow speed：0 - 7.23 m/sec(0 - 16.17mph)Accuracy：5 % of full scale flow range12-bit resolutionInput Voltage：2.7-3.3VAverage current draw：10mA

DescriptionThe Leopard Imaging Camera is a 136° FOV(field of view)wide angle camera module that is great for machine vision applications， and designed specifically to be compatible with the NVIDIA Jetson Nano Developer Kit. This camera incorporates a Sony IMX219 8.08MP color sensor， a fixed focus(M8)lens， and utilizes CSI-2 MIPI 2-lane data output interface.This is the same camera that we include in the SparkFun Jetbot v2.1 Kit.Note：SparkFun has not established the compatibility of this camera with Raspberry Pi. We are currently working with the manufacturer， but due to firmware restrictions Leopard cameras do not work with any Raspberry Pi's at this time.FeaturesField of view(FOV)：136°Module size：150mm(L)x 25mm(W)Sensor type：Sony IMX219 8.08MP color sensorActive pixels：3280(H)x 2464(V)Image size：Diagonal 4.60mm(Type 1/4.0)F/No：2.0(H136)Focal length：1.58mm(H136)TV distortion：<-15%(H136)Focusing range：30cm - InfinityLens type：Fixed Focus(M8 lens)Pixel size：1.12um×1.12umData output interface：CSI-2 MIPI 2-laneIR Cutter Filter：Yes

DescriptionThis is a 220 Ohm， 1/4th Watt， +/- 5% tolerance PTH resistor. Commonly used in breadboards and perf boards. We've opted for a new and more breadboard-friendly lead thickness(they're a bit thicker than our last ones).Note：Sold as singles.FeaturesTolerance：±5%Power(Watts)：0.25W， 1/4WComposition：Carbon FilmFeatures：Flame Retardant Coating， SafetyTemperature Coefficient：0/ -400ppm/℃Operating Temperature：-55℃ ～ 155℃Package / Case：AxialSize / Dimension：0.091"" Dia x 0.236"" L(2.30mm x 6.00mm)Number of Terminations：2Resistance：220 Ohms

DescriptionThe SparkFun Pulse Oximeter and Heart Rate Sensor is an I2C based biometric sensor， utilizing two chips from Maxim Integrated：the MAX32664 Biometric Sensor Hub and the MAX30101 Pulse Oximetry and Heart Rate Module. While the latter does all the sensing， the former is an incredibly small and fast Cortex M4 processor that handles all of the algorithmic calculations， digital filtering， pressure/position compensation， advanced R-wave detection， and automatic gain control. We've provided a Qwiic connector to easily connect to the I2C data lines but you will also need to connect to two additional lines. This board is very small， measuring at 1in×0.5in(25.4mm×12.7mm)， which means it will fit nicely on your finger without all the bulk.The MAX30101 does all the sensing by utilizing its internal LEDs to bounce light off the arteries and arterioles in your finger's subcutaneous layer and sensing how much light is absorbed with its photodetectors. This is known as photoplethysmography. This data is passed onto and analyzed by the MAX32664 which applies its algorithms to determine heart rate and blood oxygen saturation(SpO2). SpO2 results are reported as the percentage of hemoglobin that is saturated with oxygen. It also provides useful information such as the sensor's confidence in its reporting as well as a handy finger detection data point. To get the most out of the sensor we've written an Arduino Library to make it easy to adjust all the possible configurations.The SparkFun Qwiic connect system is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.Get Started with the Pulse Oximeter and Heart Rate Monitor Hookup GuideFeaturesSparkFun Pulse Oximeter and Heart Rate SensorMAX30101 and MAX32664 sensor and sensor hubQwiic connectors for power and I2C interfaceI2C Address：0x55MAX30101 - Pulse Oximeter and Heart-Rate SensorHeart-Rate Monitor and Pulse Oximeter Sensor in LED Reflective SolutionIntegrated Cover Glass for Optimal， Robust PerformanceUltra-Low Power Operation for Mobile DevicesFast Data Output CapabilityRobust Motion Artifact ResilienceMAX32664 - Ultra-Low Power Biometric Sensor HubBiometric Sensor Hub SolutionFinger-Based Algorithms Measure Pulse Heart Rate and Pulse Blood Oxygenation Saturation(SpO2)Both Raw and processed data are availableBasic Peripheral mix optimizes size and performance

DescriptionThe SparkFun MicroMod Environmental Function Board adds additional sensing options to the MicroMod Processor Boards. This Function Board includes three sensors to monitor air quality(SGP40)， humidity temperature(SHTC3)， and CO2 concentrations(STC31)in your indoor environment. To make it even easier to use， all communication is over the MicroMod's I2C bus!The SGP40 measures the quality of the air in your room or house. The SGP40 uses a metal oxide(MOx)sensor with a temperature controlled micro hotplate and provides a humidity-compensated volatile organic compound(VOC)based indoor air quality signal. Both the sensing element and VOC Algorithm feature an unmatched robustness against contaminating gases present in real world applications enabling a unique long term stability as well as low drift and device to device variation.The SHTC3 is a highly accurate digital humidity and temperature sensor. The SHTC3 uses a capacitive humidity sensor with a relative humidity measurement range of 0 to 100% RH and bandgap temperature sensor with a temperature measurement range of -40℃ to 125℃. The SHTC3 builds on the success of their SHTC1 sensor with higher accuracy(±2% RH， ±0.2℃)than its predecessor， enabling greater flexibility.The STC31 measures CO2 concentrations based on thermal conductivity and has two CO2 measurement ranges：0 to 25 vol%； and 0 to 100 vol%. The measurement repeatability is 0.2 vol%， with a stability of 0.025 vol% / ℃. The measurement accuracy depends on the measurement range：0.5 vol% + 3% measured value； 1 vol% + 3% measured value. Using measurements from the SHTC3， the STC31 is able to provide humidity-compensated measurements together with improved temperature compensation. The STC31 can compensate for atmospheric pressure too - which is handy if， like us， you're up in the mountains!The outstanding performance of these three sensors is based on Sensirion's patented CMOSens(R)technology， which combines the sensor element， signal processing， and digital calibration on a small CMOS chip. The well-proven CMOS technology is perfectly suited for high-quality mass production and is the ideal choice for demanding and cost-sensitive OEM applications.Utilizing our handy M.2 MicroMod connector， no soldering is required to connect it to your system. Simply match up the key on your processor and function board's beveled edge connector to their respective key on the M.2 connector， then secure them to the main board with screws. The MicroMod Environmental Function Board can then be read via the I2C port. The board is equipped with the AP2112 3.3V voltage regulator， I2C pull-up resistors， power LED， jumper to disable the LED， and jumpers for alternative STC31 addresses.Note：A MicroMod Processor and Main Board are not included with this MicroMod Environmental Function Board. These boards will need to be purchased separately.MicroMod is a modular interface ecosystem that connects a microcontroller "processor board" to various "carrier board" peripherals. Utilizing the M.2 standard， the MicroMod standard is designed to easily swap out processors and function boards on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!Get Started with the MicroMod Environmental Function BoardFeaturesInput voltage range2.5V to 6.0VTyp.5Vvia Main Board's USB connectorTyp.～3.7V to 4.2Vvia Main Board's LiPo battery ConnectorI/O voltage3.3VAP2112 3.3V voltage regulator(rated 600mA)Power LEDI2C pull-up resistorsSensirion SGP40 Air Quality SensorUses I2C interfaceAddress：0x59(default)Operating voltage range1.7V to 3.6V(Typ.3.3V)Operating temperature range-20℃ to +55℃Typical current consumption2.6mAduring continuous operation(at 3.3V)34μAwhen idle(heater off)Output signalDigital raw value(SRAW)：0 - 65535 ticksDigital processed value(VOC Index)：0 - 500 VOC index pointsSwitch-on behaviorTime until reliably detecting VOC events：<60sTime until specifications are met：<1hRecommended sampling intervalVOC Index：1sSRAW：0.5s - 10s(Typ. 1s)Sensirion SHTC3 Humidity and Temperature SensorUses I2C interfaceAddress：0x70(default， non-configurable)Operating voltage range1.62V - 3.6V(Typ.3.3V)Operating temperature range-40℃ to +125 ℃Relative HumidityMeasurement range：0% to 100%Typical accuracy：±2 %RHResolution：0.01 %RHTemperatureMeasurement range：-40℃ to +125 ℃Typical accuracy：±0.2 ℃Resolution：0.01 ℃Typical current consumption(varies based on mode)4.9μA to 430μA(Normal Mode)0.5μA to 270μA(Low Power Mode)Allows the STC31 to compensate for humidity and temperatureSensirion STC31 CO2 SensorUses I2C interfaceAddresses：0x29(default)， 0x2A， 0x2B， 0x2COperating voltage range2.7V to 5.5V(Typ.3.3V)Operating temperature range-20 ℃ to +85 ℃Calibrated for CO2 in N2 and CO2 in airMeasurement ranges0 to 25 vol% in N20 to 100 vol% in airAccuracy0.5 vol% + 3% measured value in N21 vol% + 3% measured value in airConcentration and temperature resolution：16-bitRepeatability：0.2 vol%Temperature stability：0.025 vol% / ℃Start-up time：14 msThermal conductivity sensor provides calibrated gas concentration and temperature outputJumpersPWR LEDI2C pull-up resistorsSTC31 address selectionNote：The I2C addresses that are reserved for each sensor is 0x59(SGP40)， 0x70(SHTC3)， 0x29(STC31). A multiplexer/Mux is required to communicate to multiple SHTC3 sensors on a single bus. The SHTC3 uses the same address as the Qwiic Mux(0x70). For advanced users that are using multiple SHTC3's with the Qwiic Mux， you will need to adjust the Qwiic Mux's default address.

DescriptionThe FLIR Lepton(R)2.5 - Thermal Imaging Module is a radiometric-capable long wave infrared(LWIR)camera solution that is smaller than a dime， fits inside a smartphone， and is less expensive than traditional IR cameras. With a focal plane array of 80x60 active pixels， this Lepton easily integrates into native mobile-devices and other electronics as an IR sensor or thermal image sensor. The radiometric Lepton captures accurate， calibrated， and non-contact temperature data in every pixel.For large quantities：We currently have a limit of one per customer order on the FLIR Lepton 2.5 module due to supply chain issues as a result of COVID-19. If you need to place a distributor order please contact your sales rep and they will assist you. For bulk order for this module please visit our Volume Pricing Page for inquiries of stock. At this time， we cannot guarantee orders for this module but we will do what we can to work with you in fulfilling your request.FeaturesEffective Frame Rate：8.6 Hz(commercial application exportable)Input Clock：25-MHz nominal， CMOS IO Voltage LevelsOutput Format：User-selectable 14-bit， 8-bit(AGC applied)， or 24-bit RGB(AGC and colorization applied)Pixel Size：17 μmRadiometric Accuracy：High gain：Greater of +/- 5℃ or 5%(typical)Low gain：Greater of +/- 10℃ or 10%(typical)Scene Dynamic Range：-10-140 ℃(high gain)； up to 450℃(low gain)typicalSpectral Range：Longwave infrared， 8 μm to 14 μmTemperature Compensation：Automatic. Output image independent of camera temperature.Thermal Sensitivity：<50 mK(0.050° C)Video Data Interface：Video over SPIControl Port：CCI(I2C-like)， CMOS IO Voltage LevelsPackage Dimensions - Socket Version(w×l×h)：11.8×12.7×7.2 mmMechanical Interface：32-pin socket interface to standard Molex(R)socketNon-Operating Temperature Range：-40 ℃ to +80 ℃Optimum Temperature Range：-10℃ to +80℃Shock：1500 G @ 0.4 msArray format：80×60， progressive scanFOV - Diagonal：63.5°FOV - Horizontal：50°(nominal)Image Optimization：Factory configured and fully automatedNon-Uniformity Correction(NUC)：Automatic with shutterSensor Technology：Uncooled VOx microbolometerSolar protection：IntegralInput Supply Voltage：2.8 V， 1.2 V， 2.5 V to 3.1 V IOPower Dissipation：150 mW(operating)， 650 mW(during shutter event)， 4 mW(standby)

DescriptionThe SparkFun LTE CAT M1/NB-IoT Shield equips your Arduino or Arduino-compatible microcontroller with access to data networks across the globe. This shield adds wireless， high-bandwidth cellular functionality to your IoT project while maintaining low power consumption and small footprint. The SparkFun LTE CAT M1/NB-IoT Shield is based off the Arduino R3's footprint that allows you to easily incorporate it with favorite Arduino-based device.At the heart of the LTE Cat M1/NB-IoT shield is u-blox SARA-R410M-02B LTE Cat M1/NB-IoT modem. Cat M1(Category M1)and NB-IoT(Narrowband IoT)are both Low Power Wide Area Network(LPWAN)technologies that are designed to provide cellular communication to small IoT devices. They operate on LTE network bands just like most smartphones， and should be supported by most cellular network carriers. The u-blox SARA-R4 module communicates over UART via simple AT command set. We've provided library to help you get started with everything from sending SMS text messages to communicating with servers over TCP/IP connection. Additionally， both the module and library support an I2C GPS interface via Qwiic connector， so you can plug in u-blox GPS module and start remotely tracking your project.Each SparkFun LTE CAT M1/NB-IoT Shield also includes ceramic， Molex 1462000001 SMD antenna. The antenna has gain of 3.8dBi around 1.7GHz to 2.7GHz. However， if you would prefer to use an external antenna， we have provided U.FL connector that can be utilized by simply slicing through jumper with hobby knife.Please be aware that there are few extra parts required to get this shield fully functioning， other than an Arduino-based device. First， you'll need to supply your own SIM card， such as this one from Hologram(we do also offer this shield with an included one as well)and your own headers which will need to be soldered on.Note：Be sure to check theHardware Overviewsection in the Hookup Guide for compatible GPS modules. The onboard Qwiic connector is only designed to support u-blox-based GPS modules. It does not support any other GPS modules or sensors. We are continuing to add more modules so be sure to check back every so often to find out more!Need custom board?This component can be found in SparkFun's La Carte board builder. You can have custom design fabricated with this component and your choice of hundreds of other sensors， actuators and wireless devices delivered to you in just few weeks.Get Started with the SparkFun LTE CAT M1/NB-IoT Shield GuideDocumentsSchematicEagle FilesHookup GuideDatasheetsSARA-R4Ceramic AntennaSARA-R4 AT Command SetArduino LibraryGitHub

DescriptionThe SparkFun Qwiic MicroPressure Sensor is a miniature breakout equipped with Honeywell's 25psi piezoresistive silicon pressure sensor. This MicroPressure Sensor offers a calibrated and compensated pressure sensing range of 60mbar to 2.5bar， easy to read 24 bit digital I2C output， and can be calibrated and compensated over a specific temperature range for sensor offset， sensitivity， temperature effects， and non-linearity using an on-board Application Specific Integrated Circuit(ASIC). With its ultra-low power consumption and Qwiic ports， you've got yourself a power packed little sensor!Each Qwiic MicroPressure Sensor has a calibrated pressure sensing range from 1-25psi and a power consumption rate as low as 0.01mW typ. average power， 1Hz measurement frequency for ultimate portability. Used in multiple medical(blood pressure monitoring， negative pressure wound therapy)， industrial(air braking systems， gas and water meters)， and consumer uses(coffee machines， humidifiers， air beds， washing machines， dishwashers)， the SparkFun Qwiic MicroPressure Sensor is a great addition to the SparkFun Qwiic ecosystem!The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.Get Started with the SparkFun Qwiic MicroPressure Hookup GuideFeaturesPressure Type：AbsoluteOperating Pressure：25psi(172.37kPa)I2C Address：0x18Accuracy：±0.25%Voltage - Supply：1.8V-3.6VPort Size：Male - 0.1"(2.5mm)TubePort Style：BarblessMaximum Pressure：60psi(413.69kPa)Compatible with a variety of liquid media2x Qwiic Connectors

DescriptionThis sealed digital temperature probe lets you precisely measure temperatures in wet environments with a simple 1-Wire interface. The DS18B20 provides 9 to 12-bit(configurable)temperature readings over a 1-Wire interface， so that only one wire(and ground)needs to be connected from a central microprocessor. Power for reading， writing， and performing temperature conversions can be derived from the data line itself with no need for an external power source.Because each DS18B20 contains a unique silicon serial number， multiple DS18B20s can exist on the same 1-Wire bus. This allows for placing temperature sensors in many different places. Applications where this feature is useful include HVAC environmental controls， sensing temperatures inside buildings， equipment or machinery， and process monitoring and control.Note：The pinout for this sensor is as follows：RED=Vcc BLACK=GND WHITE=SIGFeatures3.0-5.5V input voltage-55℃ to +125℃ temperature range±0.5℃ accuracy from -10℃ to +85℃Waterproof1 Wire interfaceProbe is 7mm in diameter and roughly 26mm long. Overall length(including wire)is 6 feet.Thermometer resolution is programmable from 9 to 12 bits.Electrical performance：no flicker or breakdown within AC 1200V/1S ，within DC 500V theinsulation resistance shall be greater than 100MΩ

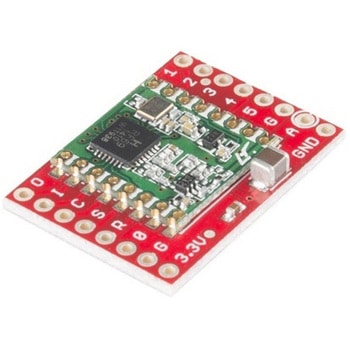

DescriptionThis is the SparkFun RFM69 Breakout， a small piece of tech that breaks out all the pins available on the RFM69HCW module as well as making the transceiver easy to use. The RFM69HCW is an inexpensive and versatile radio module that operates in the unlicensed ISM(Industry， Science and Medicine)radio band. It's perfect for building inexpensive short-range wireless networks of sensors and actuators for home automation， citizen science and more.This RFM69HCW operates on the 434MHz frequency and is capable of transmitting at up to 100mW and up to 300kbps， but you can change both of those values to fit your application. For example， you can maximize range by increasing the transmit power and reducing the data rate， or you can reduce both for short-range sensor networks that sip battery power. At full power and with simple wire antennas， we can get messages from one side of a large office building to the other through numerous internal walls. In open air you can reach 500 meters or more. With more complex antennas and modulation schemes， similar parts have successfully transmitted from space to the ground(by very smart amateur radio enthusiasts； your mileage may vary)!The RFM69HCW uses an SPI(Serial Peripheral Interface)to communicate with a host microcontroller， and several good Arduino libraries are available. It supports up to 256 networks of 255 nodes per network， features AES encryption to keep your data private， and transmits data packets up to 66 bytes long.SparkFun sells two versions of the RFM69HCW：a 915MHz version and this 434MHz version. Although the ISM band is license-free， the band itself is different in different areas. Very roughly， 915MHz is for use in the Americas， and the 434MHz version is for use in Europe， Asia and Africa. Check your local regulations for other areas.Get Started with the RFM69HCW Hookup GuideFeaturesTransmit power：-18dBm(0.016mW)to +20dBm(100mW)in 1dBm stepsReceive sensitivity：down to -120dBm at 1.2kbpsModulation types：FSK GFSK MSK GMSK OOKBit rates(FSK)：1.2kbps to 300kbpsVoltage range：1.8V to 3.6VCurrent consumption：0.1uA sleep， 1.25mA standby， 16mA receive， 130mA transmit(max)Encryption：AES 128-bit(optional)Packet buffer(FIFO)：66 bytes0.8"×1.1"
