DescriptionThis is a 220 Ohm， 1/4th Watt， +/- 5% tolerance PTH resistor. Commonly used in breadboards and perf boards. We've opted for a new and more breadboard-friendly lead thickness(they're a bit thicker than our last ones).Note：Sold as singles.FeaturesTolerance：±5%Power(Watts)：0.25W， 1/4WComposition：Carbon FilmFeatures：Flame Retardant Coating， SafetyTemperature Coefficient：0/ -400ppm/℃Operating Temperature：-55℃ ～ 155℃Package / Case：AxialSize / Dimension：0.091"" Dia x 0.236"" L(2.30mm x 6.00mm)Number of Terminations：2Resistance：220 Ohms

DescriptionThis is a 16mm deluxe thumb joystick and is very similar to the 'analog' joysticks found inside PlayStation controllers. Directional movements are provided simply by two potentiometers - one for each axis. These 10k potentiometers will read the position changes for the joystick's full range of physical motion. This joystick also has a select button that is actuated when the joystick is pressed down.The mechanical parts found in this joystick are mostly metal and are considered far sturdier(rugged， if you will)than other， plastic joystick options.Note：This thumb joystick does not include a top cap and it will need to be purchased separately. Additionally， the leads on the housing of this joystick are much thicker than the leads on the trimpots &； push button components. When soldering to BOB-9110， we recommend using a pair of fine tip tweezers to guide each pin into the correct hole before pushing down.

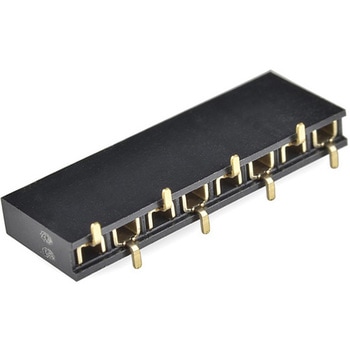

Single row of 40-holes、female header. Can be cut to size with a pair of wire-cutters. Standard .1" spacing. We use them extensively in the Olimex development boards. They mate very well with break away male headers.Please noteYou will probably lose one pin with each cut.

DescriptionThese are 101mm long 26AWG jumpers with male connectors on both ends. Use these to jumper from any female header on any board to any other female header. Combine these with our female-to-female jumpers to create a male-to-female jumper. Multiple jumpers can be installed next to one another on a 0.1" header.Comes as one pack of 30 jumpers with an assortment of colors.Features4" long

DescriptionThe SparkFun Multiplexer Breakout provides access to all pins and features of the 74HC4051， an 8-channel analog multiplexer/demultiplexer. The 74HC4051 allows you to turn four I/O pins into eight multifunctional， individually selectable signals， which can be used to do everything from driving eight LEDs to monitoring eight potentiometers.The 74HC4051 can function as either a multiplexer or a demultiplexer， and it features eight channels of selectable inputs/outputs. The routing of common signal to independent I/O is set by digitally controlling three select lines， which can be set either high or low into one of eight binary combinations.One half of the board breaks out the control signals(E， S0-S2)and common input/output(Z). The other side provides access to all eight independent I/O's(Y0-Y7). Both sides include supply and ground connections(VCC， VEE， GND).Get Started with the 74HC4051 Breakout GuideFeaturesSwitches analog or digital signals8 channels controlled by 3 select inputsWide voltage supply range：2 -- 10VBipolar supply support(e.g.， ±5V)Optional enable inputBreadboard compatible breakout

DescriptionThe SparkFun Qwiic LED Stick features ten addressable APA102 LEDs， making it easy to add full color LED control using I2C. Write to individual LEDs to display a count in binary， or write to the whole strip for cool lighting effects. You can even add more LEDs to the end if you need to. We've written an Arduino library and Python package that take care of the I2C and communication to the LEDs so all you have to do is decide what color each LED should be.The LED Stick has a default I2C address of 0x23 but can be changed with a simple command， allowing you to control up to 100 LEDs(10 Qwiic LED Sticks)on a single bus! The address can also be changed to 0x22 by closing the solder jumper on the back of the board.This board is one of our many Qwiic compatible boards! Simply plug and go. No soldering， no figuring out which is SDA or SCL， and no voltage regulation or translation required!Warning：Using a lot of LEDs can draw a lot of current. Make sure to consider the power limits of your setup. If you expect your LED chain to draw more than 600mA of current， connect your external supply directly to VLED. Closing the jumper from VLED to VCC will add a 4.7uF decoupling capacitor.The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.Get Started with the Qwiic LED Stick GuideFeatures10x APA102C addressable LEDs driven by an ATTiny85Default I2C Address：0x23(Adjustable to 0x22 via Jumper)2x Qwiic Connectors

We use these little buttons on everything! These Miniature Single Pole Single Throw switches have a good click to them and are breadboard friendly. Perfect as a tactile reset switch. These buttons are rated up to 50mA.

DescriptionThe SparkFun Qwiic EEPROM Breakout is a simple and cost effective option to add some extra storage space to any project. With 512 kilo-bits(or 64 kilo-bytes)of storage， this product is great for any microcontroller that doesn't have any
