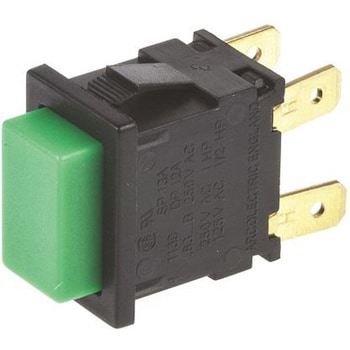

Arcolectric (Bulgin) Ltd 押しボタンスイッチ， モーメンタリ， パネルマウント， DP， H8351ABAAH 長方形

動作特性 モーメンタリ
イルミネーション なし
実装タイプ パネルマウント
プッシュボタンの色 緑
接点構成 DP
定格電圧 250V ac
プッシュボタンの型 長方形
IP保護等級 IP40
シリーズ 8300
コンタクト定格電流 16 250 ac A
メーカー型番 H8351ABAAH
ENEC， UL， CSA. Panel Mount Mains Pushbutton Switches. Arcolectric presents the 8300 series of Mains Pushbutton Switches. These high current miniature switches are designed for easy snap-in panel mounting and are available in both illuminated and non-illuminated versions and with latching and momentary options. Features and Benefits: Double pole switches for snap fitting into 19.2x13 panel cutout 3mm contact gap Operating Temperature 105℃ Contact Resistance ；20MΩ Contact Material Silver Alloy Dielectric Strength >1000V Insulation Resistance >20MΩ Electrical Life (operations) 10000 Actuator Length (mm) 4.5 Actuator Width (mm) 15 Height (mm) 21 Max. Panel Thickness (mm) - Panel Cut-out (mm) 19.2x13 Depth Behind Panel (mm) 25.5. The 8300 Series includes:. Stock number 250-7907 250-7907 is black， non-illuminated pushbutton switch (Latching) Stock number 250-7913 250-7913 is black， non-illuminated pushbutton switch (Momentary) Stock number 250-7929 250-7929 is red， illuminated pushbutton switch (Latching) Stock number 250-7935 250-7935 is green， illuminated pushbutton switch (Latching) Stock number 533-3030 533-3030 is red， non-illuminated pushbutton switch (Latching) Stock number 533-3046 533-3046 is red， non-illuminated pushbutton switch (Momentary) Stock number 533-3052 533-3052 is green， non-illuminated pushbutton switch (Momentary)
