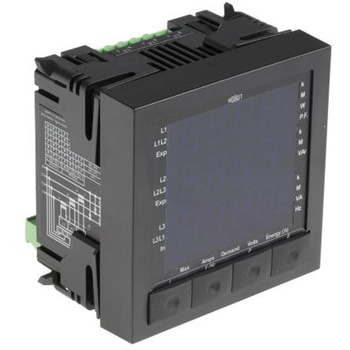

HOBUT デジタルパネルメータ LED 92 x 92 mm M850シリーズ
仕様●特性測定： Current， Frequency， Power， Voltage●ディスプレイのタイプ： LED●高さ： 96mm●幅： 96mm●表示桁数： 4mm●文字の高さ寸法： 14.2 mm●動作温度 Min： 0℃●動作温度 Max： +60℃●シリーズ： M850●HOBUT Multi-Function MeterThe HOBUT Multi-Function meter is a multifunction， easy to use universal LCD power indicator that features 96mm x 96mm moulded cases and selectable 3-colour backlight LCD screens. It is easy to use and features user-programmable CT and VT ratios and can be used on any single or 3-phase system with any input voltage without reprogramming. This multifunction meter measures current， energy， frequency， power and voltage. Note: Both RS485 output 668-4070 (Modbus protocol) and pulsed output 668-4073 (for Wh or VArh) are plug-in optionsFeatures and Benefits1A or 5A CT AC or DC AUX Cost effective Current transformer ratio Cut-out height is 96mm Cut-out width is 96mm Depth is 82mm Input voltage ranges between 28V and 570V Number of digits are four Operating temperature ranges between 0℃ and 60℃ Security code access for programming Selectable screen colour Voltage transformer ratioApplicationsBuilding management systems Gensets Low， medium and high voltage control panels Power managementCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007 CE certified
RoHS指令(10物質対応)対応
内容量1個
