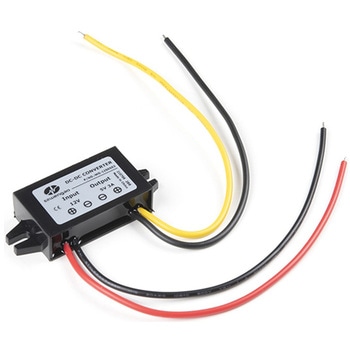

DC8V～12Vを入力し、5V/3A(最大)を出力する降圧DC/DCコンバータです。優れた熱性能と保護機能を備え、入力が変化している間(バッテリーの充電/放電)でもUSBや5Vデバイスに電力を供給することができます。

Description。This is the PICkit 4， the official programmer from Microchip. The PICkit 4 allows debugging and programming of PIC(R)， dsPIC(R)， AVR， SAM and CEC flash microcontrollers and MPUs using the powerful graphical user interface of the MPLAB X Integrated Development Environment(IDE). The MPLAB PICkit 4 is connected to a PC using a high-speed 2.0 USB interface and can be connected to the target via an 8-pin Single In-Line(SIL)connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming(TM)(ICSP(TM)). An additional micro SD card slot and the ability to be self-powered from the target means you can take your code with you and program on the go. Comes with a USB to micro-B USB cable.。Features。Powered by a high-speed USB 2.0， no external power required。Real-time execution。MPLAB X IDE compatible(free copy included)。Built-in over-voltage/short circuit monitor。Firmware upgradeable from PC/web download。Fully enclosed。Target voltage of 1.20V to 5.5V。Can supply up to 50mA of power to the target。Minimal current consumption at <100μA from target。Diagnostic LEDs(power， busy， error)。Read/write program and data memory of microcontroller。Erase of program memory space with verification。Freeze-peripherals at breakpoint。8-pin single in-line header supports advanced interfaces such as 4-wire JTAG and Serial Wire Debug with streaming Data Gateway。Backward compatible for demo boards， headers and target systems using 2-wire JTAG and ICSP

Arduino Pro Mini328-5V/16MHzは最小機能、小型サイズのArduinoボードで16MHzのブートローダー搭載です。マイコンの動作電圧は5Vです。レギュレーターとクロック発振子を搭載しマイコンの最小限の動作は可能ですがUno等フルスペックのArduinoが標準搭載しているUSBインターフェースは省略されFTDIのインターフェースボードを外付けする仕様となっています。オートリセットは外付けインターフェースのDTR端子が有効な場合のみサポートされます。メーカーのコメントによれば入門時はUno R3でスタートし習熟したユーザーが仕様を理解した上でこのArduino Proを利用すべし、とあります。("Pro"というネーミングは"初心者お断り"の意味でしょうか…)

Description。This is a jumper adapter cable that comes pre-terminated with a female Qwiic JST connector on one end and female connectors on the other. The cable insulation is made from a highly malleable material making it more flexible than our origina

Description。There are a couple must-have boards that every engineer and hobbyist should have on their desk， and this PCA9306 dual， bidirectional voltage-level translator breakout is one of them! Because different parts sometimes use different voltage

。Description。These are your run-of-the-mill 1/4 Watt， +/- 5% tolerance PTH resistors. Commonly used in breadboards and other prototyping applications， these 1K ohm resistors make excellent pull-ups， pull-downs and current limiters. These thick-lead versions of the resistors fit snugly into a breadboard with very little movement， so you should have few to no issues using them in your next project!。These resistors come in bags of 20.

Description。The SN74HC595N is a simple 8-bit shift register IC. Simply put， this shift register is a device that allows additional inputs or outputs to be added to a microcontroller by converting data between parallel and serial formats. Your chosen microprocessor is able to communicate with the The SN74HC595N using serial information then gathers or outputs information in a parallel(multi-pin)format. Essentially it takes 8 bits from the serial input and then outputs them to 8 pins.。This small DIP packaged IC contains an 8-bit， serial-in parallel-out shift register that feeds an 8-bit D-type storage register with parallel 3-state outputs.。Note：。This is a drop-in replacement for the 74HC595 shift register IC and should function just fine in any application the previous version could.。Get started with the Shift Register Guide。Features。8-Bit Serial-In， Parallel-Out Shift。Wide Operating Voltage Range of 2 V to 6 V。High-Current 3-State Outputs Can Drive Up to 15 LSTTL Loads。Low Power Consumption：80-μA。±6-mA Output Drive at 5 V

UARTをRS-485に変換するブレークアウトボード

内容：電源電圧が3.3VのArduinoPro、mini、LilyPad用のUSB-シリアル変換基板。自動リセットに対応したArduinoに使用可能で、スケッチの書込みごとにリセットスイッチを押す必要がありません。電源電圧が5Vに対応した商品もございます。【注】電源電圧が5VのArduino製品(ProやPro Miniの16MHzで動作するもの)には使えませんのでご注意ください。

Arduino Pro Mini328-3.3V/8MHzは最小機能、小型サイズのArduinoボードで8MHzのブートローダー搭載です。マイコンの動作電圧は3.3Vで標準の5Vと異なります。レギュレーターとクロック発振子を搭載しマイコンの最小限の動作は可能ですがUno等フルスペックのArduinoが標準搭載しているUSBインターフェースは省略されFTDIのインターフェースボードを外付けする仕様となっています。オートリセットは外付けインターフェースのDTR端子が有効な場合のみサポートされます。マイコンの電源電圧は3.3Vなのでインターフェースの電圧にも制限があります。メーカーのコメントによれば入門時はUno R3でスタートし習熟したユーザーが仕様を理解した上でこのArduino Proを利用すべし、とあります。("Pro"というネーミングは"初心者お断り"の意味でしょうか…)

Description。It's tiny， it's handy， and it can give your normal USB-equipped device a micro-B connector! With the USB to Micro-B Adapter you can make a flash drive connect to your tablet， connect a keyboard to your phone in order to text with ease， attach a Bluetooth(R)dongle to your RPi Zero， and more! Since this adapter is super small， it is very easy to transport anywhere you might need it --- making it extremely convenient to have in a pinch.。Installation of the USB to Micro-B Adapter is easy； simply slide it into a USB A connector， and you will instantly make that device micro-B capable!

Description。The SparkFun NEO-M9N GPS Breakout is a high quality GPS board with equally impressive configuration options including SMA. The NEO-M9N module is a 92-channel u-blox M9 engine GNSS receiver， meaning it can receive signals from the GPS， GLONASS， Galileo， and BeiDou constellations with ～1.5 meter accuracy. This breakout supports concurrent reception of four GNSS. This maximizes position accuracy in challenging conditions increasing， precision and decreases lock time； and thanks to the onboard rechargeable battery， you'll have backup power enabling the GPS to get a hot lock within seconds! Additionally， this u-blox receiver supports I2C(u-blox calls this Display Data Channel)which makes it perfect for the Qwiic compatibility so we don't have to use up our precious UART ports. Utilizing our handy Qwiic system， no soldering is required to connect it to the rest of your system. However， we still have broken out 0.1"-spaced pins in case you prefer to use a breadboard.。The NEO-M9N module detects jamming and spoofing events and can report them to the host， so that the system can react to such events. A SAW(Surface Acoustic Wave)filter combined with an LNA(Low Noise Amplifier)in the RF path is integrated into the NEO-M9N module which allows normal operation even under strong RF interferences.。U-blox based GPS products are configurable using the popular， but dense， windows program called u-center. Plenty of different functions can be configured on the NEO-M9N：baud rates， update rates， geofencing， spoofing detection， external interrupts， SBAS/D-GPS， etc. All of this can be done within the SparkFun Arduino Library!。The SparkFun NEO-M9N GPS Breakout is also equipped with an on-board rechargeable battery that provides power to the RTC on the NEO-M9N. This reduces the time-to-first fix from a cold start(～24s)to a hot start(～2s). The battery will maintain RTC and GNSS orbit data without being connected to power for plenty of time.。This product requires an antenna：Be sure to check out the related products/hookup accessories and pick a suitable SMA antenna for your project.。The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.。The NEO-M9N GPS Breakout can also be automatically detected， scanned， configured， and logged using the OpenLog Artemis datalogger system. No programming， soldering， or setup required!。Get Started With the SparkFun NEO-M9N GPS Guide。Features。Integrated SMA connector for use with antenna of your choice。92-Channel GNSS Receiver。1.5m Horizontal Accuracy。25Hz Max Update Rate(four concurrent GNSS)。Time-To-First-Fix：Cold：24s。Hot：2s。Max Altitude：80，000m。Max G：≦4。Max Velocity：500m/s。Velocity Accuracy：0.05m/s。Heading Accuracy：0.3 degrees。Time Pulse Accuracy：30ns。3.3V VCC and I/O。Current Consumption：～31mA Tracking GPS+GLONASS。Software Configurable。Geofencing。Odometer。Spoofing Detection。External Interrupt。Pin Control。Low Power Mode。Many others!。Supports NMEA， UBX， and RTCM protocols over UART or I2C interfaces

Description。The CD40106BE consists of six Schmitt-trigger circuits. Each circuit functions as an inverter with Schmitt-trigger action on the input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage(VP)and the negative-going voltage(VN)is defined as hysteresis voltage(VH).。Features。Schmitt trigger action with no external components。Hysteresis voltage typ. at 0.9V at VDD = 5V， 2.3V at VDD = 10V， and 3.5V at VDD = 15V。Noise immunity greater than 50%。No limit on input rise and fall times。Standardised， symmetrical output characteristics。100% tested for quiescent current at 20sV。Maximum input current of 1μA at 18 V over full package temperature range； 100nA at 18V and 25℃。Low VDD to VSS current during slow input ramp

Description。LIDAR has never looked so good! This is the LIDAR-Lite v3HP， a compact， high-performance optical distance measurement sensor from Garmin(TM). The LIDAR-Lite v3HP is。the。ideal optical ranging solution for drone， robot， or unmanned vehicle applications. Each sensor is housed in a durable， IPX7-rated housing and includes all the core features and user configurability of the popular LIDAR-Lite v3.。The v3HP is very similar in function to that of the v3 but it can now sample faster at rates greater than 1kHz(where as the v3 is only capable of up to 500Hz). Another improvement is that this v3HP model is more power efficient with current consumption rates 40mA less than the v3(that's 65mA as opposed to 105mA while idle， and 85mA instead of 130mA while acquiring).。Each LIDAR-Lite v3HP has a range of 1m to 40m and features an edge-emitting， 905nm(1.3 watts)， single-stripe laser transmitter， 8m Radian beam divergence， and an optical aperture of 12.5mm. This version of the LIDAR-Lite still operates at 5VDC(6V max)with a peak power of 1.3W and still possesses an accuracy of +/- 2.5cm at >2m. On top of everything else， the LIDAR-Lite is user-configurable， allowing adjustment between accuracy， operating range and measurement time and can be interfaced via I2C or PWM with the attached 200mm cable.。Note：CLASS 1 LASER PRODUCT CLASSIFIED EN/IEC 60825-1 2014. This product is in conformity with performance standards for laser products under 21 CFR 1040， except with respect to those characteristics authorized by Variance Number FDA-2016-V-2943 effective September 27， 2016.。Get Started with the LIDAR-Lite v3HP Guide。Features。Resolution：1 cm。Typical accuracy：+/- 2.5cm at distances greater than 2 meters(Refer to operating manual for complete operating specifications)。Range：1m to 40m。Update rate：Greater than 1kHz。Interface：I2C or PWM。Power(operating voltage)：4.75-5VDC； 6V Max。Current consumption：65ma idle； 85ma during acquisition。Operating temperature：-20℃ to 60℃。Laser wave length/Peak power：905nm/1.3W。Beam divergence：8m Radian。Optical aperture：12.5mm。Water rating：IPX7。Unit dimensions：24.5mm×53.5mm×33.5mm(1.0in×2.1in×1.3in)。Weight：34g(1.2oz)

Description

DC8V～40Vを入力し、12V/3A(最大)を出力する工業用グレードの昇降圧DC/DCコンバータです。大きなヒートシンクと保護機能を備え、入力が変化している間(バッテリーの充電/放電)でも安定して負荷(12VルーターやWi-Fi機器など)に電力を供給することができます。

Description。The Raspberry Pi Zero Case has been designed to fit both the Pi Zero and the Pi Zero W. These official cases consist of several parts and protect the Raspberry Pi Zero from things like rogue wires that might short it out while still allowing full access to the board. Simply snap the RPi into the bottom half of the enclosure， then snap on a desired top. No tools required!。Each case has a standard base featuring a cut-out to allow access to the GPIO， and a choice of three lids：a standard lid， a GPIO lid(allowing access to the GPIO pins from above)and a camera lid(which， when used with the short camera cable supplied， allows the Raspberry Pi camera to be fitted neatly inside it). Additionally， each case includes a 4cm long CSI cable and four rubber feet.。Note：This case does。NOT。include a Raspberry Pi or Camera Module.

Description。This is a simple 3 pin female PTH header. This header is in a configuration that makes it ideal to be used with the MyoWare Muscle Sensor line. Each pin has a spacing of 0.1" in between each other.

Description。The Logitech K400 Plus Wireless Touch Keyboard is a compact keyboard with an integrated touchpad that puts all your controls in a single device. Enjoy your entertainment without the clutter of multiple devices. Comfortable， quiet keys and a

Description。This is the SparkFun XBee Explorer Dongle unit for the Digi XBee module line. With the XBee Explorer Dongle you can plug the unit directly into your USB port and have it act as a gateway between your computer and the XBee. No cables needed
