Description。Based on a new generation ARM Cortex M7， the Qwiic Tsunami Super WAV Trigger extends polyphony to 32 mono or 18 stereo simultaneous uncompressed 44.1kHz， 16-bit tracks. Each track can start， pause， resume， loop and stop independently， and

Description。The SparkFun Multiplexer Breakout provides access to all pins and features of the 74HC4051， an 8-channel analog multiplexer/demultiplexer. The 74HC4051 allows you to turn four I/O pins into eight multifunctional， individually selectable signals， which can be used to do everything from driving eight LEDs to monitoring eight potentiometers.。The 74HC4051 can function as either a multiplexer or a demultiplexer， and it features eight channels of selectable inputs/outputs. The routing of common signal to independent I/O is set by digitally controlling three select lines， which can be set either high or low into one of eight binary combinations.。One half of the board breaks out the control signals(E， S0-S2)and common input/output(Z). The other side provides access to all eight independent I/O's(Y0-Y7). Both sides include supply and ground connections(VCC， VEE， GND).。Get Started with the 74HC4051 Breakout Guide。Features。Switches analog or digital signals。8 channels controlled by 3 select inputs。Wide voltage supply range：2 -- 10V。Bipolar supply support(e.g.， ±5V)。Optional enable input。Breadboard compatible breakout

Description。Sometimes referred to as "spade connectors，" these quick disconnects are really useful as power connectors in prototyping or in projects that are repeatedly assembled and disassembled. The shape of these connectors allows them to be used with a variety of retro game-cabinet buttons， as well as lights similar to the ones found in our Spectacle line.。These Female Quick Disconnects are about 1/4" wide， come in packs of five， and can be affixed to a 16-14 AWG wire. Mating connectors can be found in the similar items section below.

Description。The 6-Channel Temperature Monitor can measure temperatures from as low as -240℃ up to +850℃(real-world limits greatly depend on the sensors being used). Up to six 3-wire PT100 sensors(not included)can be connected for measuring up to six temperatures. Measured temperature values are sent on a serial port for data logging and/or further processing. The kit includes an optional serial LCD for displaying readouts right on the board.。Note：The kit requires soldering， a Serial to USB converter， and 9V power supply. See related products for these and PT100 temperature sensors.

Description。Be still my beating heart! With the heART Surface Mount Soldering Kit you will be able to learn the basics of SMD soldering by being able to assemble a beating heart pendant! Each heART kit takes about 20-40min to assemble depending on your soldering skill level with basic soldering materials(not included). This little kit provides a great learning tool to help you practice and improve your overall soldering skills without proving to be an impossible challenge!。Every heART pendant kit includes one heart-shaped PCB， a CR2032 SMD battery holder， SMD LEDs， capacitors， switch， and an ATtiny85(the heart of the heART). All you need to supply(besides a soldering iron and solder)is a CR2032 coin cell battery since it is。not。included to make shipping easier and some way to hang the completed pendant from your neck when you assemble it. The battery you provide should last over a week if left on continuously and much longer if switched off when not in use.。Note：Since this product is a kit， assembly and a healthy knowledge of soldering will be required. The heART pendant kit does not come pre-assembled.

Description。The Raspberry Pi PoE+ HAT is designed to replace the existing Raspberry Pi PoE HAT in all new and existing designs. Like the original， the PoE+ HAT allows you to power your Raspberry Pi using Power over Ethernet networks. The PoE+ HAT meets all the requirements of the IEEE 802.3af(802.3at Type 1， PoE+)specifications. This ups the power the network can supply from 15.4 watts(PoE)to 25.5 Watts(PoE+)over CAT5 cable.。No modification to the main Raspberry Pi board is needed for the PoE+ HAT to work but you will need to ensure that your Pi's software is up to date for all functionality to be available. The Raspberry Pi PoE+ HAT is fitted with a small fan that is controlled by the Raspberry Pi via I2C and will turn on and off automatically depending on the temperature of the main processor on your Pi.。Note：There is no Raspberry Pi included with this product. Your desired Pi will need to be purchased separately.。Features。Input voltage：37-57V DC， Class 2 device。Output power：5V DC/3.0A。Cooling：25mm×25mm brushless fan delivering 2.2CFM forprocessor cooling。Fully isolated switch-mode power supply。Fan control。Mechanically compatible with the existing Raspberry Pi PoE HAT

Description。The SparkFun Soil Moisture Sensor is a simple breakout for measuring the moisture in soil and similar materials. The soil moisture sensor is pretty straightforward to use. The two large， exposed pads function as probes for the sensor， together acting as a variable resistor. The more water that is in the soil means the better the conductivity between the pads will be， resulting in a lower resistance and a higher SIG out. This version of the Soil Moisture Sensor includes a 3-pin screw pin terminal pre-soldered to the board for easy wiring and setup.。To get the SparkFun Soil Moisture Sensor functioning， all you will need is to connect the VCC and GND pins to your Arduino-based device(or compatible development board). You will receive a SIG out， which will depend on the amount of water in the soil. One commonly known issue with soil moisture senors is their short lifespan when exposed to a moist environment. To combat this， we've had the PCB coated in gold finishing(ENIG， or Electroless Nickel Immersion Gold).。Note：Check the Hookup Guide below for assembly and weatherproofing instructions， as well as a simple example project that you can put together yourself!。Get Started with the Soil Moisture Sensor Guide

。Description。The SparkFun Qwiic Soil Moisture Sensor is a simple breakout for measuring the moisture in soil and similar materials. The soil moisture sensor is pretty straightforward to use. The two large， exposed pads function as probes for the sensor， together acting as a variable resistor. The more water that is in the soil means the better the conductivity between the pads will be， resulting in a lower resistance and a higher SIG out. This version of the Soil Moisture Sensor includes a Qwiic connector， making it even easier to use this sensor!。To get the SparkFun Soil Moisture Sensor functioning， all you will need is to connect the VCC and GND pins to your Arduino-based device(or compatible development board). You will receive a SIG out， which will depend on the amount of water in the soil. One commonly known issue with soil moisture senors is their short lifespan when exposed to a moist environment. To combat this， we've had the PCB coated in gold finishing(ENIG， or Electroless Nickel Immersion Gold).。Note：Check the Hookup Guide below for assembly and weatherproofing instructions， as well as a simple example project that you can put together yourself!。Get Started with the Soil Moisture Sensor Guide

Description。The SparkFun ProDriver makes it easy to start developing with the TC78H670FTG bipolar stepper motor driver from Toshiba! Latch terminals provide instant solder-less connections to every feature offered. Use our extensive Arduino Library w

Description。This is the FemtoBuck， a small-size single-output constant current LED driver. Each FemtoBuck has the capability to dim a single high-power channel of LEDs from 0-350mA at up to 36V while the dimming control can be either accessed via PWM or analog signal from 0-2.5V. This board is based off of the PicoBuck LED Driver， developed in collaboration with Ethan Zonca， except instead of blending three different LEDs on three different channels the FemtoBuck controls just one.。For the FemtoBuck， we've increased the voltage ratings on the parts to allow the input voltage to cover the full 36V range of the AL8805 driver. Since the FemtoBuck is a constant current driver， the current drawn from the supply will drop as supply voltage rises. In general， efficiency of the FemtoBuck is around 95%， depending on the input voltage. On board each FemtoBuck you will find two inputs for both power input and dimming control pins and an area to install a 3.5mm screw terminal. Finally at either side of the board you will find small indents or "ears" which will allow you to use a zip tie to secure the wires to the board after soldering them down. This version of the FemtoBuck is equipped with a small solder jumper that can be closed with a glob of solder to double the output current from 330mA to 660mA.

Description。The SparkFun MicroMod Data Logging Board offers a highly customizable， low-power data logging platform using the MicroMod system allowing you to choose your own Processor to pair with the Carrier Board. The Data Logging Carrier Board breaks out connections for I2C via a Qwiic connector or standard 0.1"-spaced PTH pins along with SPI and serial UART connections for logging data from peripheral devices using those communication protocols.。The Data Logging Carrier Board allows you to control power to both the Qwiic connector on the board and a dedicated 3.3V power rail for non-Qwiic peripherals so you can pick and choose when to power the peripherals you are monitoring the data from. It also features a charging circuit for single-cell Lithium-ion batteries along with a separate RTC battery-backup circuit to maintain power to a real-time clock circuit on your Processor Board.。MicroMod is a modular interface ecosystem that connects a microcontroller "processor board" to various "carrier board" peripherals. Utilizing the M.2 standard， the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!。Get Started with the MicroMod Data Logging Carrier Board Guide。Features。M.2 MicroMod Connector。microSD socket。USB-C Connector。3.3V 1A Voltage Regulator。Qwiic Connector。Boot/Reset Buttons。RTC Backup Battery Charge Circuit。Independent 3.3V regulators for Qwiic bus and peripheral add-ons。Controlled by digital pins on Processor Board to enable low power sleep modes。Phillips #0 M2.5x3mm screw included

Description。Are you low on I/O? No problem! The SX1509 Breakout is 16-channel GPIO expander with an I2C interface that means with just two wires， your microcontroller can interface with 16 fully configurable digital input/output pins. But the SX1509 can do so much more than just simple digital pin control. It can produce PWM signals， so you can dim LEDs. It can be set to blink or even breathe pins at varying rates. This breakout is similar to multiplexer or "mux，" in that it allows you to get more IO from less pins. And， with built-in keypad engine， it can interface with up to 64 buttons set up in an 8x8 matrix.。Two headers at the top and bottom of the breakout board function as the input and control headers to the board. This is where you can supply power to the SX1509， and where your I2C signals SDA and SCL will terminate. GPIO and power buses are broken out in every-which direction， and configurable jumpers cover most of the rest of the board.。Since the I/O banks can operate between 1.2V and 3.6V(5.5V tolerant)independent of both the core and each other， this device can also work as level-shifter. The SX1509 breakout makes it easy to prototype so you can add more I/O onto your Arduino or I/O limited controller. We've even spun up an Arduino Library to get you started!。Features。Enable Direct Level Shifting Between I/O Banks and Host Controller。5.5V Tolerant I/Os， Up to 15mA Output Sink on All I/Os。Integrated LED Driver with Intensity Control。On-Chip Keypad Scanning Engine Supports Up to 8x8 Matrix(64 Keys)。16 Channels of True Bi-directional Style I/O。400kHz I2C Compatible Slave Interface

Description。The SparkFun MicroMod Environmental Function Board adds additional sensing options to the MicroMod Processor Boards. This Function Board includes three sensors to monitor air quality(SGP40)， humidity temperature(SHTC3)， and CO2 concentrations(STC31)in your indoor environment. To make it even easier to use， all communication is over the MicroMod's I2C bus!。The SGP40 measures the quality of the air in your room or house. The SGP40 uses a metal oxide(MOx)sensor with a temperature controlled micro hotplate and provides a humidity-compensated volatile organic compound(VOC)based indoor air quality signal. Both the sensing element and VOC Algorithm feature an unmatched robustness against contaminating gases present in real world applications enabling a unique long term stability as well as low drift and device to device variation.。The SHTC3 is a highly accurate digital humidity and temperature sensor. The SHTC3 uses a capacitive humidity sensor with a relative humidity measurement range of 0 to 100% RH and bandgap temperature sensor with a temperature measurement range of -40℃ to 125℃. The SHTC3 builds on the success of their SHTC1 sensor with higher accuracy(±2% RH， ±0.2℃)than its predecessor， enabling greater flexibility.。The STC31 measures CO2 concentrations based on thermal conductivity and has two CO2 measurement ranges：0 to 25 vol%； and 0 to 100 vol%. The measurement repeatability is 0.2 vol%， with a stability of 0.025 vol% / ℃. The measurement accuracy depends on the measurement range：0.5 vol% + 3% measured value； 1 vol% + 3% measured value. Using measurements from the SHTC3， the STC31 is able to provide humidity-compensated measurements together with improved temperature compensation. The STC31 can compensate for atmospheric pressure too - which is handy if， like us， you're up in the mountains!。The outstanding performance of these three sensors is based on Sensirion's patented CMOSens(R)technology， which combines the sensor element， signal processing， and digital calibration on a small CMOS chip. The well-proven CMOS technology is perfectly suited for high-quality mass production and is the ideal choice for demanding and cost-sensitive OEM applications.。Utilizing our handy M.2 MicroMod connector， no soldering is required to connect it to your system. Simply match up the key on your processor and function board's beveled edge connector to their respective key on the M.2 connector， then secure them to the main board with screws. The MicroMod Environmental Function Board can then be read via the I2C port. The board is equipped with the AP2112 3.3V voltage regulator， I2C pull-up resistors， power LED， jumper to disable the LED， and jumpers for alternative STC31 addresses.。Note：A MicroMod Processor and Main Board are not included with this MicroMod Environmental Function Board. These boards will need to be purchased separately.。MicroMod is a modular interface ecosystem that connects a microcontroller "processor board" to various "carrier board" peripherals. Utilizing the M.2 standard， the MicroMod standard is designed to easily swap out processors and function boards on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!。Get Started with the MicroMod Environmental Function Board。Features。Input voltage range。2.5V to 6.0V。Typ.。5V。via Main Board's USB connector。Typ.。～3.7V to 4.2V。via Main Board's LiPo battery Connector。I/O voltage。3.3V。AP2112 3.3V voltage regulator(rated 600mA)。Power LED。I2C pull-up resistors。Sensirion SGP40 Air Quality Sensor。Uses I2C interface。Address：0x59(default)。Operating voltage range。1.7V to 3.6V(Typ.。3.3V。)。Operating temperature range。-20℃ to +55℃。Typical current consumption。2.6mA。during continuous operation(at 3.3V)。34μA。when idle(heater off)。Output signal。Digital raw value(SRAW)：0 - 65535 ticks。Digital processed value(VOC Index)：0 - 500 VOC index points。Switch-on behavior。Time until reliably detecting VOC events：<60s。Time until specifications are met：<1h。Recommended sampling interval。VOC Index：1s。SRAW：0.5s - 10s(Typ. 1s)。Sensirion SHTC3 Humidity and Temperature Sensor。Uses I2C interface。Address：0x70(default， non-configurable)。Operating voltage range。1.62V - 3.6V(Typ.。3.3V。)。Operating temperature range。-40℃ to +125 ℃。Relative Humidity。Measurement range：0% to 100%。Typical accuracy：±2 %RH。Resolution：0.01 %RH。Temperature。Measurement range：-40℃ to +125 ℃。Typical accuracy：±0.2 ℃。Resolution：0.01 ℃。Typical current consumption(varies based on mode)。4.9μA to 430μA(Normal Mode)。0.5μA to 270μA(Low Power Mode)。Allows the STC31 to compensate for humidity and temperature。Sensirion STC31 CO2 Sensor。Uses I2C interface。Addresses：0x29(default)。， 0x2A， 0x2B， 0x2C。Operating voltage range。2.7V to 5.5V(Typ.。3.3V。)。Operating temperature range。-20 ℃ to +85 ℃。Calibrated for CO2 in N2 and CO2 in air。Measurement ranges。0 to 25 vol% in N2。0 to 100 vol% in air。Accuracy。0.5 vol% + 3% measured value in N2。1 vol% + 3% measured value in air。Concentration and temperature resolution：16-bit。Repeatability：0.2 vol%。Temperature stability：0.025 vol% / ℃。Start-up time：14 ms。Thermal conductivity sensor provides calibrated gas concentration and temperature output。Jumpers。PWR LED。I2C pull-up resistors。STC31 address selection。Note：The I2C addresses that are reserved for each sensor is 0x59(SGP40)， 0x70(SHTC3)， 0x29(STC31). A multiplexer/Mux is required to communicate to multiple SHTC3 sensors on a single bus. The SHTC3 uses the same address as the Qwiic Mux(0x70). For advanced users that are using multiple SHTC3's with the Qwiic Mux， you will need to adjust the Qwiic Mux's default address.

Description。Access all the pins(i.e. ATP)of the MicroMod Processor Boards with the SparkFun MicroMod ATP Carrier Board! This board breaks out the MicroMod Processor Board's pins on the M.2 connector to 0.1" spaced female headers and PTH pads on the edge of the board. This Carrier Board is great if you're interested in testing out different MicroMod Processor Boards for your application.。A modern USB-C connector makes programming easy. In addition to the pins broken out， two separate Qwiic-enabled I2C ports allow you to easily daisy chain Qwiic-enabled devices. We've exposed the SWD pins for more advanced users who prefer to use the power and speed of professional tools. A USB-A connector is provided for Processor Boards that have USB Host support. A backup battery is provided for processor boards with RTC. If you need a "lot" of GPIO with a simple-to-program， ready for market module， the ATP is the fix you need. We've even added a convenient jumper to measure the current consumption for low power testing.。MicroMod is a modular interface ecosystem that connects a microcontroller "processor board" to various "carrier board" peripherals. Utilizing the M.2 standard， the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!。Get Started with the MicroMod ATP Carrier Board Guide。Features。M.2 Connector。Operating Voltage Range。～3.3V to 6.0V(via VIN to AP7361C 3.3V Voltage Regulator)。3.3V(via 3V3)。Ports [1]。1x USB type C。1x USB type A Host。2x Qwiic Enabled I2C。1x CAN。1x I2S。2x SPI。2x UARTs。2x Dedicated Analog Pins。2x Dedicated PWM Pins。2x Dedicated Digital Pins。12x General Purpose Input Output Pins。1x SWD 2x5 header。1mAh battery backup for RTC。Buttons。Reset。Boot。LEDs。Power。3.3V。Phillips #0 M2.5x3mm screw included。[1] Note：Depending on the design of the Processor Board， not all the pins may be accessible.

Description。The LIDAR-Lite v4 LED sensor is the next step in the LIDAR-Lite line. A small， lightweight， low-power optical ranging sensor. It's the first to incorporate ANT profile wireless networking technology into an optical sensor. Its built-in nRF52840 processor means that developers can create custom applications， or be operated as a stand-alone device right out of the box by using the preloaded stock application.。Like the LIDAR-Lite v3 and LIDAR-Lite v3HP sensors； it can also be directly connected to an external micro-controller running a custom user application. As such， it provides a highly adaptable option for OEM and maker applications in robotics， Internet of Things， and unmanned vehicles ― or any application where an ultrasonic sensor might otherwise be used. It's perfect as the basic building block for applications where wireless capabilities， small size， light weight， low power consumption and high performance are important factors in a short-range， 10-meter， optical distance measuring sensor.。The LIDAR-Lite v4 requires an external 5VDC power source and soldering is required. This Time-of-Flight ranging module uses a LED and optics for ranging. It does not use a laser； therefore， it is inherently eye-safe under normal usage.。Features。Resolution：1 cm。Measurement repeatability：As measured indoors to a 90% reflective target。1 cm is equivalent to 1 standard deviation。Using "high accuracy" mode， with averaging：+/- 1 cm to 2 meters。+/- 2 cm to 4 meters。+/- 5 cm to 10 meters。Range：5 cm to 10 meters(as measured from back of unit)。Update rate：I2C = >200 Hz typical。ANT(R)= up to 200 Hz to a 90% target indoors at 2m in normal operating mode。Interface：I2C or ANT； user configurable for SPI using the Nordic SDK。Power(operating voltage)：4.75 - 5.25 VDC。Current consumption：2mA idle， 85mA during acquisition。Operating temperature：-20 to 60° C。LED wavelength：940 nm。Beam divergence：4.77°。Optical aperture：14.9 mm。Unit size(HxWxD)：2.1"×0.8"×0.9"(52.2×21.2×24.0 mm)。Weight：14.6 g(0.5 oz)

Description。The FLIR Lepton(R)2.5 - Thermal Imaging Module is a radiometric-capable long wave infrared(LWIR)camera solution that is smaller than a dime， fits inside a smartphone， and is less expensive than traditional IR cameras. With a focal plane array of 80x60 active pixels， this Lepton easily integrates into native mobile-devices and other electronics as an IR sensor or thermal image sensor. The radiometric Lepton captures accurate， calibrated， and non-contact temperature data in every pixel.。For large quantities：We currently have a limit of one per customer order on the FLIR Lepton 2.5 module due to supply chain issues as a result of COVID-19. If you need to place a distributor order please contact your sales rep and they will assist you. For bulk order for this module please visit our Volume Pricing Page for inquiries of stock. At this time， we cannot guarantee orders for this module but we will do what we can to work with you in fulfilling your request.。Features。Effective Frame Rate：8.6 Hz(commercial application exportable)。Input Clock：25-MHz nominal， CMOS IO Voltage Levels。Output Format：User-selectable 14-bit， 8-bit(AGC applied)， or 24-bit RGB(AGC and colorization applied)。Pixel Size：17 μm。Radiometric Accuracy：High gain：Greater of +/- 5℃ or 5%(typical)Low gain：Greater of +/- 10℃ or 10%(typical)。Scene Dynamic Range：-10-140 ℃(high gain)； up to 450℃(low gain)typical。Spectral Range：Longwave infrared， 8 μm to 14 μm。Temperature Compensation：Automatic. Output image independent of camera temperature.。Thermal Sensitivity：<50 mK(0.050° C)。Video Data Interface：Video over SPI。Control Port：CCI(I2C-like)， CMOS IO Voltage Levels。Package Dimensions - Socket Version(w×l×h)：11.8×12.7×7.2 mm。Mechanical Interface：32-pin socket interface to standard Molex(R)socket。Non-Operating Temperature Range：-40 ℃ to +80 ℃。Optimum Temperature Range：-10℃ to +80℃。Shock：1500 G @ 0.4 ms。Array format：80×60， progressive scan。FOV - Diagonal：63.5°。FOV - Horizontal：50°(nominal)。Image Optimization：Factory configured and fully automated。Non-Uniformity Correction(NUC)：Automatic with shutter。Sensor Technology：Uncooled VOx microbolometer。Solar protection：Integral。Input Supply Voltage：2.8 V， 1.2 V， 2.5 V to 3.1 V IO。Power Dissipation：150 mW(operating)， 650 mW(during shutter event)， 4 mW(standby)

Description。Have some fun coding your very own AI robot with TJBot， a do-it-yourself template to learn， experiment with and explore AI with IBM Watson. The project consists of open source step-by-step recipes， or coding instructions， designed for a Ras

Description。The SparkFun Artemis Development Kit is the latest board to be released around the SparkFun Artemis Module and it allows access to more software development features than previous Artemis based boards. This Kit includes the SparkFun Artemis DK board as well as the accessories(Himax camera USB-C cable)needed to get started right away. Recommended software used to program the Artemis DK are the Arduino IDE， Arm(R)Mbed(TM)OS(Studio and CLI)， and AmbiqSDK. An updated USB interface(MKL26Z128VFM4 Arm(R)Cortex(R)-M0+ MCU， from NXP)allows the Artemis Dev Kit to act as：Mass Storage Device(MSD)：Used to provide drag and drop programming to the Artemis Module.。Human Interface Device(HID)：Used for the debugging interface to the Artemis Module.。Communication Port(COM)：Used to provide a serial communication UART between the Artemis and the USB connection(PC).。The Artemis Module provides a Cortex(R)-M4F with BLE 5.0 running at 48MHz with an available 96MHz turbo mode and power as low as 6uA per MHz(less than 5mW). The SparkFun Artemis Module is fully FCC/IC/CE certified with 1M flash and 384k RAM you'll have plenty of room for your code. The flexibility of the Artemis module starts with our Arduino core. You can program and use the Artemis module just like you would an Uno or any other Arduino. Additional functionality stems from the ability of the Artemis Dev kit to run RTOS such as the Arm Mbed OS， or the AmbiqSDK.。Attached to the。"Qwiic"。I2C bus， we've added a LIS2DH12TR MEMS accelerometer(for things like gesture recogntion)， a digital MEMS microphone， and an edge camera connector for the Himax CMOS imaging camera to experiment with always-on voice commands， and image recognition with TensorFlow and machine learning. All of the Artemis Development Kit pins are broken out to 0.1" spaced female headers(i.e. connectors). There are also two rows of breakout pins with 0.1" pitch spacing for headers； and a 0.08" pitch spacing to clip on IC-hooks， used by most logic analyzers. Additionally the Silk on the back of the Artemis DK acts as a chart to show pins by functionality(peripherals， ADC， PWM， UART0， UART1)and act as an aid while developing software. The board is powered programmed via USB-C， and includes a Qwiic connector to make I2C easy and is fully compatible with SparkFun's Arduino core to be programmed under the Arduino IDE.。Get Started With the SparkFun Artemis Development Kit Guide。Features。Artemis Dev Kit。Compatible with Arduino， Mbed(TM)OS， and AmbiqSDK Development Programs。Power：5V Provided Through the USB-C Connector。1.8V， 3.3V， and 5V Available on Power Header。Interface Chip(MKL26Z128VFM4 ARM(R)Cortex(R)-M0+ MCU)：Drag and Drop Programming。SWD Interface。JTAG Programming PTH。Artemis Module：Apollo3 ARM(R)Cortex(R)-M4F MCU。BLE 5.0 with FCC Certification。24 Breakout I/O Pins。Eight 14-bit ADC Pins。Eighteen 16-bit PWM Pins。Two Independent UART Ports。Three Peripheral I2C/SPI Buses。JTAG Programming PTH。Sensors：3-axis Accelerometer(LIS2DH12)。PDM Microphone(SPH0641LM4H-1)。Camera Connector(for the Himax HM01B0 Camera)。Qwiic Connector。On Primary I2C Bus。Himax HM01B0 Camera。Image Sensor。Ultra Low Power Image Sensor(ULPIS)designed for Always On vision devices and applications。High sensitivity 3.6μ BrightSenseTM pixel technology。320×320 active pixel resolution with support for QVGA window， vertical flip and horizontal mirror readout。Programmable black level calibration target， frame size， frame rate， exposure， analog gain(up to 8x)and digital gain(up to 4x)。Automatic exposure and gain control loop with support for 50 / 60Hz flicker avoidance。Flexible 1bit， 4bit and 8bit video data interface with video frame and line sync。Motion Detection circuit with programmable ROI and detection threshold with digital output to serve as an interrupt。On-chip self oscillator。I2C 2-wire serial interface for register access。High CRA for low profile module design。Sensor Parameters。Active Pixel Array 320×320。Pixel Size 3.6 μm×3.6 μm。Full Image Area 1152 μm×1152 μm。Diagonal(Optical Format)1.63 mm(1/11″)。Color Filter Array Monochrome and Bayer。Scan Mode：Progressive。Shutter Type：Electronic Rolling Shutter。Frame Rate MAX 51 fps @ 320×320， 60 fps @ 320×240(QVGA)。CRA(maximum)30℃。Sensor Specifications。Supply Voltage：Analog - 2.8 V， Digital - 1.5V(Internal LDO：1.5V - 2.8V)， I/O - 1.5 - 2.8V。Input Reference Clock：3 - 50 MHz。Serial Interface(I2C)：2-wire， 400 KHz max.。Video Data Interface：1b， 4b， 8b with frame / line SYNC。Output Clock Rate MAX：50 MHz for 1bit， 12.5 MHz for 4bit， 6.25 MHz for 8bit。Est. Power Consumption(include IO with 5pF load)：QVGA 60FPS(Typical)<4 mW。QVGA 30FPS(Typical)<2 mW

Description。This flat mill is perfect for roughing or machining flat or primsatic parts. The cutter is coated with Ziconium Nitride，(ZrN).。ZrN is a specialty coating that makes it exceptional for temperature sensitive materials. The coating has e

Description。These are the sturdy little stomp switches that you find on guitar effects pedals. They're 3PDT(three-pole， double-throw)type switches. These switches allow you to modify your effects for true bypass and lets you wire a status indicator LED. This is useful for stage performers， as it leaves no question if the "box" is on or off.。These are the same Stomp Switches found in our Proto Pedal Kit. Use these as replacements in some types of effects pedals or， better yet， build your own!

Description。The SparkFun I2S Audio Breakout board uses the MAX98357A digital to analog converter(DAC)， which converts I2S(not be confused with I2C)audio to an analog signal to drive speakers. The I2S Audio Breakout converts the digital audio signals using the I2S standard to an analog signal and amplifies the signal using a class D amplifier which can deliver up to 3.2W of power into a 4Ω load. The board can be configured to output only the left channel audio， right channel， or both.。The SparkFun I2S Audio Breakout board is fairly simple， requiring only a few pin connections to get it up and working. By default the board is configured in "mono" operation， meaning the left and right signals are combined together to drive a single speaker. If you want a separate speaker for the left and right audio channels you'll need to cut the mono jumper. In addition to being able to select the audio channel output， the gain can also be configured in a few ways. The gain of the amplifier can be configured from as low as +3dB to as high as +15dB. While the channel selection can be configured on board， the gain however is controlled externally using the gain pin. By default， the board is configured for +9dB， but can be easily changed!。Get Started with the SparkFun I2S Audio Breakout Guide。Features。Supply Voltage Range：2.5V - 5.5V.。Output Power：3.2W into 4Ω at 5V.。Output Channel Selection：Left， Right， or Left/2 + Right/2(Default).。Sample Rate：8kHz - 96kHz.。Sample Resolution：16/32 bit.。Quiescent Current：2.4mA.。Filterless Class D Outputs。No MCLK Required。Click and Pop Reduction。Short-Circuit and Thermal Protection.

Description。This is an ET Series replacement soldering tip for the Weller WE1010 soldering station. Each conical-type tip measures 0.02"(0.6mm)wide. Replacing the tip is a breeze --- simply unscrew the currently attached tip， slip the replacement tip i

Description。The Raspberry Pi 4 Case Fan works with Raspberry Pi 4 and the Raspberry Pi 4 Case. Designed for overclockers and other power users， it keeps your Raspberry Pi 4 at a comfortable operating temperature even under heavy load.。The temperatu

Description。The SparkFun MAX31855K Thermocouple Breakout is a simple 14-bit resolution， SPI-compatible， serial interface thermocouple digitizer that makes reading a wide range of temperatures possible. A thermocouple works by taking two wires made of dissimilar metals， connecting them at the two ends， and making a temperature gradient between one end and the other(a 'hot' end and a 'cold' one). Once this is achieved， a voltage potential is formed and current flows. The SparkFun Thermocouple Breakout takes a standard Type-K thermocouple in one end， digitizes the temperature measured and sends that data out the other end via a SPI interface， thereby interpreting the data and translating it for you to read!。With the SparkFun Thermocouple Breakout， the thermocouple's hot junction can be read from -200℃ to +700℃ with an accuracy of ±2℃ while the cold junction， inside the MAX31855K， can only range from -20℃ to +85℃ while maintaining ±2℃ accuracy. The MAX31855K constantly measures the temperature of the cold junction using an internal temperature-sensing diode. The MAX31855K requires a power source from +3.0V to +3.6V(+3.0V nominal)and only draws 1.5mA maximum.。The Thermocouple Breakout is designed to accept a standard thermocouple connector， for convenience and compatibility with probes you may already own. These connectors aren't necessary， and you could solder a thermocouple directly into the through-holes labeled '+' and '-'. If you decide to solder the thermocouple directly to the breakout board， it is recommended that the thermocouple be mounted for strain relief to avoid breaking the thin wires. Notches for a zip-tie or wire wrapping have been provided in the PCB opposite the header for this purpose.。Features。14-bit Resolution。SPI-Compatible， Serial Interface。-200℃ to +700℃ Temperature Reading with ±2℃ Accuracy。3.0V to 3.6V(+3.0V nominal)Required。Accepts Type-K Thermocouple

Description。Get with the times， already! This SparkFun Real Time Clock(RTC)Module is a Qwiic-enabled breakout board for the RV-1805 chipset. The RTC is ultra-low power(running at only about 22nA in its lowest power setting)so it can use a supercapacitor for backup power instead of a normal battery. This means you get plenty of charge and discharge cycles without any degradation to the "battery." To make it even easier to get your readings， all communication is enacted exclusively via I2C， utilizing our handy Qwiic system so no soldering is required to connect it to the rest of your system. However， we still have broken out 0.1"-spaced pins in case you prefer to use a breadboard.。This RTC module's built in RV-1805 has not one， but two internal oscillators：a 32.768kHz tuning fork crystal and a low power RC based oscillator and can automatically switch between the two using the more precise crystal to correct the RC oscillator every few minutes. This feature allows the module to maintain a very accurate date and time with the worst case being +/- about three minutes over a year. The RV-1805 also has a built in trickle charger so as soon as the RTC is connected to power the it will be fully charged in under 10 minutes and has the ability to switch power to other systems allowing it to directly turn on or off a power hungry device such as a microcontroller or RF engine.。There is also the option to add a battery to the board if the supercapacitor just isn't going keep your project powered long enough(keep in mind， the supercap can hypothetically make the board keep time for around 35 days)， you can solder on an external battery. That means you can let board sit with no power or connection to the outside world and the current hour/minute/second/date will be maintained.。Note：。The I2C address of the RV-1805 is 0x69 and is hardware defined. A multiplexer/Mux is required to communicate to multiple RV-1805 sensors on a single bus. If you need to use more than one RV-1805 sensor consider using the Qwiic Mux Breakout.。The SparkFun Qwiic connect system is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.。Get Started with the RV-1805 Real Time Clock Module Guide。Features。Operating Voltage(Startup)：1.6V - 3.6V。Operating Voltage(Timekeeping)：1.5V - 3.6V。Operating Temperature：-40℃ - 85℃。Time Accuracy：±2.0 ppm。Current Consumption：22nA(Typ.)。I2C Address：0xD2。Supercapacitor for Backup Power。2x Internal Oscillators。2x Qwiic Connectors

。Description。This is a class 10 16GB microSD memory card， perfect for housing operating systems for single board computers and a multitude of other information. Since this is a class 10 microSD it is capable of transferring data at speeds up to 45MB/s allowing it to have a noticeable increase in performance while running an on-board OS.。Please note， this is only the microSD card and does NOT come with an SD adapter. A microSD USB Reader can be purchased separately. This microSD card is perfect when used with the Raspberry Pi， or SparkFun Micro SD sniffer.。Features。Class 10(up to 45MB/s read-write)。16GB Storage

Description。We all like to know the temperature， right? Well， with the SparkFun TMP102 Digital Temperature Sensor， we've made it just about as easy as it gets. Based on the original Digital Temperature Sensor Breakout TMP102， we've added Qwiic connectors to bring this board into our plug-and-play Qwiic Ecosystem and added an address jumper instead of breaking out the address pin. However， we still have broken out 0.1"-spaced pins in case you prefer to use breadboard.。The TMP102 itself is an easy-to-use digital temperature sensor from Texas Instruments. While some temperature sensors use an analog voltage to represent the temperature， the TMP102 uses the I2C bus of the Arduino to communicate the temperature.。The TMP102 is capable of reading temperatures to resolution of 0.0625℃， and is accurate up to 0.5℃. The breakout has built-in 4.7kΩ pull-up resistors for I2C communications and runs from 1.4V to 3.6V. I2C communication uses an open drain signaling， so there is no need to use level shifting.。The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.。Get Started with the Qwiic TMP102 Digital Temperature Sensor Guide。Features。Uses the I2C interface。I2C Address：0x48 by default。(Three additional addresses available， as well)。12-bit， 0.0625℃ resolution。Typical temperature accuracy of ±0.5℃。3.3V sensor。Supports up to four TMP102 sensors on the I2C bus at time。2x Qwiic Connectors

Description。LIDAR has never looked so good! This is the LIDAR-Lite v3HP， a compact， high-performance optical distance measurement sensor from Garmin(TM). The LIDAR-Lite v3HP is。the。ideal optical ranging solution for drone， robot， or unmanned vehicle applications. Each sensor is housed in a durable， IPX7-rated housing and includes all the core features and user configurability of the popular LIDAR-Lite v3.。The v3HP is very similar in function to that of the v3 but it can now sample faster at rates greater than 1kHz(where as the v3 is only capable of up to 500Hz). Another improvement is that this v3HP model is more power efficient with current consumption rates 40mA less than the v3(that's 65mA as opposed to 105mA while idle， and 85mA instead of 130mA while acquiring).。Each LIDAR-Lite v3HP has a range of 1m to 40m and features an edge-emitting， 905nm(1.3 watts)， single-stripe laser transmitter， 8m Radian beam divergence， and an optical aperture of 12.5mm. This version of the LIDAR-Lite still operates at 5VDC(6V max)with a peak power of 1.3W and still possesses an accuracy of +/- 2.5cm at >2m. On top of everything else， the LIDAR-Lite is user-configurable， allowing adjustment between accuracy， operating range and measurement time and can be interfaced via I2C or PWM with the attached 200mm cable.。Note：CLASS 1 LASER PRODUCT CLASSIFIED EN/IEC 60825-1 2014. This product is in conformity with performance standards for laser products under 21 CFR 1040， except with respect to those characteristics authorized by Variance Number FDA-2016-V-2943 effective September 27， 2016.。Get Started with the LIDAR-Lite v3HP Guide。Features。Resolution：1 cm。Typical accuracy：+/- 2.5cm at distances greater than 2 meters(Refer to operating manual for complete operating specifications)。Range：1m to 40m。Update rate：Greater than 1kHz。Interface：I2C or PWM。Power(operating voltage)：4.75-5VDC； 6V Max。Current consumption：65ma idle； 85ma during acquisition。Operating temperature：-20℃ to 60℃。Laser wave length/Peak power：905nm/1.3W。Beam divergence：8m Radian。Optical aperture：12.5mm。Water rating：IPX7。Unit dimensions：24.5mm×53.5mm×33.5mm(1.0in×2.1in×1.3in)。Weight：34g(1.2oz)

Description。The SparkFun Pulse Oximeter and Heart Rate Sensor is an I2C based biometric sensor， utilizing two chips from Maxim Integrated：the MAX32664 Biometric Sensor Hub and the MAX30101 Pulse Oximetry and Heart Rate Module. While the latter does all the sensing， the former is an incredibly small and fast Cortex M4 processor that handles all of the algorithmic calculations， digital filtering， pressure/position compensation， advanced R-wave detection， and automatic gain control. We've provided a Qwiic connector to easily connect to the I2C data lines but you will also need to connect to two additional lines. This board is very small， measuring at 1in×0.5in(25.4mm×12.7mm)， which means it will fit nicely on your finger without all the bulk.。The MAX30101 does all the sensing by utilizing its internal LEDs to bounce light off the arteries and arterioles in your finger's subcutaneous layer and sensing how much light is absorbed with its photodetectors. This is known as photoplethysmography. This data is passed onto and analyzed by the MAX32664 which applies its algorithms to determine heart rate and blood oxygen saturation(SpO2). SpO2 results are reported as the percentage of hemoglobin that is saturated with oxygen. It also provides useful information such as the sensor's confidence in its reporting as well as a handy finger detection data point. To get the most out of the sensor we've written an Arduino Library to make it easy to adjust all the possible configurations.。The SparkFun Qwiic connect system is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.。Get Started with the Pulse Oximeter and Heart Rate Monitor Hookup Guide。Features。SparkFun Pulse Oximeter and Heart Rate Sensor。MAX30101 and MAX32664 sensor and sensor hub。Qwiic connectors for power and I2C interface。I2C Address：0x55。MAX30101 - Pulse Oximeter and Heart-Rate Sensor。Heart-Rate Monitor and Pulse Oximeter Sensor in LED Reflective Solution。Integrated Cover Glass for Optimal， Robust Performance。Ultra-Low Power Operation for Mobile Devices。Fast Data Output Capability。Robust Motion Artifact Resilience。MAX32664 - Ultra-Low Power Biometric Sensor Hub。Biometric Sensor Hub Solution。Finger-Based Algorithms Measure Pulse Heart Rate and Pulse Blood Oxygenation Saturation(SpO2)。Both Raw and processed data are available。Basic Peripheral mix optimizes size and performance

Description。The Raspberry Pi 4 Hardware Starter Kit provides a solid set of parts and instruction for working with the Raspberry Pi 4 in a more hardware-centric manner. While the Raspberry Pi isn't typically considered a go-to for hardware projects， its I/O pins hold a lot of benefits that you can use for a variety of applications. This kit covers the basics like using LEDs， and Buttons while providing a solid set of parts for working with any other hardware I/O and the 40-pin header. In addition， we've included all the parts needed for getting the Raspberry Pi 4 up and running whether it's on its own， or using a monitor(not included). The new 64GB MicroSD cards keep read/write commands running super fast， too.。Most of the contents of the kit rely on the use of the 2x20， 40-pin header， so we've included a special extender to allow you to plug in the ribbon cable while using the provided heatsink case. We've also included a Qwiic Shim for easily working with I2C based Qwiic boards with the Pi. No soldering is required for this kit!。Note：This variation includes the 4GB RAM option for the Raspberry Pi 4.。Get Started with the Raspberry Pi 4 Model B Guide

Description。The Raspberry Pi 4 Hardware Starter Kit provides a solid set of parts and instruction for working with the Raspberry Pi 4 in a more hardware-centric manner. While the Raspberry Pi isn't typically considered a go-to for hardware projects， its I/O pins hold a lot of benefits that you can use for a variety of applications. This kit covers the basics like using LEDs， and Buttons while providing a solid set of parts for working with any other hardware I/O and the 40-pin header. In addition， we've included all the parts needed for getting the Raspberry Pi 4 up and running whether it's on its own， or using a monitor(not included). The new 64GB MicroSD cards keep read/write commands running super fast， too.。Most of the contents of the kit rely on the use of the 2x20， 40-pin header， so we've included a special extender to allow you to plug in the ribbon cable while using the provided heatsink case. We've also included a Qwiic Shim for easily working with I2C based Qwiic boards with the Pi. No soldering is required for this kit!。Note：This variation includes the 8GB RAM option for the Raspberry Pi 4.。Get Started with the Raspberry Pi 4 Model B Guide

Description。The TB6612FNG Motor Driver can control up to two DC motors at a constant current of 1.2A(3.2A peak). Two input signals(IN1 and IN2)can be used to control the motor in one of four function modes：CW， CCW， short-brake and stop. The two motor outputs(A and B)can be separately controlled， and the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.。Logic supply voltage(VCC)can be in the range of 2.7--5.5VDC， while the motor supply(VM)is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel(or up to 3.2A for a short， single pulse).。This little board comes with all components installed as shown. Decoupling capacitors are included on both supply lines. All pins of the TB6612FNG are broken out to two 0.1" pitch headers； the pins are arranged such that input pins are on one side and output pins are on the other.。Note：。If you are looking for the SparkFun Motor Driver with headers， it can be found here or in the。Similar Products。below.。Get Started With the Motor Driver Hookup Guide。Features。Power supply voltage：VM = 15V max， VCC = 2.7--5.5V。Output current：Iout = 1.2A(average)/ 3.2A(peak)。Standby control to save power。CW/CCW/short-brake/stop motor control modes。Built-in thermal shutdown circuit and low-voltage detecting circuit。All pins of the TB6612FNG broken out to 0.1" spaced pins。Filtering capacitors on both supply lines

Description。If you are not needing a lot of power to start your FPGA adventure， or are looking for a more economical option， the Alchitry Cu FPGA Development Board might be the perfect option for you! The Alchitry Cu is a "lighter" FPGA version than the Alchitry Au but still offers something completely unique. FPGAs， or Field-Programmable Gate Arrays， are an advanced development board type for engineers and hobbyists alike to experience the next step in programming with electronics. The Cu truly exemplifies the trend of more affordable and increasingly powerful FPGA boards arriving each year. This board is a fantastic starting point into the world of FPGAs and the heart of your next project. Finally， now that this board is built by SparkFun， we added a Qwiic connector for easy I2C integration!。The Alchitry Cu uses the Lattice iCE40 HX FPGA with 7680 logic cells and is supported by the open source tool chain Project IceStorm. The Cu possesses 79 IO pins with eight general purpose LEDs； a 100MHz on-board clock that can be manipulated internally by the FPGA； a USB-C connector to configure and power the board； and a USB to serial interface for data transfer.。By adding stackable expansion boards similar to shields or HATs called "Elements，" the Alchitry Cu is able to expand its own hardware capabilities by adding prototyping spaces， buttons， LEDs， and more!。The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.。Get Started with our Learning FPGA Tutorials。Features。Lattice iCE40-HX8K FPGA - 7680 logic elements。79 IO pins(3.3V logic level)。USB-C to configure and power the board。Eight general purpose LEDs。One button(typically used as a reset)。100MHz on-board clock(can be multiplied internally by the FPGA)。Powered with 5V through USB-C port， 0.1" holes， or headers。USB to serial interface for data transfer(up to 12Mbaud)。Qwiic Connector。Dimensions of 65mm×45mm。。Examples。First FPGA Project - Getting Fancy with PWM。External IO and Metastability

Description。Sweepy 2.0 is our new Dust Boot made from clear polycarbonate.。Version 2.0 features a number of enhancements， that stem from customer feedback. These include：Sweepy 65 V2 - now can now travel up and down the spindle body allowing greater flexibility when milling。Now fits a 2.5" Shopvac as standard。Includes adapters for：2.5" direct hose。2.25" shop vac。36mm Festool/Fein。Includes our affectionally-named "Winston" a clear brush free base for 3d carving and video making。This 69mm size is for the Dewalt spindles.。Sweepy mounts directly to your spindle and is clamped with a machined quick-release. The compact design means that no travel is lost， and it works with any Shapeoko Z-axis with no adapters. The lower half is detachable and held in place using neodymium magnets， which means that the top half remains in place while the lower half detaches for easy access when changing bits.。(For the legal sticklers out there， the Shapeoko and Compact Router shown in the photos are not included with Sweepy.)

。Description。The Alchitry Au is the "gold" standard for FPGA development boards and it's possibly one of the strongest boards of its type on the market. FPGAs， or Field-Programmable Gate Arrays， are an advanced development board type for engineers and hobbyists alike to experience the next step in programming with electronics. The Au continues the trend of more affordable and increasingly powerful FPGA boards arriving each year. This board is a fantastic starting point into the world of FPGAs and the heart of your next project. Finally， now that this board is built by SparkFun， we added a Qwiic connector for easy I2C integration!。The Alchitry Au features a Xilinx Artix 7 XC7A35T-1C FPGA with over 33，000 logic cells and 256MB of DDR3 RAM. The Au offers 102 3.3V logic level IO pins， 20 of which can be switched to 1.8V； Nine differential analog inputs； Eight general purpose LEDs； a 100MHz on-board clock that can be manipulated internally by the FPGA； a USB-C connector to configure and power the board； and a USB to serial interface for data transfer. To make getting started even easier， all Alchitry boards have full Lucid support， a built in library of useful components to use in your project， and a debugger!。By adding stackable expansion boards similar to shields or HATs called "Elements，" the Alchitry Au is able to expand its own hardware capabilities by adding prototyping spaces， buttons， LEDs， and more!。The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.。Get Started with our Learning FPGA Tutorials。Features。Artix 7 XC7A35T-1C - 33，280 logic cells。256MB DDR3 RAM。102 IO pins(3.3V logic level， 20 of then can be switched to 1.8V for LVDS)。Nine differential analog inputs(One dedicated， Eight mixed with digital IO)。USB-C to configure and power the board。Eight general purpose LEDs。One button(typically used as a reset)。100MHz on-board clock(can be multiplied internally by the FPGA)。Powered with 5V through USB-C port， 0.1" holes， or headers。USB to serial interface for data transfer(up to 12Mbaud)。Qwiic Connector。Dimensions of 65mm×45mm。。Examples。First FPGA Project - Getting Fancy with PWM。External IO and Metastability

。Description。Do you want to replace a slider or a button on your art project or science experiment with a more interesting interface? This Capacitive Touch Slider is a "Qwiic" and easy way to add capacitive touch to your next project. With the board's built in touch pads， you can immediately start playing with the touch capabilities as three unique touch inputs or as a slider. You can also enable a touch input to act as a power button， customize the sensitivity for your own touch pads， and play with the interrupt alert LED. Utilizing our Qwiic system， no soldering is required to connect it to the rest of your system. However， we have broken out 0.1"-spaced pins in case you prefer to use a breadboard or create your own touch pads.。On the front of the board， there is an arrow shape which contains three separate capacitive touch pads. We also broke out the capacitive touch sensor lines as plated through-holes on the top of the board. You can use these pins to connect to your own capacitive touch pads. The CS1 pin connects to the left pad， the CS2 pin connects to the middle pad， and the CS3 pin connects to the right pad.。NOTE：The I2C address of the CAP1203 is 0x28 and is hardware defined. A multiplexer/Mux is required to communicate to multiple CAP1203 sensors on a single bus. If you need to use more than one CAP1203 sensor consider using the Qwiic Mux Breakout.。The SparkFun Qwiic connect system is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.。Get Started with the SparkFun Capacitive Touch Slider Guide。Features。Capacitive Touch。3 unique capacitive touch inputs。Features。Emulated slider。Power button setting。Programmable sensitivity。Automatic recalibration。I2C Address：0x28。Qwiic Enabled。Operating Range。Supply Voltage：3.3V - 5V

。Description。Passive Infrared(PIR)sensors are great for detecting motion in a small area around the sensor. The 170μA SparkFun EKMC4607112K PIR Breakout is a simple board equipped with an EKM-series PIR sensor from Panasonic(R). The EKM-series PIR sensors are optimized for small movements to offer motion-sensing options for continuously powered applications.。PIR sensors do not return specific distance data but instead monitor for IR light coming from objects in their field of view and will activate their signal when motion is detected in their sensing area， making them perfect for applications such as turning devices on automatically when motion is detected. Applications include home and building automation for energy saving， automated on/off lighting control， security， appliances， and IoT.。Panasonic's low-profile PIR motion sensors(10.9mm versus standard 14.4mm height offer space savings for constrained designs)consist of a lens to create various detection zones， an optical filter to block non-infrared light， pyroelectric sensing elements， electromagnetic shielding to all circuitry， and an impedance converter to get an electrical signal. This PIR sensor offers digital output across 32 zones at 5m detection distance with 90°×90° detection area.。Note：The sensitivity of passive infrared sensors is influenced by environmental conditions， so a performance evaluation test under representative conditions is recommended.。Get Started with the SparkFun PIR Breakout Guide。Features。Operating Voltage：2.3。-。4.0V。170 μA。standby current consumption。Lens diameter - 10.4mm。Lens Height - 10.9mm。5m detection distance。90°×90°(±45°)detection area

Description。Passive Infrared(PIR)sensors are great for detecting motion in a small area around the sensor. The 1μA SparkFun EKMB1107112 Qwiic PIR uses an EKM-series PIR sensor from Panasonic(R)paired with an ATTiny84 to interact with it using I2C with the Qwiic system. The EKMB-series PIR sensors are optimized for small movements to offer motion-sensing options for battery powered applications due to the low standby current draw of the sensor(1μA).。PIR sensors do not return specific distance data but instead monitor for IR light coming from objects in their field of view and will activate their signal when motion is detected in their sensing area， making them perfect for applications such as turning devices on automatically when motion is detected. Applications include home and building automation for energy saving， automated on/off lighting control， security， appliances， and IoT.。Panasonic's low-profile PIR motion sensors(10.9mm versus standard 14.4mm height offer space savings for constrained designs)consist of a lens to create various detection zones， an optical filter to block non-infrared light， pyroelectric sensing elements， electromagnetic shielding to all circuitry， and an impedance converter to get an electrical signal. This PIR sensor offers digital output across 32 zones at 5m detection distance with 90°×90° detection area.。Note：The sensitivity of passive infrared sensors is influenced by environmental conditions， so a performance evaluation test under representative conditions is recommended.。The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.。Get Started with the Qwiic PIR Hookup Guide。Features。Default I2C address 0x12(Alternate 0x13 selectable by solder jumper)。2x Qwiic connectors。2x3 header on the back of the board for reprogramming the ATTiny84。Lens diameter - 10.4mm。Lens Height - 10.9mm。1μA standby current consumption。5m detection distance。90°×90°(±45°)detection area

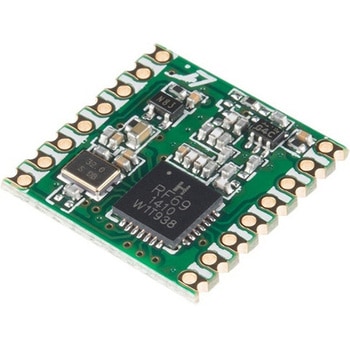

Description。This is the SparkFun RFM69 Breakout， a small piece of tech that breaks out all the pins available on the RFM69HCW module as well as making the transceiver easy to use. The RFM69HCW is an inexpensive and versatile radio module that operates in the unlicensed ISM(Industry， Science and Medicine)radio band. It's perfect for building inexpensive short-range wireless networks of sensors and actuators for home automation， citizen science and more.。This RFM69HCW operates on the 434MHz frequency and is capable of transmitting at up to 100mW and up to 300kbps， but you can change both of those values to fit your application. For example， you can maximize range by increasing the transmit power and reducing the data rate， or you can reduce both for short-range sensor networks that sip battery power. At full power and with simple wire antennas， we can get messages from one side of a large office building to the other through numerous internal walls. In open air you can reach 500 meters or more. With more complex antennas and modulation schemes， similar parts have successfully transmitted from space to the ground(by very smart amateur radio enthusiasts； your mileage may vary)!。The RFM69HCW uses an SPI(Serial Peripheral Interface)to communicate with a host microcontroller， and several good Arduino libraries are available. It supports up to 256 networks of 255 nodes per network， features AES encryption to keep your data private， and transmits data packets up to 66 bytes long.。SparkFun sells two versions of the RFM69HCW：a 915MHz version and this 434MHz version. Although the ISM band is license-free， the band itself is different in different areas. Very roughly， 915MHz is for use in the Americas， and the 434MHz version is for use in Europe， Asia and Africa. Check your local regulations for other areas.。Get Started with the RFM69HCW Hookup Guide。Features。Transmit power：-18dBm(0.016mW)to +20dBm(100mW)in 1dBm steps。Receive sensitivity：down to -120dBm at 1.2kbps。Modulation types：FSK GFSK MSK GMSK OOK。Bit rates(FSK)：1.2kbps to 300kbps。Voltage range：1.8V to 3.6V。Current consumption：0.1uA sleep， 1.25mA standby， 16mA receive， 130mA transmit(max)。Encryption：AES 128-bit(optional)。Packet buffer(FIFO)：66 bytes。0.8"×1.1"
