DescriptionLeveraging the ultra powerful Artemis Module， the SparkFun MicroMod Artemis Processor is the brain board of your dreams. With a Cortex-M4F with BLE 5.0 running up to 96MHz and with as low power as 6uA per MHz(less than 5mW)， the M.2 MicroMod connector allows you to plug in a MicroMod Carrier Board with any number of peripherals. Let's have a look at what this processor board has to offer! If you need Machine Learning capabilities， Bluetooth， I2C functionality to connect to all our amazing Qwiic boards， and more the Artemis Processor is the perfect choice for your MicroMod Carrier Board.At the heart of SparkFun's Artemis Module is Ambiq Micro's Apollo3 processor， whose ultra-efficient ARM Cortex-M4F processor is spec'd to run TensorFlow Lite using only 6uA/MHz. We've routed two I2C buses， eight GPIO， dedicated digital， analog， and PWM pins， multiple SPI as well as QuadSPI， and Bluetooth to boot. You really can't go wrong with this processor. Grab one today， pick up a compatible carrier board， and get hacking!MicroMod is a modular interface ecosystem that connects a microcontroller "processor board" to various "carrier board" peripherals. Utilizing the M.2 standard， the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!Get Started with the MicroMod Artemis Processor GuideFeaturesArtemis General Features1M Flash / 384k RAM48MHz / 96MHz turbo available6uA/MHz(operates less than 5mW at full operation)48 GPIO - all interrupt capable31 PWM channelsBuilt in BLE radio and antenna10 ADC channels with 14-bit precision with up to 2.67 million samples per second effective continuous， multi-slot sampling rate2 channel differential ADC2 UARTs6 I2C buses6 SPI buses2/4/8-bit SPI busPDM interfaceI2S InterfaceSecure 'Smart Card' interfaceFCC/IC/CE Certified(ID Number 2ASW8-ART3MIS)Specific Peripherals made available on MicroMod Artemis：1x USB dedicated for programming and debug1x UART with flow control2x I2C1x SPI1x Quad-SPI8x Fast GPIO2x Digital Pins2x Analog Pins2x PWM1x Differential ADC pairStatus LEDVIN Level ADCAdditional peripherals are available but are shared on dedicated MicroMod pins.

DescriptionSometimes referred to as "spade connectors，" these quick disconnects are really useful as power connectors in prototyping or in projects that are repeatedly assembled and disassembled. The shape of these connectors allows them to be used with a variety of retro game-cabinet buttons， as well as lights similar to the ones found in our Spectacle line.These Female Quick Disconnects are about 1/4" wide， come in packs of five， and can be affixed to a 16-14 AWG wire. Mating connectors can be found in the similar items section below.

DescriptionThe PicoBuck LED Driver is an economical and easy to use driver that will allow you to control and blend three different LEDs on three different channels. By default， each channel is driven at 330mA； that current can be reduced by either presenting an analog voltage or a PWM signal to the board. Version 12 of the board adds a solderable jumper that can be closed to increase the maximum current to 660mA. The new voltage regulator also increased the voltage rating on the various components on the board， allowing it to be used up to the full 36V rating of the AL8805 part.Three signal inputs are provided for dimming control. You can use the PWM signal from an Arduino or your favorite microcontroller to dim each channel individually， or you can tie them all to the same PWM for simultaneous dimming. Dimming can be done by an analog voltage(20%-100% of max current by varying voltage from .5V-2.5V)or by PWM(so long as PWM minimum voltage is less than .4V and maximum voltage is more than 2.4V)for a full 0-100% range. A small jumper is provided for each channel to allow you to increase the drive strength from 330mA to 660mA. Two mounting holes for 4-40 or M3 screws are provided on either side of the board. They are perforated so they can be easily snapped off with a pair of pliers， if a smaller footprint is desired.Note：If you're going to use screw terminals， this board uses two different sizes. Check the related products for both sizes you'll need.Note：The PicoBuck LED Driver was made in collaboration with Ethan Zonca. A portion of each sale is given back to him.

DescriptionLIDAR has never looked so good! This is the LIDAR-Lite v3HP， a compact， high-performance optical distance measurement sensor from Garmin(TM). The LIDAR-Lite v3HP istheideal optical ranging solution for drone， robot， or unmanned vehicle applications. Each sensor is housed in a durable， IPX7-rated housing and includes all the core features and user configurability of the popular LIDAR-Lite v3.The v3HP is very similar in function to that of the v3 but it can now sample faster at rates greater than 1kHz(where as the v3 is only capable of up to 500Hz). Another improvement is that this v3HP model is more power efficient with current consumption rates 40mA less than the v3(that's 65mA as opposed to 105mA while idle， and 85mA instead of 130mA while acquiring).Each LIDAR-Lite v3HP has a range of 1m to 40m and features an edge-emitting， 905nm(1.3 watts)， single-stripe laser transmitter， 8m Radian beam divergence， and an optical aperture of 12.5mm. This version of the LIDAR-Lite still operates at 5VDC(6V max)with a peak power of 1.3W and still possesses an accuracy of +/- 2.5cm at >2m. On top of everything else， the LIDAR-Lite is user-configurable， allowing adjustment between accuracy， operating range and measurement time and can be interfaced via I2C or PWM with the attached 200mm cable.Note：CLASS 1 LASER PRODUCT CLASSIFIED EN/IEC 60825-1 2014. This product is in conformity with performance standards for laser products under 21 CFR 1040， except with respect to those characteristics authorized by Variance Number FDA-2016-V-2943 effective September 27， 2016.Get Started with the LIDAR-Lite v3HP GuideFeaturesResolution：1 cmTypical accuracy：+/- 2.5cm at distances greater than 2 meters(Refer to operating manual for complete operating specifications)Range：1m to 40mUpdate rate：Greater than 1kHzInterface：I2C or PWMPower(operating voltage)：4.75-5VDC； 6V MaxCurrent consumption：65ma idle； 85ma during acquisitionOperating temperature：-20℃ to 60℃Laser wave length/Peak power：905nm/1.3WBeam divergence：8m RadianOptical aperture：12.5mmWater rating：IPX7Unit dimensions：24.5mm×53.5mm×33.5mm(1.0in×2.1in×1.3in)Weight：34g(1.2oz)

DescriptionThis is a super small， 2x5 pin male PTH header. This header is in the common configuration for JTAG applications. Each pin has a spacing of 1.27mm in between each other and can be cut down to smaller increments if the need arises.FeaturesPin style：squareNumber of pins：10(2x5)Pin spacing：1.27mm(0.05")

DescriptionNote - Please read before purchasing!：The SparkFun LTE GNSS Breakout - SARA-R5 uses the "00B" product version of the SARA-R5 module(specifically the SARA-R510M8S-00B-00). LTE NB-IoT Radio Access Technology， and the LTE FDD bands：66， 71， 85 are not supported by this version. Refer to the SARA-R5 datasheet for more information.The SparkFun SARA-R5 LTE GNSS Breakout is a robust development tool for u-blox's impressive SARA-R510M8S module. The SARA-R510M8S combines u-blox's UBX-R5 cellular chipset with their M8 GNSS receiver chipset to provide a 5G-Ready wireless IoT device complete with positioning data all on a single chip. As an asset tracker， the LTE GNSS Breakout offers Secure Cloud LTE-M communication for multi-regional use and has an integrated u-blox M8 GNSS receiver for accurate positioning information.The UBX-R5 chipset supports many different forms of data communication from full TCP/IP sockets and packet switched data， through HTTP Get/Put/Post， FTP(the SARA has a built-in file system)， Ping， to good old SMS text messaging! The built-in u-blox M8 GNSS receiver provides accurate and reliable positioning with a separate GNSS antenna interface for an external antenna. Both the GNSS antenna and LTE connections are made via a pair of SMA connectors.This breakout routes nearly all of the functional pins on the SARA-R510M8S module to user interfaces(USB or plated-through hole)so you can take full advantage of all of the features available on this impressive LTE/GNSS module. The SARA-R5's UART interface can be configured into one of five variants， providing connectivity over one or two UARTs. A separate USB port provides access to the SARA's trace log for diagnostic purposes. This breakout provides access to all three interfaces(UART1， UART2 and SARA Diag)via three separate USB-C connections. All eight 3.3V serial signals are available on a 0.1"-pitch breakout header. Separate 0.1"-pitch headers break out the SARA's I2C bus， power pins as well as GPIO pins for various functionalities.Get Started with the SARA-R5 LTE GNSS Breakout GuideFeaturesu-blox SARA-R510M8S module providing Secure Cloud LTE-M data communication for multi-regional usePlease check that your service provider offers LTE-M coverage for your area before purchasingIntegrated u-blox M8 GNSS receiver for accurate positioning informationNano SIM socketSeparate， robust SMA connections for LTE and GNSS antennasSwitchable 3.3V power for an active GNSS antennaUSB-C connectivityLED indicators for：Power(VIN and 3.3V)SARA-R5 onNetwork indicatorGNSS timing pulse(1PPS)3.3V plated through-hole(PTH)pins for：SARA onNetwork indicatorUART1GNSS timing pulse(1PPS)I2C bus

DescriptionThe SparkFun 3.3V FTDI Starter Kit gives you just what you need to get started with FTDI FT232RL USB to serial IC. The pinout of the included board matches the FTDI cable standard to work with official Arduino and cloned 3.3V Arduino boards. It can also be used for general serial applications. The major difference with this board is that it brings out the DTR pin as opposed to the RTS pin of the FTDI cable. The DTR pin allows an Arduino target to auto-reset when a new Sketch is downloaded. This is a really nice feature to have and allows a sketch to be downloaded without having to hit the reset button. This board will auto reset any Arduino board that has the reset pin brought out to a 6-pin connector.The SparkFun FTDI Basic Breakout was designed to decrease the cost of Arduino development and increase ease of use(the auto-reset feature rocks!). Our Arduino Pro and LilyPad boards use this type of connector.The included cable is a USB 2.0 type B to Mini-B 5-pin black cable.

Here is a very simple breadboard power supply kit that takes power from a DC wall wart and outputs a selectable 5V or 3.3V regulated voltage. The .1" headers are mounted on the bottom of the PCB for simple insertion into a breadboard. Pins labeled VCC and GND plug directly into the power lines. The lone pair of pins have no electrical connection but help support the PCB.There are two pins available within the barrel jack footprint. Any stripped +/- DC supply can be connected instead of the barrel connector. Board has both an On/Off switch and a voltage select switch(3.3V/5V).Comes as a bag of parts kit and is easily assembled if you can follow the silkscreen indicators and have beginning experience with a soldering iron. You will need to read the resistor bands or use a multimeter to determine the resistor sizes.Dimensions：1.25x1.25"Kit Includes：DC Barrel Connector(2.1mm center positive)TO-220 Voltage Regulator(LM317 1.5A max current)1N4004 Reverse Protection Diode100uF 25V Capacitor10uF 25V Capacitor0.1uF 50V CapacitorRed Power LED - High Brightness2×SPDT Slide Switch4×0.1" Header Pins2×330 Resistor 1/6W390 Resistor 1/6W240 Resistor 1/6WBare PCB with Silkscreen IndicatorsPTC resettable fuse

DescriptionThe new PureThermal Mini Pro JST-SR with Thermal by FLIR is a hackable thermal camera for the FLIR Lepton thermal imaging camera core. Just like its PureThermal 2 predecessor， it ships pre-configured to operate as a plug-and-play UVC 1.0 USB thermal webcam that will work with standard webcam and video apps on all major platforms using a JST-SR to USB Cable， or your own custom cable. For developers， its reference firmware and viewer software are open source.It has multiple connection options such as solder straight to the board or a custom cable using the JST-SR port. The PTMini Pro also features four mounting holes， less complex circuitry， and perhaps best of all， USB DFU. This is a development kit ready to be embedded into a production system.Each board comes with a FLIR Lepton 3.5.The FLIR Lepton(R)is a radiometric-capable LWIR camera solution that is smaller than a dime， fits inside a smartphone， and is one tenth the cost of traditional IR cameras. Using focal plane arrays of either 160x120 or 80x60 active pixels， Lepton easily integrates into native mobile-devices and other electronics as an IR sensor or thermal imager. The radiometric Lepton captures accurate， calibrated， and noncontact temperature data in every pixel of each image.FeaturesPureThermal：Compatible with all production FLIR Leptons， including radiometric 2.5 and 3.5 cores9 Hz color video over usb using the USB UVC classSTM32F412 ARM microprocessor - execute on-board image processing without need for an external systemOpen source reference firmware：GroupGets PureThermal GithubWorks with GetThermal - our custom open source thermal video display software for macOS and Linux with radiometric supportDFU over USB using a JST-SR port to USB cable， or a modified USB cable and the through holes.Four mounting holesCompact form-factor ready to be embedded into production systemsFLIR Lepton 3.5：Thermal sensitivity：< 50 mK(0.050℃)Spectral Range：8 - 14 microns(nominal)Long Wave Infrared(LWIR)Resolution：160h×120v pixelsRadiometric Accuracy - High Gain Mode：Greater of +/- 5℃ or 5%(typical)； Low Gain Mode：Greater of +/- 10℃ or 10%(typical)Scene Dynamic Range - High Gain Mode：-10° to +140℃； Low Gain Mode：-10° to +400℃(at room temperature)， -10° to +450℃(typical)Pixel Size：12 micrometersFrame Rate：8.7 Hz(effective)Output Format：User-selectable 14-bit， 8-bit(AGC applied)， or 24-bit RGB(AGC and colorization applied)Horizontal Field of View(HFOV)：57°Lens Type：f/1.1Size(w×l×h)：10.50×12.70×7.14 mmWeight：0.9 gramsPower Consumption：150 mW typical， 650 mW during shutter event， 5mW standbyOptimum Operating Temperature Range：-10℃ to + 80℃

DescriptionYou don't have to worry about adding a resistor to an LED if you get an LED with a built in resistor! This pack of 25 green 5mm LEDs will help alleviate any frustrations you've had with accidentally burning them out by having a resistor in the diode itself. Each LED has an operating voltage range of 3.0V to 5V to help make your next project shine!Each pack of these LEDs are conveniently bagged in reusable ESD safe packaging to make sure nothing accidentally gets damaged before you are able to use them.FeaturesOperating Voltage Range：3.0V-5.0VStandard Size - T1 3/4 5mmBrightness：15000-20000 MCDColor：520-525 NM

DescriptionYou'll have no need for a screwdriver with this terminal! This is a 3-pin Latch Terminal with 5mm pitch pins. Each pin is rated up to 250V @ 11A and will line up well with the standard 0.19" spacing. Please note that the pins are thick enough(1.20mm OD)that you may need to increase the hole diameter on some boards. Each of the terminals can accept 18-22AWG wire.FeaturesLatch Terminal5mm Pitch3-PinTin Plated Brass Terminals18-22AWG Wire RangeOperation Temperature：-55℃～+100℃

DescriptionThe LIDAR-Lite v4 LED sensor is the next step in the LIDAR-Lite line. A small， lightweight， low-power optical ranging sensor. It's the first to incorporate ANT profile wireless networking technology into an optical sensor. Its built-in nRF52840 processor means that developers can create custom applications， or be operated as a stand-alone device right out of the box by using the preloaded stock application.Like the LIDAR-Lite v3 and LIDAR-Lite v3HP sensors； it can also be directly connected to an external micro-controller running a custom user application. As such， it provides a highly adaptable option for OEM and maker applications in robotics， Internet of Things， and unmanned vehicles ― or any application where an ultrasonic sensor might otherwise be used. It's perfect as the basic building block for applications where wireless capabilities， small size， light weight， low power consumption and high performance are important factors in a short-range， 10-meter， optical distance measuring sensor.The LIDAR-Lite v4 requires an external 5VDC power source and soldering is required. This Time-of-Flight ranging module uses a LED and optics for ranging. It does not use a laser； therefore， it is inherently eye-safe under normal usage.FeaturesResolution：1 cmMeasurement repeatability：As measured indoors to a 90% reflective target1 cm is equivalent to 1 standard deviationUsing "high accuracy" mode， with averaging：+/- 1 cm to 2 meters+/- 2 cm to 4 meters+/- 5 cm to 10 metersRange：5 cm to 10 meters(as measured from back of unit)Update rate：I2C = >200 Hz typicalANT(R)= up to 200 Hz to a 90% target indoors at 2m in normal operating modeInterface：I2C or ANT； user configurable for SPI using the Nordic SDKPower(operating voltage)：4.75 - 5.25 VDCCurrent consumption：2mA idle， 85mA during acquisitionOperating temperature：-20 to 60° CLED wavelength：940 nmBeam divergence：4.77°Optical aperture：14.9 mmUnit size(HxWxD)：2.1"×0.8"×0.9"(52.2×21.2×24.0 mm)Weight：14.6 g(0.5 oz)

DescriptionYour 5V system can wield great power with this big， beefy relay board. How does 10A on the NC contacts and 20A on the NO contacts at 220VAC sound? The SparkFun Beefcake Relay Control Kit contains all the parts you need to get your high-power load under control. Only minimal assembly is required!The heart of the board is sealed， SPDT 20A/10A Relay. The relay is controlled by 5V logic through transistor， and an LED tells you when the relay is closed. This is kit， so it comes as through-hole parts with assembly required， which makes for some nice soldering practice. Screw terminal connectors on either side of the board make it easy to incorporate into your project.There are some pretty beefy traces connecting the relay to the load pins， but the 3-pin terminals are only rated for 15A max! If you plan on connecting larger load， you'll need to solder directly to the board. As always with high current and voltage， play it safe and use your judgment when deciding how much of load you want to put on board -- in open airflow the PCB can handle the full 20A for few minutes at time， but in an enclosed area heat can build up.Note：Please keep in mind that this board is really meant for someone with experience and good knowledge of electricity. If you're uncomfortable soldering or dealing with high voltage， please check out the IoT Power Relay. The IoT Power Relay is fully enclosed， making it lot safer.Get Started With the Beefcake Hookup Assembly GuideFeaturesVoltage Rating：220VAC/28VDCVCC requirements：4-6V， 150mA capableSPDT pins exposed(Form C)14 AWG screw terminals for relay connections.10 AWG solder lugs for relay connections.Flyback diode includedZener recovery diode included(decreases turn-off time)Heavy oz. copper on PCB

DescriptionIntroducing the SparkFun FT231X Breakout board， complete with the full UART hardware handshake feature! The pin-out of this board matches the FTDI cable to work with official Arduino and cloned Arduino boards. It can also be used for general serial applications.This board still brings out the DTR pin as opposed to the RTS pin of the FTDI cable. The DTR pin allows an Arduino target to auto-reset when a new Sketch is downloaded. This is a really nice feature to have and allows a sketch to be downloaded without having to hit the reset button. This board will auto-reset any Arduino board that has the reset pin brought out to a 6-pin connector.The coolest thing about the FT231X Breakout is that we have broken out ALL the pins for your use， making this board all the more hackable! It also uses a common microUSB jack.One of the features of this board is a jumper on the back， which allows the VCC output to be configured to either 3.3V or 5V. This board ships default to 5V， but you can cut the default trace and add a solder jumper if you need to switch to 3.3V. It should be noted that the max input of the FT231X is only 3.3V， but it can operate down to 1.8V with external pull-ups and is also 5V tolerant.

DescriptionKeypads are very handy input devices， but who wants to tie up seven GPIO pins， wire up handful of pull-up resistors， and write firmware that wastes valuable processing time scanning the keys for inputs? The SparkFun Qwiic Keypad comes fully assembled and makes the development process for adding 12 button keypad easy. No voltage translation or figuring out which I2C pin is SDA or SCL， just plug and go! Utilizing our handy Qwiic system， no soldering is required to connect it to the rest of your system. However， we still have broken out 0.1"-spaced pins in case you prefer to use breadboard.Each of the keypad's 12 buttons has been labeled 1， 2， 3， 4， 5， 6， 7， 8， 9， 0， *， and and has been formatted to into the same layout as telephone keypad with each keypress resistance ranging between 10 and 150 Ohms. The Qwiic Keypad reads and stores the last 15 button presses in First-In， First-Out(FIFO)stack， so you don't need to constantly poll the keypad from your microcontroller. This information， then， is accessible through the Qwiic interface. The SparkFun Qwiic Keypad even has software configurable I2C address so you can have multiple I2C devices on the same bus.NOTE：The I2C address of the Qwiic Keypad is 0x4B and is jumper selectable to 0x4A(software-configurable to any address). multiplexer/Mux is required to communicate to multiple Qwiic Keypad sensors on single bus. If you need to use more than one Qwiic Keypad sensor consider using the Qwiic Mux Breakout.The SparkFun Qwiic connect system is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.Get Started with the SparkFun Qwiic Keypad Hookup GuideFeaturesSoftware Selectable Slave AddressLow Power ATtiny85 controllerButton Presses w/ Time StampDefault I2C Address：0x4B2x Qwiic Connector

DescriptionThe Day of the Dead only comes around once year but what if you could celebrate it any day you want? With this white version of the Day of the Geek soldering kit you will be able to learn the basics of soldering by being able to assemble light-up skull badge! Each Day of the Geek kit takes about 5-10min to assemble with basic soldering materials(not included). Say no to sugar skulls and say yes to solder skulls instead!Every Day of the Geek Soldering Badge Kit includes one white skull PCB， CR2032 battery holder， pin back， and three pairs of colored LEDs so you have the option of Red， White or Blue eyes. All you need to supply(besides soldering iron and solder)is CR2032 coin cell battery since it isnotincluded to make shipping easier. Due to the different forward voltages and current draw， you shouldn't mix the LED colors. Only use red with red， white with white， and blue with blue.Happy Dia de los Muertos， everyone!Note：Since this product is kit， assembly and basic knowledge of soldering will be required. The Day of the Geek Badge does not come pre-assembled.

DescriptionNote - Please read before purchasing!：The MicroMod Asset Tracker uses the "00B" product version of the SARA-R5 module(specifically the SARA-R510M8S-00B-00). LTE NB-IoT Radio Access Technology， and the LTE FDD bands：66， 71， 85 are not suppor

DescriptionThese are your run-of-the-mill 1/4 Watt， +/- 5% tolerance PTH resistors. Commonly used in breadboards and other prototyping applications， these 1M ohm resistors make excellent pull-ups， pull-downs and current limiters. These thick-lead vers

DescriptionYou don't have to worry about adding a resistor to an LED if you get an LED with a built in resistor! This pack of 25 blue 5mm LEDs will help alleviate any frustrations you've had with accidentally burning them out by having a resistor in t

DescriptionIt's time to effectively manage the power distribution into your project and with the SparkFun Power Delivery Board， you can! Traditional power adapters can provide a wide range of current but the voltage stays fixed at 5V. With the Spark

DescriptionThis is a simple strip of five signal-conditioning Balun Ember Transformers from Wurth Elektronik that allows you to convert an unbalanced signal in a transmission line to a balanced one， or vice versa. Each of these ICs possesses a freque

DescriptionThese are your run-of-the-mill 1/4 Watt， +/- 5% tolerance PTH resistors. Commonly used in breadboards and other prototyping applications， these 100 ohm resistors make excellent pull-ups， pull-downs and current limiters. These thick-lead v

DescriptionThese are your run-of-the-mill 1/4 Watt， +/- 5% tolerance PTH resistors. Commonly used in breadboards and other prototyping applications， these 330 ohm resistors make excellent LED current limiters and are great for general use. These thi

DescriptionThese headers are made to work with the Teensy 4.1， Teensy 3.6， and Teensy 3.5 development boards. Each set of headers allows for your Teensy to be easily incorporated into a breadboard circuit or attach a shield on top of the board. This kit includes three headers(two 24-pin， and one 5-pin)， enough to connect your chosen Teensy in any configuration you need!

DescriptionPassive Infrared(PIR)sensors are great for detecting motion in a small area around the sensor. The 170μA SparkFun EKMC4607112K PIR Breakout is a simple board equipped with an EKM-series PIR sensor from Panasonic(R). The EKM-series PIR sensors are optimized for small movements to offer motion-sensing options for continuously powered applications.PIR sensors do not return specific distance data but instead monitor for IR light coming from objects in their field of view and will activate their signal when motion is detected in their sensing area， making them perfect for applications such as turning devices on automatically when motion is detected. Applications include home and building automation for energy saving， automated on/off lighting control， security， appliances， and IoT.Panasonic's low-profile PIR motion sensors(10.9mm versus standard 14.4mm height offer space savings for constrained designs)consist of a lens to create various detection zones， an optical filter to block non-infrared light， pyroelectric sensing elements， electromagnetic shielding to all circuitry， and an impedance converter to get an electrical signal. This PIR sensor offers digital output across 32 zones at 5m detection distance with 90°×90° detection area.Note：The sensitivity of passive infrared sensors is influenced by environmental conditions， so a performance evaluation test under representative conditions is recommended.Get Started with the SparkFun PIR Breakout GuideFeaturesOperating Voltage：2.3-4.0V170 μAstandby current consumptionLens diameter - 10.4mmLens Height - 10.9mm5m detection distance90°×90°(±45°)detection area

DescriptionThe SparkFun MicroMod Update Tool is built to interface with the MicroMod Asset Tracker Carrier Board and also makes it simple to communicate directly with the u-blox SARA-R510M8S module using u-blox's sophisticated m-center cellular evaluation software. If you're familiar with u-center， u-blox's GNSS evaluation software， you'll know how excellent their software is. m-center is every bit as good. Attach a USB-C cable and away you go!The Update Tool is not a full MicroMod Processor Board， it is much simpler than that. It has a CH340C USB-Serial converter on it which gives you full access to all eight pins of the SARA-R5's UART interface via the Asset Tracker's USB-C connector. Think of it as a bridge from USB to serial.The Update Tool features eight pairs of Plated Through Hole connections for the UART signals. You can use these to connect directly to the SARA UART using 3.3V signals if you want to. The split pads on the rear of the Tool can be opened to isolate the CH340C completely； the pins nearest the M.2 will link straight to the SARA UART.Get Started with the MicroMod Update Tool Hookup GuideFeaturesCH340C USB-Serial converterEight pairs of Plated Through Hole connections with split pad jumper links for：Serial Transmit(TX)Serial Receive(RX)Request To Send(RTS)Clear To Send(CTS)Data Terminal Ready(DTR)Data Set Ready(DSR)Ring Indicator(RI)Data Carrier Detect(DCD)LED indicator for：Power(3.3V)

DescriptionNeed to keep track of the airflow in your data center or around your servers? How about making sure your HVAC and air control systems are functioning at full capacity? Well， the new SparkFun FS3000-1005 Air Velocity Sensor Breakout can help you with all that and more! It's super easy and super quick(Qwiic!)to hook up.This breakout board is focused around Renesas' FS3000-1005， a surface-mount air velocity module with a range of 0-7.2m/s(0-16.2mph). It utilizes a MEMS thermopile-based sensor， features a digital output with 12-bit resolution and comprises a "solid" thermal isolation technology and silicon carbide coating to protect it from abrasive wear and water condensation.We've written an Arduino library to help you get started quickly. You can download the library through the Arduino library manager by searching 'SparkFun Air Velocity' or you can get the GitHub repo as a .zip file and install the library from there.The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.Get Started with the Qwiic Air Velocity Sensor BreakoutFeaturesI2C address：0x28Air flow speed：0 - 7.23 m/sec(0 - 16.17mph)Accuracy：5 % of full scale flow range12-bit resolutionInput Voltage：2.7-3.3VAverage current draw：10mA

DescriptionThese are your run-of-the-mill 1/4 Watt， +/- 5% tolerance PTH resistors. Commonly used in breadboards and other prototyping applications， these 1K ohm resistors make excellent pull-ups， pull-downs and current limiters. These thick-lead versions of the resistors fit snugly into a breadboard with very little movement， so you should have few to no issues using them in your next project!These resistors come in bags of 20.

DescriptionThese are your run-of-the-mill 1/4 Watt， +/- 5% tolerance PTH resistors. Commonly used in breadboards and other prototyping applications， these 10K ohm resistors make excellent pull-ups， pull-downs and current limiters. These thick-lead versions of the resistors fit snugly into a breadboard with very little movement， so you should have few to no issues using them in your next project!These resistors come in bags of 20. They are the same resistors found in the SparkFun Inventor's Kit v4.0， upgraded from the resistors in previous versions of the kit.

These are high quality Single Pole - Double Throw(SPDT)sealed relays. Use them to switch high voltage、and/or high current devices.This relay's coil is rated up to 12V、with a minimum switching voltage of 5V. The contacts are rated up to 5A(@250VAC、30VDC).NoteIn the Datasheet below there is a pin layout listed as "Bottom View." Be aware、this pin layout is actually the top-down view NOT bottom-up.

DescriptionAdd another eight pins to your microcontroller using a MCP23008 port expander. The MCP23008 uses two I2C pins which can be shared with other I2C devices， and in exchange gives you eight general purpose pins. You can set each of eight pins to be input， output， or input with a pullup. There's even the ability to get an interrupt via an external pin when any of the inputs change so you don't have to keep polling the chip.Use this chip from 2.7-5.5V(good for any 3.3V or 5V setup)， and you can sink/source up to 20mA from any of the I/O pins so this will work for LEDs and such. Team it up with a high-power MOSFET if you need more juice. DIP package means it will plug into any breadboard or perfboard.You can set the I2C address by tying the ADDR0-2 pins to power or ground， for up to eight unique addresses. That means eight chips can share a single I2C bus - that's 64 I/O pins!Features8-bit remote bidirectional I/O portHigh-speed I2C interface(MCP23008)Hardware address pinsConfigurable interrupt output pinConfigurable interrupt sourcePolarity Inversion register for input port data polarity config.External reset inputLow standby current：1 μA(max.)・ Operating voltage：1.8V to 5.5V @ -40℃ to +85℃ I2C @ 100 kHz SPI @ 5 MHz2.7V to 5.5V @ -40℃ to +85℃ I2C @ 400 kHz SPI @ 10 MHz4.5V to 5.5V @ -40℃ to +125℃ I2C @ 1.7 kHz SPI @ 10 MHz

DescriptionYou'll have no need for a screwdriver with this terminal! This is a 4-pin Latch Terminal with 5mm pitch pins. Each pin is rated up to 250V @ 11A and will line up well with the standard 0.19" spacing. Please note that the pins are thick enough(1.20mm OD)that you may need to increase the hole diameter on some boards. Each of the terminals can accept 18-22AWG wire.FeaturesLatch Terminal5mm Pitch4-PinTin Plated Brass Terminals18-22AWG Wire RangeOperation Temperature：-55℃～+100℃

DescriptionThe SparkFun TFT LCD Breakout is a versatile， colorful， and easy way to experiment with graphics or create a user interface for your project. With a 4-wire SPI interface and microSD card holder， you can use this breakout to easily add visual display/interface capabilities to a project as well as providing all the storage you might need for multimedia files.To get started with this breakout， you will need an Arduino compatible microcontroller of your choice - we recommend something with extra RAM like the SparkFun Thing Plus. The breakout can be powered with either 5V or 3.3V. The microSD card holder is connected to the same SPI bus as the display which keeps the required pin count low and exists to relieve the burden from your microcontroller's poor memory due to having to store hundreds of images of cats， or really whatever you want to keep there. We have also gone ahead and tricked out the SparkFun HyperDisplay library with a driver made especially for this breakout!Out of the box， the SparkFun TFT LCD Breakout will come with a large backing PCB that makes it easy to securely mount the display in a project. If you need a more flexible solution you can remove the display module， snap off half the backing board， and then re-insert the display module. When this is done you'll be left with the bare minimum frame around the display to more seamLessly integrate with your project.Get Started With the SparkFun TFT LCD Breakout GuideFeatures128×160 RGB pixelsUp to 18 bit configurable color depth2x PWM controllabele LED backlightmicroSD Card SlotV-Score for Minimal Footprint Setup

DescriptionThe SparkFun MicroMod Environmental Function Board adds additional sensing options to the MicroMod Processor Boards. This Function Board includes three sensors to monitor air quality(SGP40)， humidity temperature(SHTC3)， and CO2 concentrations(STC31)in your indoor environment. To make it even easier to use， all communication is over the MicroMod's I2C bus!The SGP40 measures the quality of the air in your room or house. The SGP40 uses a metal oxide(MOx)sensor with a temperature controlled micro hotplate and provides a humidity-compensated volatile organic compound(VOC)based indoor air quality signal. Both the sensing element and VOC Algorithm feature an unmatched robustness against contaminating gases present in real world applications enabling a unique long term stability as well as low drift and device to device variation.The SHTC3 is a highly accurate digital humidity and temperature sensor. The SHTC3 uses a capacitive humidity sensor with a relative humidity measurement range of 0 to 100% RH and bandgap temperature sensor with a temperature measurement range of -40℃ to 125℃. The SHTC3 builds on the success of their SHTC1 sensor with higher accuracy(±2% RH， ±0.2℃)than its predecessor， enabling greater flexibility.The STC31 measures CO2 concentrations based on thermal conductivity and has two CO2 measurement ranges：0 to 25 vol%； and 0 to 100 vol%. The measurement repeatability is 0.2 vol%， with a stability of 0.025 vol% / ℃. The measurement accuracy depends on the measurement range：0.5 vol% + 3% measured value； 1 vol% + 3% measured value. Using measurements from the SHTC3， the STC31 is able to provide humidity-compensated measurements together with improved temperature compensation. The STC31 can compensate for atmospheric pressure too - which is handy if， like us， you're up in the mountains!The outstanding performance of these three sensors is based on Sensirion's patented CMOSens(R)technology， which combines the sensor element， signal processing， and digital calibration on a small CMOS chip. The well-proven CMOS technology is perfectly suited for high-quality mass production and is the ideal choice for demanding and cost-sensitive OEM applications.Utilizing our handy M.2 MicroMod connector， no soldering is required to connect it to your system. Simply match up the key on your processor and function board's beveled edge connector to their respective key on the M.2 connector， then secure them to the main board with screws. The MicroMod Environmental Function Board can then be read via the I2C port. The board is equipped with the AP2112 3.3V voltage regulator， I2C pull-up resistors， power LED， jumper to disable the LED， and jumpers for alternative STC31 addresses.Note：A MicroMod Processor and Main Board are not included with this MicroMod Environmental Function Board. These boards will need to be purchased separately.MicroMod is a modular interface ecosystem that connects a microcontroller "processor board" to various "carrier board" peripherals. Utilizing the M.2 standard， the MicroMod standard is designed to easily swap out processors and function boards on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!Get Started with the MicroMod Environmental Function BoardFeaturesInput voltage range2.5V to 6.0VTyp.5Vvia Main Board's USB connectorTyp.～3.7V to 4.2Vvia Main Board's LiPo battery ConnectorI/O voltage3.3VAP2112 3.3V voltage regulator(rated 600mA)Power LEDI2C pull-up resistorsSensirion SGP40 Air Quality SensorUses I2C interfaceAddress：0x59(default)Operating voltage range1.7V to 3.6V(Typ.3.3V)Operating temperature range-20℃ to +55℃Typical current consumption2.6mAduring continuous operation(at 3.3V)34μAwhen idle(heater off)Output signalDigital raw value(SRAW)：0 - 65535 ticksDigital processed value(VOC Index)：0 - 500 VOC index pointsSwitch-on behaviorTime until reliably detecting VOC events：<60sTime until specifications are met：<1hRecommended sampling intervalVOC Index：1sSRAW：0.5s - 10s(Typ. 1s)Sensirion SHTC3 Humidity and Temperature SensorUses I2C interfaceAddress：0x70(default， non-configurable)Operating voltage range1.62V - 3.6V(Typ.3.3V)Operating temperature range-40℃ to +125 ℃Relative HumidityMeasurement range：0% to 100%Typical accuracy：±2 %RHResolution：0.01 %RHTemperatureMeasurement range：-40℃ to +125 ℃Typical accuracy：±0.2 ℃Resolution：0.01 ℃Typical current consumption(varies based on mode)4.9μA to 430μA(Normal Mode)0.5μA to 270μA(Low Power Mode)Allows the STC31 to compensate for humidity and temperatureSensirion STC31 CO2 SensorUses I2C interfaceAddresses：0x29(default)， 0x2A， 0x2B， 0x2COperating voltage range2.7V to 5.5V(Typ.3.3V)Operating temperature range-20 ℃ to +85 ℃Calibrated for CO2 in N2 and CO2 in airMeasurement ranges0 to 25 vol% in N20 to 100 vol% in airAccuracy0.5 vol% + 3% measured value in N21 vol% + 3% measured value in airConcentration and temperature resolution：16-bitRepeatability：0.2 vol%Temperature stability：0.025 vol% / ℃Start-up time：14 msThermal conductivity sensor provides calibrated gas concentration and temperature outputJumpersPWR LEDI2C pull-up resistorsSTC31 address selectionNote：The I2C addresses that are reserved for each sensor is 0x59(SGP40)， 0x70(SHTC3)， 0x29(STC31). A multiplexer/Mux is required to communicate to multiple SHTC3 sensors on a single bus. The SHTC3 uses the same address as the Qwiic Mux(0x70). For advanced users that are using multiple SHTC3's with the Qwiic Mux， you will need to adjust the Qwiic Mux's default address.

DescriptionThe FLIR Lepton(R)2.5 - Thermal Imaging Module is a radiometric-capable long wave infrared(LWIR)camera solution that is smaller than a dime， fits inside a smartphone， and is less expensive than traditional IR cameras. With a focal plane array of 80x60 active pixels， this Lepton easily integrates into native mobile-devices and other electronics as an IR sensor or thermal image sensor. The radiometric Lepton captures accurate， calibrated， and non-contact temperature data in every pixel.For large quantities：We currently have a limit of one per customer order on the FLIR Lepton 2.5 module due to supply chain issues as a result of COVID-19. If you need to place a distributor order please contact your sales rep and they will assist you. For bulk order for this module please visit our Volume Pricing Page for inquiries of stock. At this time， we cannot guarantee orders for this module but we will do what we can to work with you in fulfilling your request.FeaturesEffective Frame Rate：8.6 Hz(commercial application exportable)Input Clock：25-MHz nominal， CMOS IO Voltage LevelsOutput Format：User-selectable 14-bit， 8-bit(AGC applied)， or 24-bit RGB(AGC and colorization applied)Pixel Size：17 μmRadiometric Accuracy：High gain：Greater of +/- 5℃ or 5%(typical)Low gain：Greater of +/- 10℃ or 10%(typical)Scene Dynamic Range：-10-140 ℃(high gain)； up to 450℃(low gain)typicalSpectral Range：Longwave infrared， 8 μm to 14 μmTemperature Compensation：Automatic. Output image independent of camera temperature.Thermal Sensitivity：<50 mK(0.050° C)Video Data Interface：Video over SPIControl Port：CCI(I2C-like)， CMOS IO Voltage LevelsPackage Dimensions - Socket Version(w×l×h)：11.8×12.7×7.2 mmMechanical Interface：32-pin socket interface to standard Molex(R)socketNon-Operating Temperature Range：-40 ℃ to +80 ℃Optimum Temperature Range：-10℃ to +80℃Shock：1500 G @ 0.4 msArray format：80×60， progressive scanFOV - Diagonal：63.5°FOV - Horizontal：50°(nominal)Image Optimization：Factory configured and fully automatedNon-Uniformity Correction(NUC)：Automatic with shutterSensor Technology：Uncooled VOx microbolometerSolar protection：IntegralInput Supply Voltage：2.8 V， 1.2 V， 2.5 V to 3.1 V IOPower Dissipation：150 mW(operating)， 650 mW(during shutter event)， 4 mW(standby)

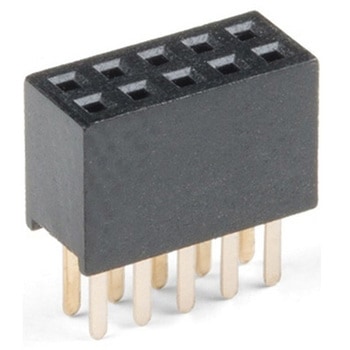

DescriptionThis is a super small， 2x5 pin female PTH header. This header is in the common configuration for JTAG applications. Each pin has a spacing of 1.27mm in between each other.

DescriptionFor the times when all you need is a basic SD card this is the card for you. 1GB capacity is plenty to store MP3s or log environmental data， and still dwarfs older memory systems like magnetic core memory.This card is not the Ferrari of SD technology， but that's what makes it perfect to use in permanent projects that require non-volatile storage. It is a Class 4 SDHC card with rated transfer speeds up to 4 MB/s. A simple test on our PC showed the available space as 942 MB and a write speed of ～5 MB/s.No adapter is included because you probably have them coming out of your ears at this point.FeaturesSDHC format1GB capacityClass 4(4MB/s)
