パズル×アプリで学ぶ!うごく日本地図で楽しく地理をマスター!Artec MiraTOYシリーズの、アプリと連動して日本の都道府県を学べる地図パズルです。透明ピースをはめながら形を覚え、スマホをかざすと各地の情報が動いて飛び出すAR体験が可能。るるぶDATA協力の写真と豊富なコンテンツで、見て・触れて・学べる新感覚教材です。遊びながら地理や文化への理解を深められる知育アイテムです。保護者の方向けにお子様へどんな時にどんなヒントを出すべきかなどのお声がけのコツを紹介した、声かけのコツBOOK付き。【対象年齢】5歳以上【Artec MiraTOYシリーズとは?】子どもたちが大好きなあそびの中に学びの要素を散りばめた知育玩具シリーズです。難しい問題でもあきらめずに取り組んだ先の「できた!」は、子どもたちの自信や次の挑戦への意欲につながり、子どもたちが楽しくあそびながら「自ら考える力」を養います。

予測不能のレースを体感!分岐ギミックでさらに進化したコロクロスDXセット!Artec MiraTOYシリーズの予測不能の展開が楽しめる新感覚レース「コロクロス DXセット」です。分岐パーツが加わってコース展開がさらに広がるセットです。9種類のパーツを組み合わせて、自分だけの予測不能なレースコースを作成可能。加速、ジャンプ、ショートカット、コースアウトなど組み合わせは無限大で、試行錯誤しながら思考力や創造力など6種の非認知能力を育みます。ギフトにもおすすめのSTマーク取得玩具です。保護者の方向けにお子様へどんな時にどんなヒントを出すべきかなどのお声がけのコツを紹介した、声かけのコツBOOK付き。【対象年齢】3歳以上【Artec MiraTOYシリーズとは?】子どもたちが大好きなあそびの中に学びの要素を散りばめた知育玩具シリーズです。難しい問題でもあきらめずに取り組んだ先の「できた!」は、子どもたちの自信や次の挑戦への意欲につながり、子どもたちが楽しくあそびながら「自ら考える力」を養います。

予測不能のレース展開!ゴールまで何が起こるかわからない!スリル満点の新感覚レースTOYコロクロス!Artec MiraTOYシリーズの予測不能の展開が楽しめる新感覚レース「コロクロス スタンダードセット」です。8種類のパーツを自由に組み合わせて、自分だけのオリジナルコースを作成可能。加速、ジャンプ、ショートカット、コースアウトなど組み合わせは無限大で、試行錯誤しながら思考力や創造力など6種の非認知能力を育みます。ギフトにもおすすめのSTマーク取得玩具です。保護者の方向けにお子様へどんな時にどんなヒントを出すべきかなどのお声がけのコツを紹介した、声かけのコツBOOK付き。【対象年齢】3歳以上【Artec MiraTOYシリーズとは?】子どもたちが大好きなあそびの中に学びの要素を散りばめた知育玩具シリーズです。難しい問題でもあきらめずに取り組んだ先の「できた!」は、子どもたちの自信や次の挑戦への意欲につながり、子どもたちが楽しくあそびながら「自ら考える力」を養います。

墨付きがよく書きやすい清書用半紙。

DescriptionAccess all the pins(i.e. ATP)of the MicroMod Processor Boards with the SparkFun MicroMod ATP Carrier Board! This board breaks out the MicroMod Processor Board's pins on the M.2 connector to 0.1" spaced female headers and PTH pads on the edge of the board. This Carrier Board is great if you're interested in testing out different MicroMod Processor Boards for your application.A modern USB-C connector makes programming easy. In addition to the pins broken out， two separate Qwiic-enabled I2C ports allow you to easily daisy chain Qwiic-enabled devices. We've exposed the SWD pins for more advanced users who prefer to use the power and speed of professional tools. A USB-A connector is provided for Processor Boards that have USB Host support. A backup battery is provided for processor boards with RTC. If you need a "lot" of GPIO with a simple-to-program， ready for market module， the ATP is the fix you need. We've even added a convenient jumper to measure the current consumption for low power testing.MicroMod is a modular interface ecosystem that connects a microcontroller "processor board" to various "carrier board" peripherals. Utilizing the M.2 standard， the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!Get Started with the MicroMod ATP Carrier Board GuideFeaturesM.2 ConnectorOperating Voltage Range～3.3V to 6.0V(via VIN to AP7361C 3.3V Voltage Regulator)3.3V(via 3V3)Ports [1]1x USB type C1x USB type A Host2x Qwiic Enabled I2C1x CAN1x I2S2x SPI2x UARTs2x Dedicated Analog Pins2x Dedicated PWM Pins2x Dedicated Digital Pins12x General Purpose Input Output Pins1x SWD 2x5 header1mAh battery backup for RTCButtonsResetBootLEDsPower3.3VPhillips #0 M2.5x3mm screw included[1] Note：Depending on the design of the Processor Board， not all the pins may be accessible.

DescriptionLeveraging the ultra powerful Artemis Module， the SparkFun MicroMod Artemis Processor is the brain board of your dreams. With a Cortex-M4F with BLE 5.0 running up to 96MHz and with as low power as 6uA per MHz(less than 5mW)， the M.2 MicroMod connector allows you to plug in a MicroMod Carrier Board with any number of peripherals. Let's have a look at what this processor board has to offer! If you need Machine Learning capabilities， Bluetooth， I2C functionality to connect to all our amazing Qwiic boards， and more the Artemis Processor is the perfect choice for your MicroMod Carrier Board.At the heart of SparkFun's Artemis Module is Ambiq Micro's Apollo3 processor， whose ultra-efficient ARM Cortex-M4F processor is spec'd to run TensorFlow Lite using only 6uA/MHz. We've routed two I2C buses， eight GPIO， dedicated digital， analog， and PWM pins， multiple SPI as well as QuadSPI， and Bluetooth to boot. You really can't go wrong with this processor. Grab one today， pick up a compatible carrier board， and get hacking!MicroMod is a modular interface ecosystem that connects a microcontroller "processor board" to various "carrier board" peripherals. Utilizing the M.2 standard， the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!Get Started with the MicroMod Artemis Processor GuideFeaturesArtemis General Features1M Flash / 384k RAM48MHz / 96MHz turbo available6uA/MHz(operates less than 5mW at full operation)48 GPIO - all interrupt capable31 PWM channelsBuilt in BLE radio and antenna10 ADC channels with 14-bit precision with up to 2.67 million samples per second effective continuous， multi-slot sampling rate2 channel differential ADC2 UARTs6 I2C buses6 SPI buses2/4/8-bit SPI busPDM interfaceI2S InterfaceSecure 'Smart Card' interfaceFCC/IC/CE Certified(ID Number 2ASW8-ART3MIS)Specific Peripherals made available on MicroMod Artemis：1x USB dedicated for programming and debug1x UART with flow control2x I2C1x SPI1x Quad-SPI8x Fast GPIO2x Digital Pins2x Analog Pins2x PWM1x Differential ADC pairStatus LEDVIN Level ADCAdditional peripherals are available but are shared on dedicated MicroMod pins.

DescriptionThe SparkFun NEO-M9N GPS Breakout is a high quality GPS board with equally impressive configuration options including SMA. The NEO-M9N module is a 92-channel u-blox M9 engine GNSS receiver， meaning it can receive signals from the GPS， GLONASS， Galileo， and BeiDou constellations with ～1.5 meter accuracy. This breakout supports concurrent reception of four GNSS. This maximizes position accuracy in challenging conditions increasing， precision and decreases lock time； and thanks to the onboard rechargeable battery， you'll have backup power enabling the GPS to get a hot lock within seconds! Additionally， this u-blox receiver supports I2C(u-blox calls this Display Data Channel)which makes it perfect for the Qwiic compatibility so we don't have to use up our precious UART ports. Utilizing our handy Qwiic system， no soldering is required to connect it to the rest of your system. However， we still have broken out 0.1"-spaced pins in case you prefer to use a breadboard.The NEO-M9N module detects jamming and spoofing events and can report them to the host， so that the system can react to such events. A SAW(Surface Acoustic Wave)filter combined with an LNA(Low Noise Amplifier)in the RF path is integrated into the NEO-M9N module which allows normal operation even under strong RF interferences.U-blox based GPS products are configurable using the popular， but dense， windows program called u-center. Plenty of different functions can be configured on the NEO-M9N：baud rates， update rates， geofencing， spoofing detection， external interrupts， SBAS/D-GPS， etc. All of this can be done within the SparkFun Arduino Library!The SparkFun NEO-M9N GPS Breakout is also equipped with an on-board rechargeable battery that provides power to the RTC on the NEO-M9N. This reduces the time-to-first fix from a cold start(～24s)to a hot start(～2s). The battery will maintain RTC and GNSS orbit data without being connected to power for plenty of time.This product requires an antenna：Be sure to check out the related products/hookup accessories and pick a suitable SMA antenna for your project.The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.The NEO-M9N GPS Breakout can also be automatically detected， scanned， configured， and logged using the OpenLog Artemis datalogger system. No programming， soldering， or setup required!Get Started With the SparkFun NEO-M9N GPS GuideFeaturesIntegrated SMA connector for use with antenna of your choice92-Channel GNSS Receiver1.5m Horizontal Accuracy25Hz Max Update Rate(four concurrent GNSS)Time-To-First-Fix：Cold：24sHot：2sMax Altitude：80，000mMax G：≦4Max Velocity：500m/sVelocity Accuracy：0.05m/sHeading Accuracy：0.3 degreesTime Pulse Accuracy：30ns3.3V VCC and I/OCurrent Consumption：～31mA Tracking GPS+GLONASSSoftware ConfigurableGeofencingOdometerSpoofing DetectionExternal InterruptPin ControlLow Power ModeMany others!Supports NMEA， UBX， and RTCM protocols over UART or I2C interfaces

DescriptionPlease note， these machines are built to order have an estimated lead time of 4 business days before shippingThis is the Shapeoko 4 XL， nearly double the cutting area of the Shapeoko 4 Standard! The Shapeoko is a 3-axis CNC Machine kit that allows you to create your 2D and 3D designs out of non-ferrous metals， hardwoods， and plastics. The Shapeoko 4 XL is designed to be affordable enough for any shop and powerful enough to do real work. Don't let the size intimidate you! This is an entry-level CNC machine designed for hobbyists， artists， and fabricators!Each Shapeoko 4 XL has a cutting area of 838.2mm(X)x 444.5 mm(Y)x 101.6mm(Z)(33"×17.5"×4")and an overall footprint of 1270mm(X)x 609.6mm(Y)x 482.6mm(Z)(50"×24"×19"). The power cable included in this kit is designed for the United States National Plug Standard. Don't forget you can put whatever you want on the adapter ring(as long as it fits)， whether that's a laser， 3D print extrusion head， or a marker. Get creative!Upgrades from the Shapeoko 3 include：New， more rigid v-wheel design15mm beltsInductive homing switchesNew electronicsIntegrated t-slot Hybrid Table(OPTIONAL)Fully-supported Y extrusionsLeadscrew-driven Z-axisNew， more rigid 65mm router mountSweepy 65mm V2 dust bootNote：This item is non-returnable. If this item arrives damaged or is not functioning properly， please do not hesitate to contact us to see if further actions may be taken.Not Compatible with the Shapeoko 4：Expansion PacksT-Track Clamp KitsZ-PlusProximity Switch KitMaintenance KitShapeoko 3 Bit SetterHDZ 4.0FeaturesFootprint：1270mm×609.6mm×482.6mm(50"×24"×19")Cutting Area：838.2mm×444.5mm×101.6mm(33"×17.5"×4")Weight 137lbs.Operating System：Mac(OSX 10.14 or higher)or PC(Windows 8.1 or 10， Intel or AMD)

DescriptionPoke Home Connectors have been featured on a number of our boards over the last few years by providing a simple screw-terminal-type connector for easy wire connection purposes. Similar to screw terminals， Poke Home Connectors grasp a wire entered into the receiving area of the pin-out by pressing down on the small plastic strip at the end of the housing. Doing so raises the internal clamp and， upon release of the button secures the wire in place without any soldering required.Poke Home Connectors work better in environments with a lot of vibrations(i.e. automotive applications)or when a wire is expanding or contracting due to temperature cycling. Additionally， the tension in the connector is automatically adjusted to the wire gauge(assuming it is within the accepted wire thickness)as opposed to variances in tension when a user tightens the screw terminal.

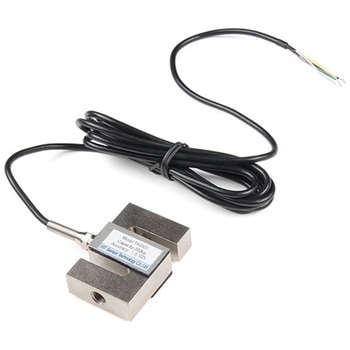

DescriptionThis S-Type load cell(sometimes called a strain gauge)can translate up to 200kg of pressure(force)into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response and proportion to the strain(e.g.， pressure or force)applied to the form. With this gauge you will be able to tell just how heavy an object is， if an object's weight changes over time， or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.Each straight bar load cell is made from an alloy steel and is capable of reading a capacity up to 200kg. These load cells have four strain gauges that are hooked up in a Wheatstone bridge formation. The color code on the wiring is as follows：red = E+， green = O+， black = E-， and white = O-. Additionally， these load cells offer an IP66 protection rating and feature two M4 and two M5 sized through-holes for mounting purposes.Get Started with the Load Cell GuideFeatures51mm×19mm×76mm， 3m Wire

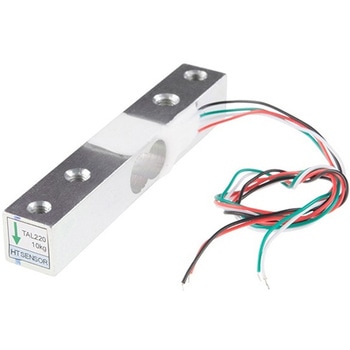

DescriptionThis straight bar load cell(sometimes called a strain gauge)can translate up to 10kg of pressure(force)into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to， and proportional of， the strain(e.g. pressure or force)applied to the bar. With this gauge you will be able to tell just how heavy an object is， if an object's weight changes over time， or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.Each straight bar load cell is made from an aluminum-alloy and is capable of reading a capacity of 10kg. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation. The color code on the wiring is as follows：red = E+， green = O+， black = E-， and white = O-. Additionally， these load cells offer an IP66 protection rating and feature two M4 and two M5 sized through-holes for mounting purposes.Get Started with the Load Cell GuideFeatures80mm×12.7mm×12.7mm， 250mm Wire

DescriptionThis is a 10-pack of wires that are pre-terminated with an alligator clip on one end and a hookup pigtail on the other. Alligator clips are a staple item for any workbench or makerspace， and with these cables you will be able to easily incorporate those clips into a breadboard， development platform or anything else to which you would normally be able to attach a hookup wire.Each alligator clip with pigtail cable has a wire length of 30cm(that's a little less than 1ft)and a male pin that easily inserts into a standard 0.1" connector. Each pack consists of five red cables and five white cables.

DescriptionThis is a USB to TTL Serial Cable which allows for a simple way to connect TTL interface devices to USB. The I/O pins of this cable are configured to operate at 3.3V specifically with a Raspberry Pi with each serial pin broken apart. Thanks to its separated pins， this cable is a perfect candidate for powering， connecting， and accessing the login and debug console on an older-version Raspberry Pi.The FTDI cable is designed around an FT232， which is housed in a USB-A connector. The other side of the cable is terminated with a separated 4-pin connector with the following pinout：RX(Yellow)， TX(Orange)， VCC(5V)(Red)， and GND(Black). A link to the FTDI drivers can be found in theDocumentssection above.Note：Please be aware that while the I/O pins in this cableoperate at 3.3V， the VCC pin is 5V. The VCC pin is NOT 3.3V like theI/O pins.

DescriptionThe SparkFun RTK Surveyor is an easy to use GNSS receiver for centimeter-level positioning. Perfect for surveying， this preprogrammed device can also be used for autonomous driving， navigation， asset tracking and any other application where there is a clear view of the sky. The RTK Surveyor can also be used as a base station. With the flick of a switch， two RTK Surveyors can be used to create an RTK system capable of 14mm horizontal positional accuracy. The built-in Bluetooth(R)connection via an ESP32 WROOM enables the user to use the RTK Surveyor with their choice of GIS application on a phone or tablet. The built in battery allows field use for up to four hours and is compatible with common USB battery banks.This device can be used in four modes：GNSS Positioning(～30cm accuracy)GNSS Positioning with RTK(1.4cm accuracy)GNSS Base StationGNSS Base Station NTRIP ServerIn Position mode the device receives L1/L2 signals from a user-provided antenna and the high-grade GNSS receiver provides lat/long and altitude with accuracies around 300mm.In Positioning with RTK mode the device receives L1/L2 signals from the antenna and correction data from a base station. The correction data can be obtained from a cellular link to online correction sources or over a radio link to a 2nd RTK Surveyor setup as a base station.In Base Station mode the device is mounted to a temporary position(like a tripod)and begins transmitting correction data over a radio or internet connection. A base is often used in conjunction with a second unit set to 'Positioning with RTK' to obtain the 14mm relative accuracy.In Base Station NTRIP Server mode the device is mounted to a semi or permanently fixed position(like a roof)and connects over WiFi to transmit the correction data to a NTRIP caster so that any rover can access the correction data over a cellular or internet connection. This type of base is a very easy way to setup a very precise absolute correction source.Two cables are provided with the RTK Surveyor allowing a user to plug on our easy to use Serial Telemetry Radios or their own radio link. If a local correction source is within 10km， a user can also use their phone to provide correction data over the Bluetooth(R)link(no external radio needed!).Note：The SparkFun RTK Surveyor is just the enclosed device and does NOT include an antenna， serial telemetry radio， or associated mounting pieces. These items will need to be purchased separately from the Hookup Accessories below.Get Started With the SparkFun RTK Surveyor GuideFeaturesGNSS Receiver：ZED-F9PConcurrent reception of GPS， GLONASS， Galileo and BeiDouReceives both L1C/A and L2C bandsCurrent：68mA - 130mA(varies with constellations and tracking state)Time to First Fix：25s(cold)， 2s(hot)Max Navigation Rate：PVT(basic location over UBX binary protocol)- 25HzRTK - 20HzRaw - 25HzHorizontal Position Accuracy：2.5m without RTK0.010m with RTKMax Altitude：50km(31 miles)Max Velocity：500m/s(1118mph)Bluetooth(R)Transceiver：ESP32 WROOMXtensa(R)dual-core 32-bit LX6 microprocessorUp to 240MHz clock frequency16MB of flash storage520kB internal SRAMIntegrated 802.11 BGN WiFi transceiverIntegrated dual-mode Bluetooth(R)(classic and BLE)Hardware accelerated encryption(AES， SHA2， ECC， RSA-4096)2.5 μA deep sleep currentOverall DeviceInternal Battery：LiPo 1000mAh with 500mA chargingRadio Port：3.3V TTL Serial(57600bps RTCM TX/RX)Data Port：3.3V TTL Serial(115200bps NMEA)Weight：132g(entire device including battery)Dimensions：118mm×79mm×30mm(4.7in×3.1in×1.2in)1x Qwiic Connector1x microSD Socket for optional loggingChanges：This version(which replaces SPX-17369)uses a reinforced edge mount SMA connector for better resiliency when a fixed 'stub' antenna is used.

DescriptionThe SparkFun Qwiic micro：bit Breakout is a board that connects to the BBC micro：bit and expands the capabilities of the development platform by providing access to more pins and allowing for connections to the I2C and SPI buses. This breakout board for the micro：bit's edge connector allows intermediate and advanced users to connect the micro：bit to breadboards and other Qwiic sensors， motors， LEDs and more.The micro：bit on its own has three digital/analog input/output rings available for you to use initially with alligator clips. With the micro：bit Breakout we have broken out all 21 GPIO， power and ground-to-pin outs in a 0.1" formation and with two individual Qwiic Connectors. With this breakout you will be able to unlock the full potential of your micro：bit!Note：No micro：bit or headers are included with this breakout； they will need to be purchased separately. If you would like a micro：bit breakout with headers already soldered on， be sure to check out this board's sibling.The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.Get Started with the Qwiic micro：bit Breakout Guide

DescriptionThis 7" Raspberry Pi Touchscreen LCD provides you with the ability to create a standalone device that can be utilized as a custom tablet or an all-in-one interactive interface for a future project using your Raspberry Pi 3. Each LCD features a full color 800×480 capacitive touch display that connects to the Pi via an included adapter board which handles all of your power and signal conversion needs. An updated version of Raspbian OS on the A+， B+ and Pi2B is required for the display to work(the display does not work with the current version of Raspbian available on the Model A or B).What makes this LCD great is the fact that it only requires two connections to be hooked up to the Pi； power from the Pi's GPIO port and a ribbon cable that connects to the DSI port present on all Raspberry Pi's. Touchscreen drivers with support for 10-finger touch and an on-screen keyboard allow you to use your Raspberry Pi without an external keyboard or mouse.With this Raspberry Pi LCD you can create your own 'Internet of Things'(IoT)devices including a visual display by simply connecting your Pi， developing a easy Python script to interact with the display， and you'll be ready to create your own home automation devices with touch screen capability.Note：The latest version of Raspbian OS is required for this Raspberry Pi LCD to operate correctly.Features7" Touchscreen Display.Screen Dimensions：194mm×110mm×20mm(including standoffs)Viewable screen size：155mm×86mm70 degree viewing angleScreen Resolution 800×480 pixels @ 60fps24-bit color10 finger capacitive touch.Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port.Adapter board is used to power the display and convert the parallel signals from the display to the serial(DSI)port on the Raspberry Pi.

DescriptionThis miniature straight bar load cell(sometimes called a strain gauge)can translate up to 100g of pressure(force)into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to， and proportional of， the strain(e.g. pressure or force)applied to the bar. With this gauge you will be able to tell just how heavy an object is， if an object's weight changes over time， or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.Each straight bar load cell is made from an aluminum-alloy and is capable of reading a capacity of 100g. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation. The color code on the wiring is as follows：red = Exc+， green = Sig+， black = Exc-， and white = Sig-. Additionally， these load cells offer an IP65 protection rating and features four M3 sized through-holes for mounting purposes.Get Started with the Load Cell GuideFeaturesCapacity：100gMaterial：Aluminum-AlloyParallel Beam TypeIP65 Rating47mm×12mm×6mm， 110mm Wire

DescriptionThe Lock Stop is a low profile， high-quality stainless steel stop that can be used on the Nomad or the Shapeoko in conjunction with the Tiger Claw(Standard or Compact)， or Gator Tooth Clamps.These hard stops help secure your job with a tight grip and serrated face， no matter what you're making.

DescriptionThe full-color LilyPad Sewable Electronics Kit Guidebook contains step-by-step instructions for creating four interactive projects from the materials contained in the kit. Examples and circuits are provided and explained. The manual also includes a glossary and troubleshooting tips. Once you make your way through all of the projects， you will have a much better grasp on e-textiles!Note：This is just the manual for the LilyPad Sewable Electronics Kit. The kit itself or the individual parts used in this book will need to be purchased separately.ExamplesProject 1：Glowing PinProject 2：Illuminated MaskProject 3：Light-Up PlushProject 4：Night-Light Pennant

DescriptionThis is an inexpensive 3-foot-long HDMI to Micro HDMI cable that you can use to hook up your Raspberry Pi 4 to a suitable monitor or TV. Heck， you can hook up anything you want with it! Micro HDMI is less common of a medium right now even m

DescriptionThe SparkFun Qwiic Motor Driver takes all the great features of the Serial Controlled Motor Driver(SCMD)and miniaturizes them， adding Qwiic ports for plug and play functionality. Boasting the same 4245 PSOC and 2-channel motor ports as the SCMD， the SparkFun Qwiic Motor Driver is designed to communicate over I2C to make setting up your next robotic project as fast and easy as possible! Utilizing our handy Qwiic system and screw terminals for motor and power hook-up， no soldering is required to connect it to the rest of your system.With 1.2A steady state drive per channel(1.5A peak)and 127 levels of DC drive strength， this little Qwiic board is perfect for your small DC motor driver needs. Since the Qwiic Motor Driver is a 3.3V logic device， you'll need to use a logic level converter to interface to 5V.The I2C address of the Qwiic Motor Driver is 0x5D and is jumper selectable to 0x58， 0x59， 0x5A， 0x5B， ... 0x63.The SparkFun Qwiic Connect System is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.Need a custom board? This component can be found in SparkFun's A La Carte board builder. You can have a custom design fabricated with this component - and your choice of hundreds of other sensors， actuators and wireless devices - delivered to you in just a few weeks.Get Started With the Qwiic Motor Driver Hookup GuideFeatures1.5 A peak drive per channel， 1.2 A steady stateOperates from 3 to 11 Volts with 12V absolute max3.3V default VCC and logic127 levels of DC drive strength.Controllable by I2C or TTL UART signalsDirection inversion on a per motor basisGlobal Drive enableExposed small heat sink shapeSeveral I2C addresses， default UART bauds availableAdjustable I2C Address：0x5D Default2x Qwiic ConnectorsDocumentsSchematicEagle FilesBoard DimensionsHookup GuideArduino LibraryPython ModuleGithub Hardware Repo

DescriptionThe SparkFun MicroMod Update Tool is built to interface with the MicroMod Asset Tracker Carrier Board and also makes it simple to communicate directly with the u-blox SARA-R510M8S module using u-blox's sophisticated m-center cellular evaluation software. If you're familiar with u-center， u-blox's GNSS evaluation software， you'll know how excellent their software is. m-center is every bit as good. Attach a USB-C cable and away you go!The Update Tool is not a full MicroMod Processor Board， it is much simpler than that. It has a CH340C USB-Serial converter on it which gives you full access to all eight pins of the SARA-R5's UART interface via the Asset Tracker's USB-C connector. Think of it as a bridge from USB to serial.The Update Tool features eight pairs of Plated Through Hole connections for the UART signals. You can use these to connect directly to the SARA UART using 3.3V signals if you want to. The split pads on the rear of the Tool can be opened to isolate the CH340C completely； the pins nearest the M.2 will link straight to the SARA UART.Get Started with the MicroMod Update Tool Hookup GuideFeaturesCH340C USB-Serial converterEight pairs of Plated Through Hole connections with split pad jumper links for：Serial Transmit(TX)Serial Receive(RX)Request To Send(RTS)Clear To Send(CTS)Data Terminal Ready(DTR)Data Set Ready(DSR)Ring Indicator(RI)Data Carrier Detect(DCD)LED indicator for：Power(3.3V)

DescriptionDo you want to replace a slider or a button on your art project or science experiment with a more interesting interface? This Capacitive Touch Slider is a "Qwiic" and easy way to add capacitive touch to your next project. With the board's built in touch pads， you can immediately start playing with the touch capabilities as three unique touch inputs or as a slider. You can also enable a touch input to act as a power button， customize the sensitivity for your own touch pads， and play with the interrupt alert LED. Utilizing our Qwiic system， no soldering is required to connect it to the rest of your system. However， we have broken out 0.1"-spaced pins in case you prefer to use a breadboard or create your own touch pads.On the front of the board， there is an arrow shape which contains three separate capacitive touch pads. We also broke out the capacitive touch sensor lines as plated through-holes on the top of the board. You can use these pins to connect to your own capacitive touch pads. The CS1 pin connects to the left pad， the CS2 pin connects to the middle pad， and the CS3 pin connects to the right pad.NOTE：The I2C address of the CAP1203 is 0x28 and is hardware defined. A multiplexer/Mux is required to communicate to multiple CAP1203 sensors on a single bus. If you need to use more than one CAP1203 sensor consider using the Qwiic Mux Breakout.The SparkFun Qwiic connect system is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.Get Started with the SparkFun Capacitive Touch Slider GuideFeaturesCapacitive Touch3 unique capacitive touch inputsFeaturesEmulated sliderPower button settingProgrammable sensitivityAutomatic recalibrationI2C Address：0x28Qwiic EnabledOperating RangeSupply Voltage：3.3V - 5V

DescriptionWho doesn't occasionally need power regulation? We certainly do， so we've designed the SparkFun BabyBuck Regulator Breakout to help us with just such a task. Featuring the AP63203 from Diodes Inc， this breakout board takes advantage of a 2A synchronous buck converter that has a wide input voltage range of 3.8V to 32V and fully integrated 125mΩ high-side power MOSFET/68mΩ lowside power MOSFET to provide high-efficiency step-down DC/DC conversion. All of this snuggled up in a low-profile， TSOT26 package that's integrated into a 0.4in by 0.5in board.Unlike it's sibling， the BabyBuck sacrifices power option flexibility for space. Don't worry， though， because you can still use the plated through holes for input and output power. With some simple right-angle headers， you'll be up and running in no time.Frequency Spread Spectrum(FSS)reduces EMI and a proprietary gate driver scheme resists switching node ringing without sacrificing MOSFET turn-on and turn-off times， which further erases high-frequency radiated EMI noise.Get Started with the SparkFun Buck Regulator Hookup GuideFeaturesLow-Profile FootprintVIN 3.8V to 32VVOUT 3.3VUp to 2A Continuous Output Current0.8V ± 1% Reference Voltage22μA Ultralow Quiescent CurrentSwitching Frequency - 1.1MHzSupports Pulse Frequency Modulation(PFM)Up to 80% Efficiency at 1mA Light LoadUp to 88% Efficiency at 5mA Light LoadFixed Output Voltage - 3.3VProprietary Gate Driver Design for Best EMI ReductionFrequency Spread Spectrum(FSS)to Reduce EMIPrecision Enable Threshold to Adjust UVLOProtection CircuitryOvervoltage ProtectionCycle-by-Cycle Peak Current LimitThermal Shutdown

DescriptionThe SparkFun Load Cell Amplifier is a small breakout board for the HX711 IC that allows you to easily read load cells to measure weight. By connecting the amplifier to your microcontroller you will be able to read the changes in the resistance of the load cell， and with some calibration you'll be able to get very accurate weight measurements. This can be handy for creating your own industrial scale， process control or simple presence detection.This version of the SparkFun Load Cell Amplifier features a few changes that you specifically asked for! We have separated the analog and digital supply， as well as added a 3.3uH inductor and a 0.1uF filter capacitor for digital supply. Need even more? Checkout the SparkFun Qwiic Scale. It has all the features of the HX711 but with additional library support， a true I2C interface， and no soldering required!The HX711 uses a two-wire interface(Clock and Data)for communication. Any microcontroller's GPIO pins should work， and numerous libraries have been written， making it easy to read data from the HX711. Check the hookup guide below for more information.Load cells use a four-wire Wheatstone bridge configuration to connect to the HX711. These are commonly colored RED， BLK， WHT， GRN and YLW. Each color corresponds to the conventional color coding of load cells：Red(Excitation+ or VCC)Black(Excitation- or GND)White(Amplifier-， Signal- or Output-)Green(A+， S+ or O+)Yellow(Shield)The YLW pin acts as an optional input that is not hooked up to the strain gauge but is utilized to ground and shield against outside EMI(electromagnetic interference). Please keep in mind that some load cells might have slight variations in color coding.Note：Special thanks to Bodge for supplying the Library for the HX711!Get Started with the HX711 Load Cell Amplifier GuideFeaturesOperation Voltage：2.7V--5VOperation Current：< 1.5mASelectable 10SPS or 80SPS output data rateSimultaneous 50 and 60Hz supply rejection

DescriptionThis straight bar load cell(sometimes called a strain gauge)can translate up to 5kg of pressure(force)into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to， and proportional of， the strain(e.g. pressure or force)applied to the bar. With this gauge you will be able to tell just how heavy an object is， if an object's weight changes over time， or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.Each straight bar load cell is made from an aluminum-alloy and is capable of reading a capacity of 5kg. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation. The color code on the wiring is as follows：red = Exc+， green = Sig+， black = Exc-， and white = Sig-. Additionally， these load cells offer an IP65 protection rating and features two M5 sized through-holes for mounting purposes.Get Started with the Load Cell GuideFeaturesCapacity：5kgMaterial：Aluminum-AlloyParallel Beam TypeIP65 Rating55mm×12.7mm×12.7mm， 200mm Wire

DescriptionCherry MX Keyswitches are top-of-the-line mechanical keyboard switches. They're satisfyingly "clicky"， reliable up to tens-of-millions of key presses， and a standard in gaming and programming keyboards across the globe. This 'blue' version Cherry MX Switch is favored by most due to its secondary internal actuator making it less likely to "double-tap." If you are looking for a noticeably audible and high-quality key switch， this is the perfect option for you!Most Cherry MX Switches - including this blue， MX1A-E1NW switch we carry - have a recess in their body designed to fit a small 3mm LED. Additionally， the weighting for this switch is just around 50cN(centi-Newtons).Note：If you are looking for an easy way to incorporate this switch to your project， be sure to check out or breakout board! CLICK HERE!Get Started with the Cherry MX Switch GuideFeaturesContact Form：SPSTCurrent Rating：10mAVoltage Rating：12VSwitch Weighting：50cN3mm LED Slot

DescriptionThis is a 10-pack of wires that are pre-terminated with an alligator clip on one end and a female header on the other. Alligator clips are a staple item for any workbench or makerspace， and with these cables you will be able to easily incorporate those clips into a breadboard， development platform or anything else to which you would normally be able to attach a hookup wire.Each alligator clip with female header cable has a wire length of 30cm(that's a little less than 1ft)and a port that easily accepts a standard 0.1" connector.

DescriptionAn adjustable potentiometer can open up many interesting user interfaces. With this rotary potentiometer just turn the dial and the resistance changes. This potentiometer from Bourns has a 1/4" metal knurled shaft diameter， solder lug terminals， no detents， and has a 100K linear taper.Connect VCC to an outer pin， GND to the other， and the center pin will have a voltage that varies from 0 to VCC depending on the rotation of the pot. Hook the center pin to an ADC on a microcontroller and get a variable input from the user!

DescriptionThe SparkFun Pulse Oximeter and Heart Rate Sensor is an I2C based biometric sensor， utilizing two chips from Maxim Integrated：the MAX32664 Biometric Sensor Hub and the MAX30101 Pulse Oximetry and Heart Rate Module. While the latter does all the sensing， the former is an incredibly small and fast Cortex M4 processor that handles all of the algorithmic calculations， digital filtering， pressure/position compensation， advanced R-wave detection， and automatic gain control. We've provided a Qwiic connector to easily connect to the I2C data lines but you will also need to connect to two additional lines. This board is very small， measuring at 1in×0.5in(25.4mm×12.7mm)， which means it will fit nicely on your finger without all the bulk.The MAX30101 does all the sensing by utilizing its internal LEDs to bounce light off the arteries and arterioles in your finger's subcutaneous layer and sensing how much light is absorbed with its photodetectors. This is known as photoplethysmography. This data is passed onto and analyzed by the MAX32664 which applies its algorithms to determine heart rate and blood oxygen saturation(SpO2). SpO2 results are reported as the percentage of hemoglobin that is saturated with oxygen. It also provides useful information such as the sensor's confidence in its reporting as well as a handy finger detection data point. To get the most out of the sensor we've written an Arduino Library to make it easy to adjust all the possible configurations.The SparkFun Qwiic connect system is an ecosystem of I2C sensors， actuators， shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch， 4-pin JST connector. This reduces the amount of required PCB space， and polarized connections mean you can't hook it up wrong.Get Started with the Pulse Oximeter and Heart Rate Monitor Hookup GuideFeaturesSparkFun Pulse Oximeter and Heart Rate SensorMAX30101 and MAX32664 sensor and sensor hubQwiic connectors for power and I2C interfaceI2C Address：0x55MAX30101 - Pulse Oximeter and Heart-Rate SensorHeart-Rate Monitor and Pulse Oximeter Sensor in LED Reflective SolutionIntegrated Cover Glass for Optimal， Robust PerformanceUltra-Low Power Operation for Mobile DevicesFast Data Output CapabilityRobust Motion Artifact ResilienceMAX32664 - Ultra-Low Power Biometric Sensor HubBiometric Sensor Hub SolutionFinger-Based Algorithms Measure Pulse Heart Rate and Pulse Blood Oxygenation Saturation(SpO2)Both Raw and processed data are availableBasic Peripheral mix optimizes size and performance

DescriptionThis single disc load cell(sometimes called a strain gauge)can translate up to 50kg of pressure(force)into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to， and proportional of， the strain(e.g. pressure or force)applied to the disc. With this gauge you will be able to tell just how heavy an object is， if an object's weight changes over time， or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.Disc load cells are a bit easier to mount than bar-style load cells， making them more straightforward to implement into a design.Each load cell is made from an steel-alloy and is capable of reading a capacity of 50kg. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation. The color code on the wiring is as follows：red = E+， green = O+， black = E-， and white = O-. Additionally， these load cells offer an IP66 protection rating.Get Started with the Load Cell GuideFeatures20mm×11mm， 2000mm Wire

DescriptionThe Teensy is an amazing and compact development platform in breadboard friendly form factor， but what if you could incorporate it into the Arduino architecture? The Teensy Arduino Shield Adapter allows you to attach your Teensy and utilize your favorite Arduino shields without the requirement of breadboard or any complicated wiring. Needless to say， the Teensy Arduino Shield Adapter is useful tool for upgrading all of your existing Arduino projects to more powerful controller!As we stated before， the Teensy Arduino Shield Adapter provides basic Arduino compatibility with your run-of-the-mill shield but there are few other fun features that we've added on， as well. These features include Real Time Clock(RTC)battery， JST battery connector， 4-12V barrel jack connector， an ICSP header， and more. Because this board is simply an adapter， there is no special programming required to start working with the adapter. You will， however， need to program the Teensy for any Arduino shield you'd like to work with.While the adapter design can fit the Teensy LC footprint， it has been designed to fully utilize the features of the Teensy 3.1. Not all of the features available on the adapter are compatible with the LC so please be sure to check the Hookup Guide in theDocumentssection below to ensure functionality for your project. Please keep in mind that this adapter may be incompatible with some 5V Arduino shields. Please check our hookup guide for more information.Note：The Teensy Arduino Shield Adapter comes as kit and will need to be soldered together.Note：Due to the requirements of shipping the batteries in this kit， orders may take longer to process and therefore do not qualify for same-day shipping. Additionally， these batteries can not be shipped via Ground or Economy methods to Alaska or Hawaii. Sorry for any inconvenience this may cause.FeaturesArduino R3 InterfaceReal Time Clock BatteryJST Battery ConnectorBarrel JackI2C JumpersICSP HeaderDAC Pin Header

DescriptionThe MQ-2 is a smoke and combustible gas sensor from Winsen. It can detect flammable gas in a range of 300 - 10000ppm. It's most common use is domestic gas leakage alarms and detectors with a high sensitivity to propane and smoke. The sensing material is SNO2 for which the conductivity is lower in clean environments and higher when smoke or flammable gas is present. A simple circuit makes measuring this change in conductivity and turning it into data fairly straight-forward， but does require some calibration.For easy Solderability； use our Gas Sensor Breakout Board.

DescriptionThis is the SparkFun RFM69 Breakout， a small piece of tech that breaks out all the pins available on the RFM69HCW module as well as making the transceiver easy to use. The RFM69HCW is an inexpensive and versatile radio module that operates in the unlicensed ISM(Industry， Science and Medicine)radio band. It's perfect for building inexpensive short-range wireless networks of sensors and actuators for home automation， citizen science and more.This RFM69HCW operates on the 434MHz frequency and is capable of transmitting at up to 100mW and up to 300kbps， but you can change both of those values to fit your application. For example， you can maximize range by increasing the transmit power and reducing the data rate， or you can reduce both for short-range sensor networks that sip battery power. At full power and with simple wire antennas， we can get messages from one side of a large office building to the other through numerous internal walls. In open air you can reach 500 meters or more. With more complex antennas and modulation schemes， similar parts have successfully transmitted from space to the ground(by very smart amateur radio enthusiasts； your mileage may vary)!The RFM69HCW uses an SPI(Serial Peripheral Interface)to communicate with a host microcontroller， and several good Arduino libraries are available. It supports up to 256 networks of 255 nodes per network， features AES encryption to keep your data private， and transmits data packets up to 66 bytes long.SparkFun sells two versions of the RFM69HCW：a 915MHz version and this 434MHz version. Although the ISM band is license-free， the band itself is different in different areas. Very roughly， 915MHz is for use in the Americas， and the 434MHz version is for use in Europe， Asia and Africa. Check your local regulations for other areas.Get Started with the RFM69HCW Hookup GuideFeaturesTransmit power：-18dBm(0.016mW)to +20dBm(100mW)in 1dBm stepsReceive sensitivity：down to -120dBm at 1.2kbpsModulation types：FSK GFSK MSK GMSK OOKBit rates(FSK)：1.2kbps to 300kbpsVoltage range：1.8V to 3.6VCurrent consumption：0.1uA sleep， 1.25mA standby， 16mA receive， 130mA transmit(max)Encryption：AES 128-bit(optional)Packet buffer(FIFO)：66 bytes0.8"×1.1"

DescriptionThe gator：log is the perfect data logging tool for your next experiment. With the automation of the data collection process， gone are the days of rushing around with a pen and composition notebook to simultaneously record data and your observations. Now， you only need to sit back and observe your experiment.The gator：log allows a student(s)to focus more on what is happening in the experiment than watching a thermometer or sensor readout. Additionally， a micro：bit can still be used to provide a graphical display for observing changes in data， when a sensor readout is required. If tied in conjunction with the gator：RTC， stop watches on time based experiments can become a thing of the past too(with the added benefit of more accurate timing results)!The micro：bit is a pocket-sized computer that lets you get creative with digital technology. Between the micro：bit and our shield-like bit boards you can do almost anything while coding， customizing and controlling your micro：bit from almost anywhere! You can use your micro：bit for all sorts of unique creations， from robots to musical instruments and more. At half the size of a credit card， this versatile board has vast potential!Get Started with the SparkFun gator：log Hookup GuideFeaturesATmega328P microcontrollerμSD(micro SD)card slot for μSD card for data storageTwo status indicator LEDsSerial connection via RX and TX padsGND and 3V3 pads for 3.3V power connection

DescriptionThe Lock Stop is a low profile， high-quality stainless steel stop that can be used on the Nomad or the Shapeoko in conjunction with the Tiger Claw(Standard or Compact)， or Gator Tooth Clamps.These hard stops help secure your job with a tight grip and serrated face， no matter what you're making.
