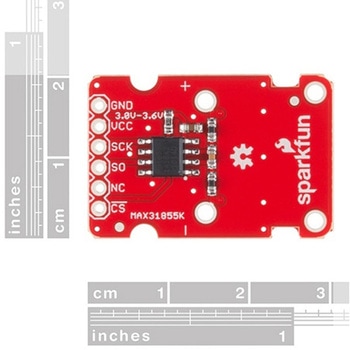

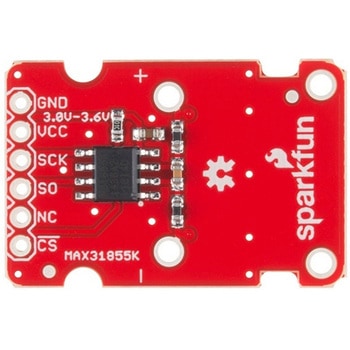

SparkFun Thermocouple Breakout - MAX31855K

Description
The SparkFun MAX31855K Thermocouple Breakout is a simple 14-bit resolution， SPI-compatible， serial interface thermocouple digitizer that makes reading a wide range of temperatures possible. A thermocouple works by taking two wires made of dissimilar metals， connecting them at the two ends， and making a temperature gradient between one end and the other(a 'hot' end and a 'cold' one). Once this is achieved， a voltage potential is formed and current flows. The SparkFun Thermocouple Breakout takes a standard Type-K thermocouple in one end， digitizes the temperature measured and sends that data out the other end via a SPI interface， thereby interpreting the data and translating it for you to read!
With the SparkFun Thermocouple Breakout， the thermocouple's hot junction can be read from -200℃ to +700℃ with an accuracy of ±2℃ while the cold junction， inside the MAX31855K， can only range from -20℃ to +85℃ while maintaining ±2℃ accuracy. The MAX31855K constantly measures the temperature of the cold junction using an internal temperature-sensing diode. The MAX31855K requires a power source from +3.0V to +3.6V(+3.0V nominal)and only draws 1.5mA maximum.
The Thermocouple Breakout is designed to accept a standard thermocouple connector， for convenience and compatibility with probes you may already own. These connectors aren't necessary， and you could solder a thermocouple directly into the through-holes labeled '+' and '-'. If you decide to solder the thermocouple directly to the breakout board， it is recommended that the thermocouple be mounted for strain relief to avoid breaking the thin wires. Notches for a zip-tie or wire wrapping have been provided in the PCB opposite the header for this purpose.
Features
14-bit Resolution
SPI-Compatible， Serial Interface
-200℃ to +700℃ Temperature Reading with ±2℃ Accuracy
3.0V to 3.6V(+3.0V nominal)Required
Accepts Type-K Thermocouple
