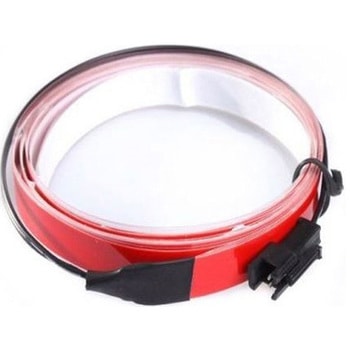

EL Tape 1m

EL Tape 1m Seeed Studio EL Tape 1m Seeed Studio

Features
No heat loss
Bendable、and able to tie into any shape
Can be cut to any length
High efficiency(97%)
Does not emit UV light
Soft light that is not harsh on the eyes
Waterproof、except the connecter
The higher voltage EL USB inverter is recommended because it produces a stronger light
Specifications
Length:1 m
Width:15 mm(including the plastic sheath)
Thickness:0.4 mm -1.0 mm
Operating Voltage:100 V ~ 220 V Optimum:120 V
Operating Frequency:50 Hz ~ 5000 Hz Optimum:1500 Hz - 2000 Hz
Static Capacitance:6 nf/m(20 ℃、the RH <80%)
Brightness:30 cd/m2 ~ 126 cd/m2(at 120 V、200 Hz ~ 2000 Hz)
Power:108 mw/m ~ 1032 mw/m(at 120 V、200 Hz ~ 2000 Hz)
Life:approximately 8000 hours
Operating Temperature/Humidity:-10 ℃ ~ + 60 ℃/RH < 90%
Storage Temperature/Humidity:-10 ℃ ~ + 60 ℃/RH < 65%

仕様●項目1:(機能ボード)●項目8:テープEL アズワン品番67-0461-98 内容量1個
お気に入りに追加
1件中 1~1件 各品番毎の詳細は注文コードをクリックしてください
注文コード 参考基準価格(税別) 販売価格(税別) 販売価格(税込) 出荷目安 数量
64256354 104990044
1,610
1,598
1,758 (税込)
33日以内出荷

返品不可
