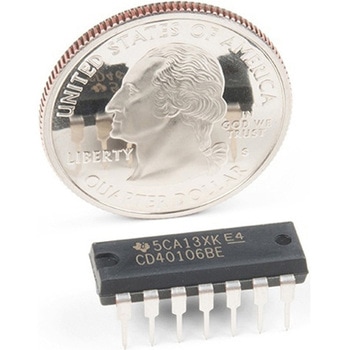

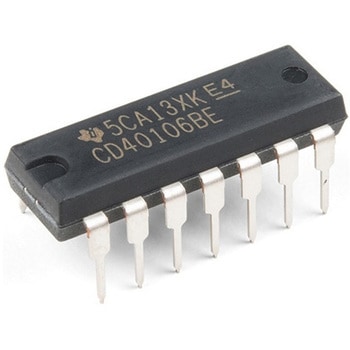

Schmitt Trigger - CD40106B

Schmitt Trigger - CD40106B - SPARKFUNSchmitt Trigger - CD40106B - SPARKFUN

Description
The CD40106BE consists of six Schmitt-trigger circuits. Each circuit functions as an inverter with Schmitt-trigger action on the input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage(VP)and the negative-going voltage(VN)is defined as hysteresis voltage(VH).
Features
Schmitt trigger action with no external components
Hysteresis voltage typ. at 0.9V at VDD = 5V, 2.3V at VDD = 10V, and 3.5V at VDD = 15V
Noise immunity greater than 50%
No limit on input rise and fall times
Standardised, symmetrical output characteristics
100% tested for quiescent current at 20sV
Maximum input current of 1μA at 18 V over full package temperature range; 100nA at 18V and 25℃
Low VDD to VSS current during slow input ramp

アズワン品番67-0420-89内容量1個
1件中 11各品番毎の詳細は注文コードをクリックしてください
注文コード
品番
参考基準価格 (税別)販売価格(税別)販売価格(税込)
出荷目安
数量
69726215COM-13952
710
709
780(税込)
33日以内出荷
返品不可
各品番毎の詳細は注文コードをクリックしてください
