Zio Qwiic OLED Display 1.5inch, 128x128

Zio Qwiic OLED Display 1.5inch, 128x128 SPARKFUN Zio Qwiic OLED Display 1.5inch, 128x128 SPARKFUN Zio Qwiic OLED Display 1.5inch, 128x128 SPARKFUN

Description

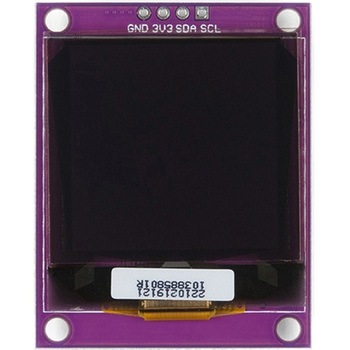

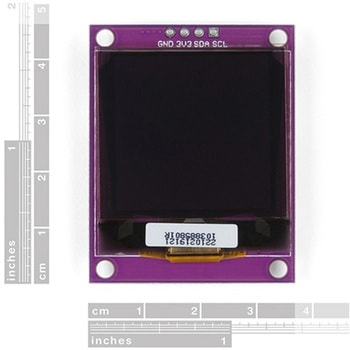

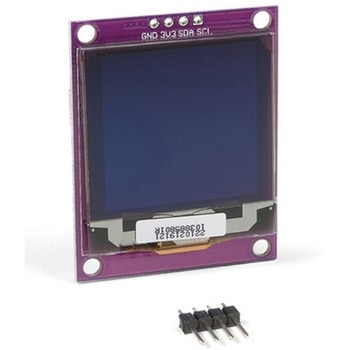

Here is the Zio Qwiic 1.5inch 128×128 pixels OLED display module. It can display a maximum of 16 lines of text content, and display pictures and animation on its 1.5-inch display. On the backside, there are two Qwiic connectors. With the Qwiic connect system no soldering is required to connect it to the rest of your system.
Fit for use in small embedded systems, and also suitable for any projects that require displays of any kind, this screen is a must-have for Makers to include in even as one of their wearable DIY projects.
The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.
Features
Resolution:128×128 pixels
Display IC:SSD1327
I2C address:0x78, 0x7A(Default:0x78)
Display Color:White

アズワン品番67-0424-98 内容量1個
お気に入りに追加
1件中 1~1件 各品番毎の詳細は注文コードをクリックしてください
注文コード 参考基準価格(税別) 販売価格(税別) 販売価格(税込) 出荷目安 数量
69739287 LCD-15890
5,880
5,798
6,378 (税込)
33日以内出荷

返品不可
