Sensata Cynergy3 フロート スイッチ ポリプロピレン

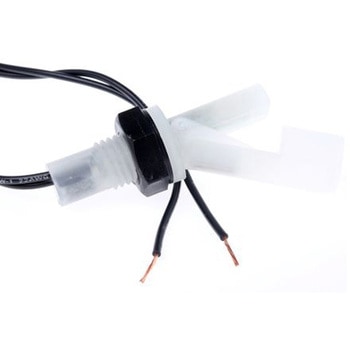

This float switch is designed for internal fitting inside a tank. The float switch is fitted in a 16.5 mm dia. hole in the tank from the inside and secured by a nylon nut on the outsidePP material Internal mounting 100cm PVC flying leads WRAS approvedProduct Application InformationThis PP float switch is most suitable for use in water, detergents, vegetable oils, some organic and inorganic chemicals. Typical applications include vending machines, commercial washing machines and evaporator units.
仕様
検出タイプ = フロート
実装タイプ = 横型
スイッチ出力 = NO / NC
本体材質 = ポリプロピレン
ケーブル長 = 1m
動作温度 Min = -20℃
動作温度 Max = +100℃
最大AC電圧 = 300V
最大DC電圧 = 300V
電流 Max = 0.6 A
ガスケット材 = ニトリル
シリーズ = RSF40
代表規格 = WRAS
RoHS指令(10物質対応)対応
内容量1個
実装タイプ = 横型
スイッチ出力 = NO / NC
本体材質 = ポリプロピレン
ケーブル長 = 1m
動作温度 Min = -20℃
動作温度 Max = +100℃
最大AC電圧 = 300V
最大DC電圧 = 300V
電流 Max = 0.6 A
ガスケット材 = ニトリル
シリーズ = RSF40
代表規格 = WRAS
