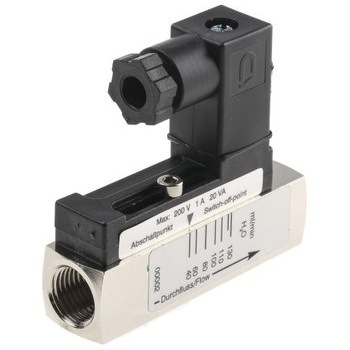

内容量1個仕様監視対象：液体検出タイプ：センサ / スイッチ、インジケータ付き最小流量：20 mL/min最大流量：140 mL/min電源電圧：200 V acパイプの直径範囲：1/4 インチ接続タイプ：1/4 BSP最大圧力：300バール素材：真鍮製最高対象温度：+100℃動作温度 Max：+120℃許容電流値：1 AIf used on air system， life expectancy of the unit is greatly reduced due to instantaneous pressure loss on the piston， which has no damping. Piston Flow Switch. Monitoring of low flow rates of liquids. A piston equipped with a magnet is displaced by the flow， this action is proportional to the flow rate against a supporting spring. A reed switch on the outside is positioned at the desired point within the control range. A signal is generated when the actual flow rate value is above or below the set value. High pressure and temperature capabilities Scaled switch point setting Low flow switching capabilities Installation independent of position Material Brass注文コード46916888品番510-0559
