仕様
コンタクトのコンフィギュレーション：SPST-NO
ターミナルタイプ：スルーホール
寸法：11.40 x 11.40 x 4.8mm
コンタクト定格電流：50 mA @ 42 V dc
操作力：2.2 N
高さ：4.8mm

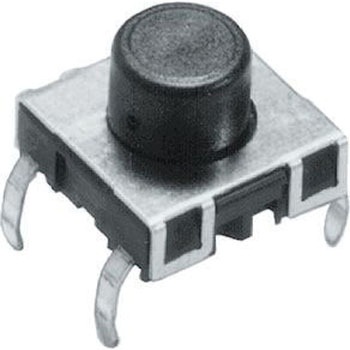

Schurter THT Tact Switches - PMS Series. Through hole mounting tact switches suitable for Wave soldering. The Schurter PMS series of tact switches are available in a choice of IP40 or IP67 protection， the IP67 versions have the benefit of being able to be exposed to soldering and cleaning processes. These tact switches require a minimum spacing of 12.7mm to 15mm， have a miniature push button with a tactile response and an actuation force of 1.8 ±0.4N for IP40 versions and 2.2 ±0.4N for IP67 versions. Momentary switching action Maximum switching voltage: 30Vac， 42Vdc Maximum switching current: 50mA Rated breaking capacity: 0.12W Contact material: Gold Life: >1 x 10 6 cycles Operating temperature: -40 to + 85℃
RoHS指令(10物質対応)対応
