商品レビューを投稿する内容量1箱(100個)仕様コンタクトのコンフィギュレーション：SPST-NO
ターミナルタイプ：表面実装
アクチュエータ長さ：1.3mm
寸法：11.40 x 11.40 x 4.95mm
コンタクト定格電流：50 mA @ 42 V dc
操作力：2.2 N
機械的寿命：1000000Cycles

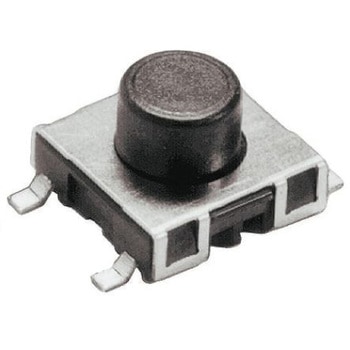

Schurter SMT Tact Switches - SMS Series. Surface mount tact switches perfect for automatic mounting and suitable for SMT IR-Reflow soldering. These tact switches are available in a choice of IP40 or IP67 protection， the IP67 versions have the benefit of being able to be exposed to soldering and cleaning processes. Further options include Gullwing and J terminal versions. The J terminal types of tact switch can be lined up with a spacing of 12.7mm in one direction and >13.5mm in the other. The Gullwing terminal types can be arranged with a spacing of 12.7mm in one direction and 17.5mm in the other direction. Schurter SMS series of tact switches have a miniature push button with a tactile response and an actuation force of 1.8 ±0.4N for IP40 versions and 2.2 ±0.4N for IP67 versions. Momentary switching action Maximum switching voltage: 30Vac， 42Vdc Maximum switching current: 50mA Rated breaking capacity: 0.12W Contact material: Gold Life: >1 x 10 6 cycles Operating temperature: -40 to + 85℃注文コード47105206品番1241.1606.11
大変申し訳ございませんが、この商品は取り扱いを終了いたしました。
