内容量1個

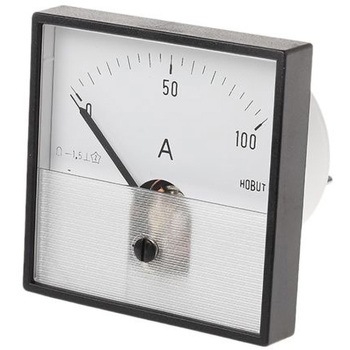

仕様最大値：0/100A For Shunt 75mV 電流タイプ：DC 可動エレメント：可動コイル カットアウト高さ：72mm カットアウト幅：72mm 深さ：38.5mm メータ確度：クラス1.5 最小温度：-25℃ 最大温度：-40℃ 測定範囲：0/100A For Shunt 75mV Horizontal Scale DC Meters. Accuracy class 1.5， to BS89/IEC51 Ammeter till 50A are for use without shunt Ammeter 100A (stock no. 315-9521 315-9521 needs 100A shunt (stock no. 313-788 313-788 Ammeter 300A (stock no. 315-9537 315-9537 needs 300A shunt (stock no. 313-794 313-794 Integral scales Flame retardant case to UL94V0 Full scale defection to 75mV Operating temperature range -25 to +40° 72mm high 72mm wide， panel cut-out 56mm diameter (suitable cutters stock nos. 511-487 511-487 and 615-113 615-113 U-clamp and pin M3 fixing methods supplied including anti-rotation pin
注文コード49086608
品番PD721MCS75MV/2-001 -100A
