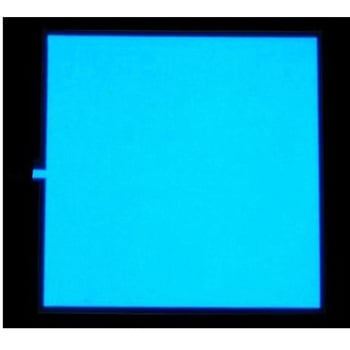

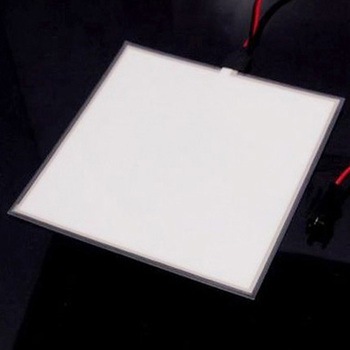

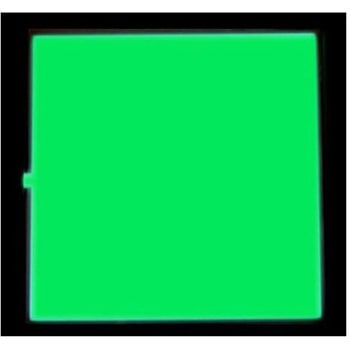

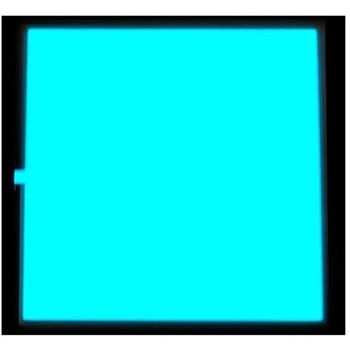

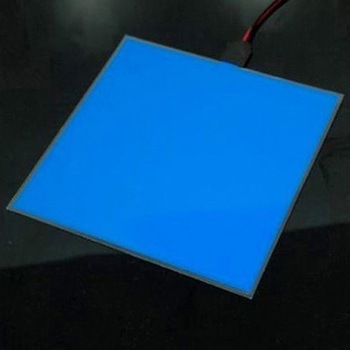

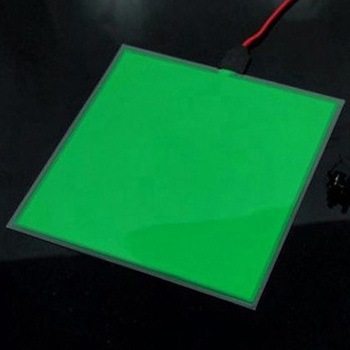

EL Panel 10cm×10cm

A big sister to our EL tape、the EL panel is a similar item that comes in a 10 cm square format. You'll notice when working with it that it shares some of the same features as the EL tape：flexibility、portability、and a beautiful soft glow. It can be used as backlight for an illuminated device、or a platform for paper-cutting artwork. Post it on a flat surface or wrap it around a curved surface. Use it in a project as a lighting element or attach it to a shirt. The options are amazing.
You need an inverter to drive the EL light、to control it、please pick up an EL Shield.
Features
No heat loss
Great backlight material
High efficiency(97%)
Does not emit UV light
Soft light that is not harsh on the eyes
Waterproof、except the connecter
The higher voltage EL USB inverter is recommended because it produces a stronger light
Able to be cut into other shape
Specifications
Dimension：10 cm×10 cm
Thickness：0.4 mm - 1.0 mm
Operating Voltage：100 V～ 220 V Optimum：120 V
Operating Frequency：50 Hz～ 5000 Hz Optimum：1500 Hz - 2000 Hz
Static Capacitance：6 nf/m(20 ° C、the RH <80%)
Brightness：30 cd/m2 ～ 126 cd/m2(at 120 V、200 Hz ～ 2000 Hz)
Power：108 mw m ～ 1032 mw/m(at 120 V、200 Hz ～ 2000 Hz)
Life：approximately 8000 hours
Operating Temperature/Humidity：-10 ℃ ～ + 60 ℃/RH < 90%
Storage Temperature/Humidity：-10 ℃ ～ + 60 ℃/RH < 65%
