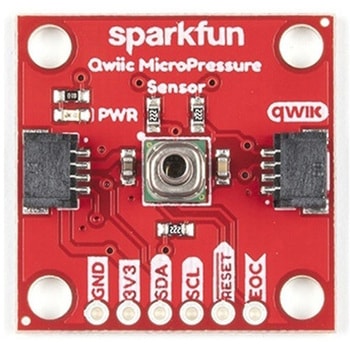

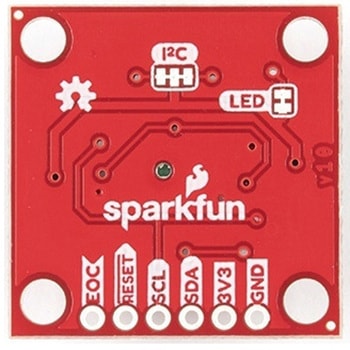

SparkFun Qwiic MicroPressure Sensor

SparkFun Qwiic MicroPressure Sensor - SPARKFUNSparkFun Qwiic MicroPressure Sensor - SPARKFUNSparkFun Qwiic MicroPressure Sensor - SPARKFUN

Description
The SparkFun Qwiic MicroPressure Sensor is a miniature breakout equipped with Honeywell's 25psi piezoresistive silicon pressure sensor. This MicroPressure Sensor offers a calibrated and compensated pressure sensing range of 60mbar to 2.5bar, easy to read 24 bit digital I2C output, and can be calibrated and compensated over a specific temperature range for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrated Circuit(ASIC). With its ultra-low power consumption and Qwiic ports, you've got yourself a power packed little sensor!
Each Qwiic MicroPressure Sensor has a calibrated pressure sensing range from 1-25psi and a power consumption rate as low as 0.01mW typ. average power, 1Hz measurement frequency for ultimate portability. Used in multiple medical(blood pressure monitoring, negative pressure wound therapy), industrial(air braking systems, gas and water meters), and consumer uses(coffee machines, humidifiers, air beds, washing machines, dishwashers), the SparkFun Qwiic MicroPressure Sensor is a great addition to the SparkFun Qwiic ecosystem!
The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.
Get Started with the SparkFun Qwiic MicroPressure Hookup Guide
Features
Pressure Type:Absolute
Operating Pressure:25psi(172.37kPa)
I2C Address:0x18
Accuracy:±0.25%
Voltage - Supply:1.8V-3.6V
Port Size:Male - 0.1"(2.5mm)Tube
Port Style:Barbless
Maximum Pressure:60psi(413.69kPa)
Compatible with a variety of liquid media
2x Qwiic Connectors

アズワン品番67-0427-25内容量1個
1件中 11各品番毎の詳細は注文コードをクリックしてください
注文コード
品番
参考基準価格 (税別)販売価格(税別)販売価格(税込)
出荷目安
数量
64171548SEN-16476
23,100
22,980
25,278(税込)
欠品中
返品不可
出荷予定:2026年2月上旬
