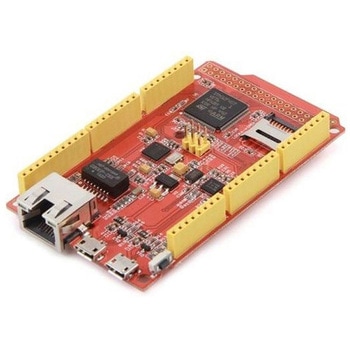

Arch Max v1.1

The Arch Max v1.1 is a mbed enabled development board specially for rapid prototyping. It's based on an STM32F407VET6 microcontroller with an ARM Cortex-M4F core running at 168MHz. It provides serial wire debug](SWD)debug、drag-and-drop programming and USB serial communication. It provides a complete and straightforward development document for your projects.
Features
mbed enabled
Online development tools(include IDE)
Complete and straightforward C/C++ SDK
Massive examples and tutorials
High-performance STM32F407VET6
ARM Cortex-M4 MCU with FPU of 168MHz
512 KB Flash memory、192 KB RAM
On-board programming and debug
Drag-and-drop programming
USB serial communication
SWD debug with GDB+ pyOCD/OpenOCD、Keil or IAR
Arduino form factor、compatible with lots of shields
Built-in Ethernet port、USB and SD card slot for Internet connectivity and data exchange
Parameter
Work Voltage：5V
Microcontroller：STM32F407VET6
Flash Memory：512kB
RAM：192kB
UART：4
I2C：3
SPI：3
CAN：2
SDIO：1
Camera interface：1
Eth：1
ADC Channels：8
I/O pins：40
Digital I/O Max Input Voltage：5.0V
Diameter：90mm×44mm
