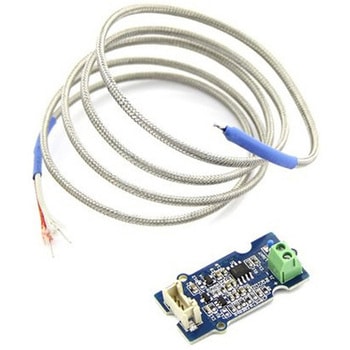

Grove - High Temperature Sensor

Description
Thermocouples are very sensitive， requiring a good amplifier with a cold - compensation reference. The Grove - Temperature Sensor USES a K type thermocouple Temperature detection， with a Thermistor to detect The ambient Temperature as Temperature compensation. The detectable range of this Sensor is -50-600℃ ， and The accuracy is ±(2.0% + 2℃).
Specifications
Voltage：3.3 ～ 5V
Max power rating at 25℃：300mW
Operating temperature range：-40 ～ +125 ℃
The temperature measurement range is(-50 ～ +600℃)
Amplifier output voltage range(0 ～ 3.3 V)mv
Cold junction compensation(environment temperature measurement)
Thermocouple temperature measurement accuracy of + / - 2.0%(+ 2 ℃)
Package Include：Grove - High Temperature Sensor x1
Thermocouple Temperature Sensor x1
24AWG Grove Cable - 4P-4P-2.0-200mm x1
