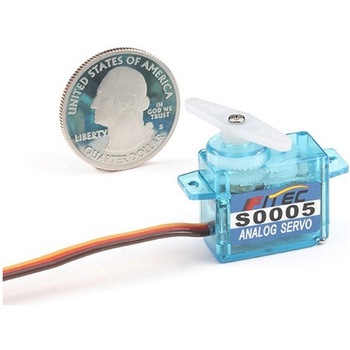

Analog Servo - FeeTech S0005 Sub-Micro Size

Analog Servo - FeeTech S0005 Sub-Micro Size SPARKFUN Analog Servo - FeeTech S0005 Sub-Micro Size SPARKFUN

Description
Servos can be found everywhere from heavy machinery, to power steering in vehicles, to robotics and a wide variety of electronics. So there are typically a plethora of options to choose frob but when you need a 120° rotation analog servo motor, this is the one! This servo is able to take in 6V and deliver 13.90 oz-in. of maximum torque at 0.12 sec/60°
A standard 3-pin power and control cable is attached. Check out the 'Includes' tab for all the hardware that is included.
Features
Voltage:4.8-6.0 Volts
Torque:11.10/13.90 oz-in.(4.8/6.0V)
Speed:0.14/0.12 sec/60°(4.8/6.0V)
Rotation:120°
Motor Type:Brushed
Gear Type:Plastic
Pulse Width:900-2100 μs
Wire Length:170mm
Weight:5.0g

アズワン品番67-0426-43 内容量1個
お気に入りに追加
1件中 1~1件 各品番毎の詳細は注文コードをクリックしてください
注文コード 参考基準価格(税別) 販売価格(税別) 販売価格(税込) 出荷目安 数量
69080499 ROB-18285
1,420
1,398
1,538 (税込)
33日以内出荷

返品不可
