USB to TTL Serial Cable 5V VCC

Description
This is a USB to TTL Serial Cable which allows for a simple way to connect TTL interface devices to USB. The I/O pins of this cable are configured to operate at 3.3V specifically with a Raspberry Pi with each serial pin broken apart. Thanks to its separated pins， this cable is a perfect candidate for powering， connecting， and accessing the login and debug console on an older-version Raspberry Pi.

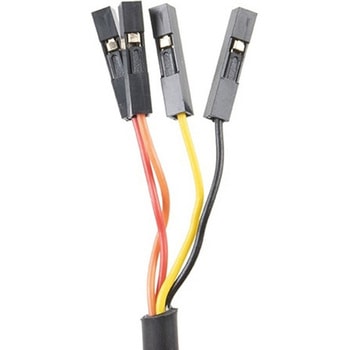

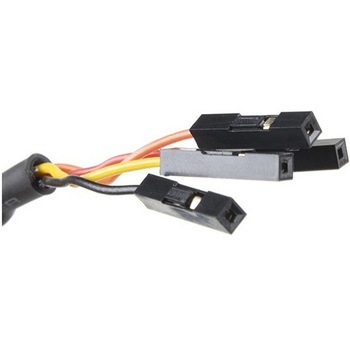

The FTDI cable is designed around an FT232， which is housed in a USB-A connector. The other side of the cable is terminated with a separated 4-pin connector with the following pinout：RX(Yellow)， TX(Orange)， VCC(5V)(Red)， and GND(Black). A link to the FTDI drivers can be found in the
Documents
section above.
Note：
Please be aware that while the I/O pins in this cableoperate at 3.3V， the VCC pin is 5V. The VCC pin is NOT 3.3V like theI/O pins.
