Multi-Band Magnetic MountAntenna-5m

Description

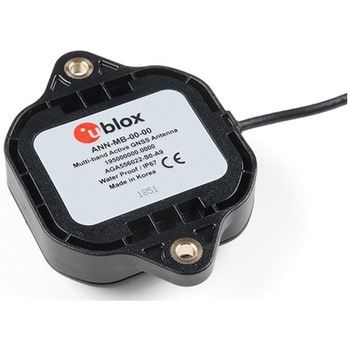

The ANN-MB-00 GNSS multiband antenna is extremely unique from other GNSS/GPS antennas in that it is designed to receive both the classic L1 GPS band and the newly launched(started in 2005)L2 GPS band. Additionally， the ANN-MB-00 from u-blox is extremely well built with both a magnetic base with mounting holes for additional anchoring for the harshest environments.
Designed for the latest u-blox F9 platform--including the ZED-F9P module--it provides a fast， easy， and reliable multi-band antenna solution but can be used with any GPS/GNSS receiver that can benefit from the L1/L2 dual reception.
This antenna supports GPS， GLONASS， Galileo， and BeiDou and includes a high-performance multi-band RHCP dual-feed patch antenna element， a built-in high-gain LNA with SAW pre-filtering， and a 5m SMA cable.
Features
Frequency：L1 Band：1559-1606MHz
L2/L5 Band：1197-1249MHz
Peak gain(over 15cm diameter ground plane)：L1 Band：3.5dBic
L2/L5 Band：0-2.0dBic
VSWR：max. 2
Bandwidth：min. 200MHz
Impedance：50 Ohm
Polarization RHCP
Supports GPS， GLONASS， Galileo， and BeiDou

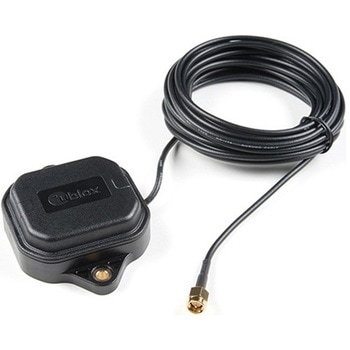

5m coaxial cable with SMA connector
Magnetic base， fixed installation option(screw mount， 2×M4 screws)

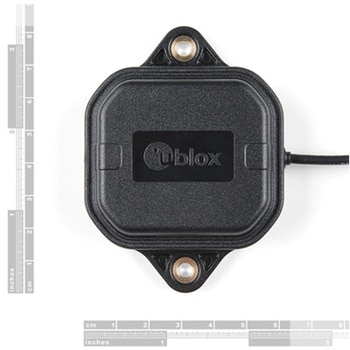

Dimensions：60.0mm×82.0mm×22.5mm
Weight：175g(including cable)
